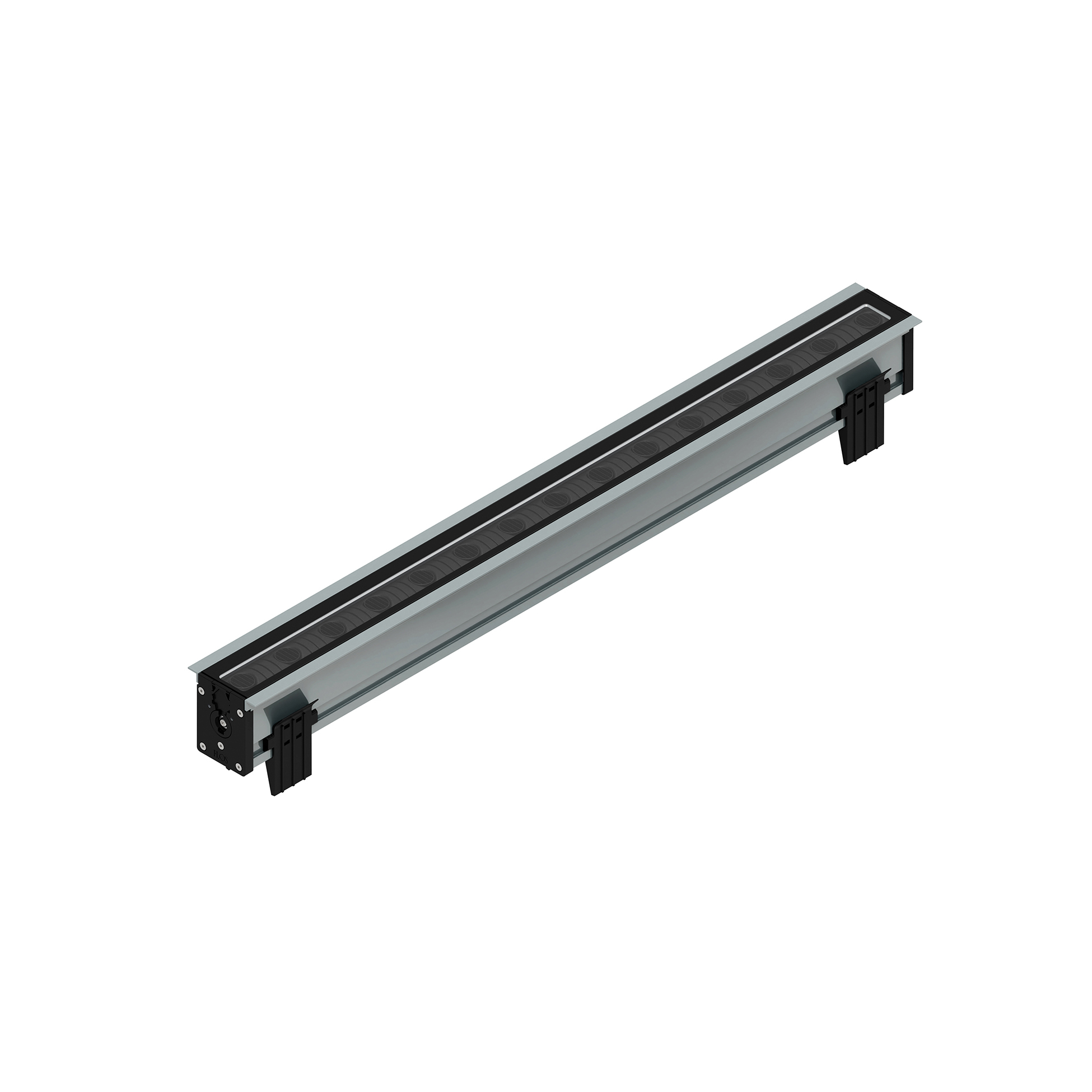

F017G3LD006 GreyIngraze Adjustable Frame + Linear Louvre L 900
Designed by FLOS Outdoor, 2023
High-power LED source included and rear lenses. 1-10V or DALI on-off and dimmable 220-240V power supply. Compulsory installation box to be ordered separately. Pre-wired with H2O Stop quick connectors, lug/socket included. ACT (Anti-Corrosion Treatment) upon request.
1366lm - 3000K - CRI> 80 - Beam° 13
Technical Drawing
Main specifications
EAN
8054793283104
Mounting
In-ground
Environments
Outdoor wet location
LED type
Power LED
System power (W)
26
Lumen Output (lm)
1366
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
13
Beam angle C90-270 (º)
40
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Power supply type
Dimmable DALI 2
Physical
Colour
Grey
Orientation
Adjustable
Length (mm)
900
Net weight (kg)
5.58
Package height (mm)
230
Package width (mm)
170
Package length (mm)
972
Package volume (m3)
0.04
IP internal
66
IP external
67
Static load (kg)
2500.000
Drive Over
Yes
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
