Ingraze
F017B2QA033Anthracite

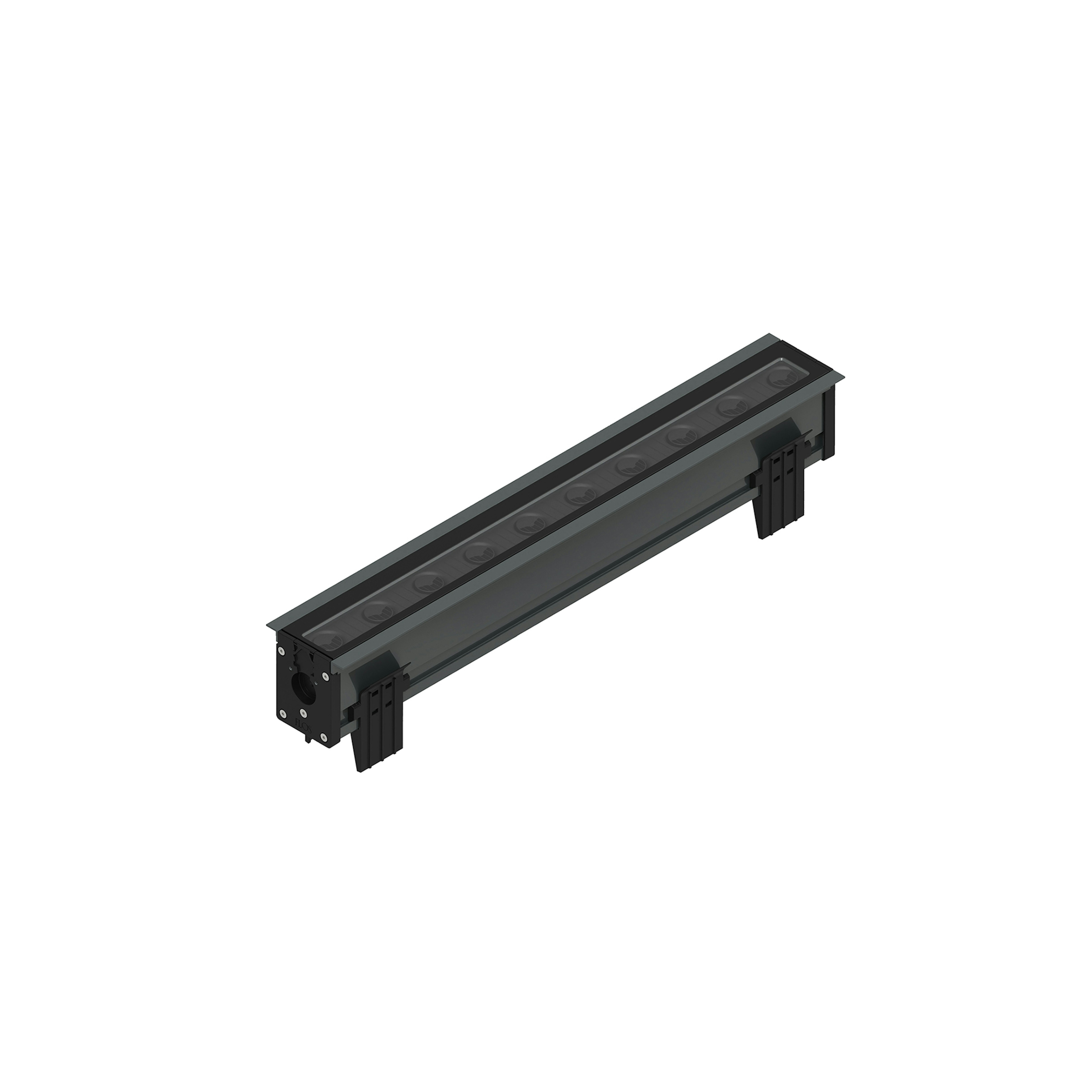

Ingraze Fixed Frame + Asymmetric Louvre L 600

High-power LED source included and rear lenses. 1-10V or DALI on-off and dimmable 220-240V power supply. Compulsory installation box to be ordered separately. Pre-wired with H2O Stop quick connectors, lug/socket included. ACT (Anti-Corrosion Treatment) upon request.

495lm - 2700K - CRI> 80 - Beam° 15

Find a Flos store
Technical Drawing
DR-Ingraze-Frame-L600-Asymmetric-Louvre
Main specifications
EAN
8054793267685
Mounting
In-ground
LED type
Power LED
System power (W)
17
Lumen Output (lm)
495
Schematic light drawing
F017B2QA0XX
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
15
Beam angle C90-270 (º)
16
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Power supply type
Non Dimmable
Physical
Colour
Anthracite
Orientation
Fixed
Length (mm)
600
Net weight (kg)
3.55
Package height (mm)
225
Package width (mm)
170
Package length (mm)
672
Package volume (m3)
0.03
IP internal
66
IP external
67
Static load (kg)
2500.000
Dynamic load (kg)
Yes
CE
RG
UL
ENEC
UKCA
67
IK10 - 20.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

REPLACEABLE2

PWRSUPRPL2

Accessories & Power Supply

Required(4)
Optional(16)
