Johnny
03.0760.40A White/WhiteJohnny 80 Semi-Recessed 1L Square
Designed by FLOS Architectural, 2017
Semi-recessed luminaire with LED light source. Power supply not included.
LED - Power LED - 6.2W - 399lm - 3000K - CRI> 90 - Beam° 11
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Number of lamps
1
Power (W)
6.2
Lumen Output (lm)
399
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
Beam angle C0-180 (º)
11
Beam angle C90-270 (º)
11
Electrical
Insulation class
III
Frequency (Hz)
50/60
Forward voltage (V)
12

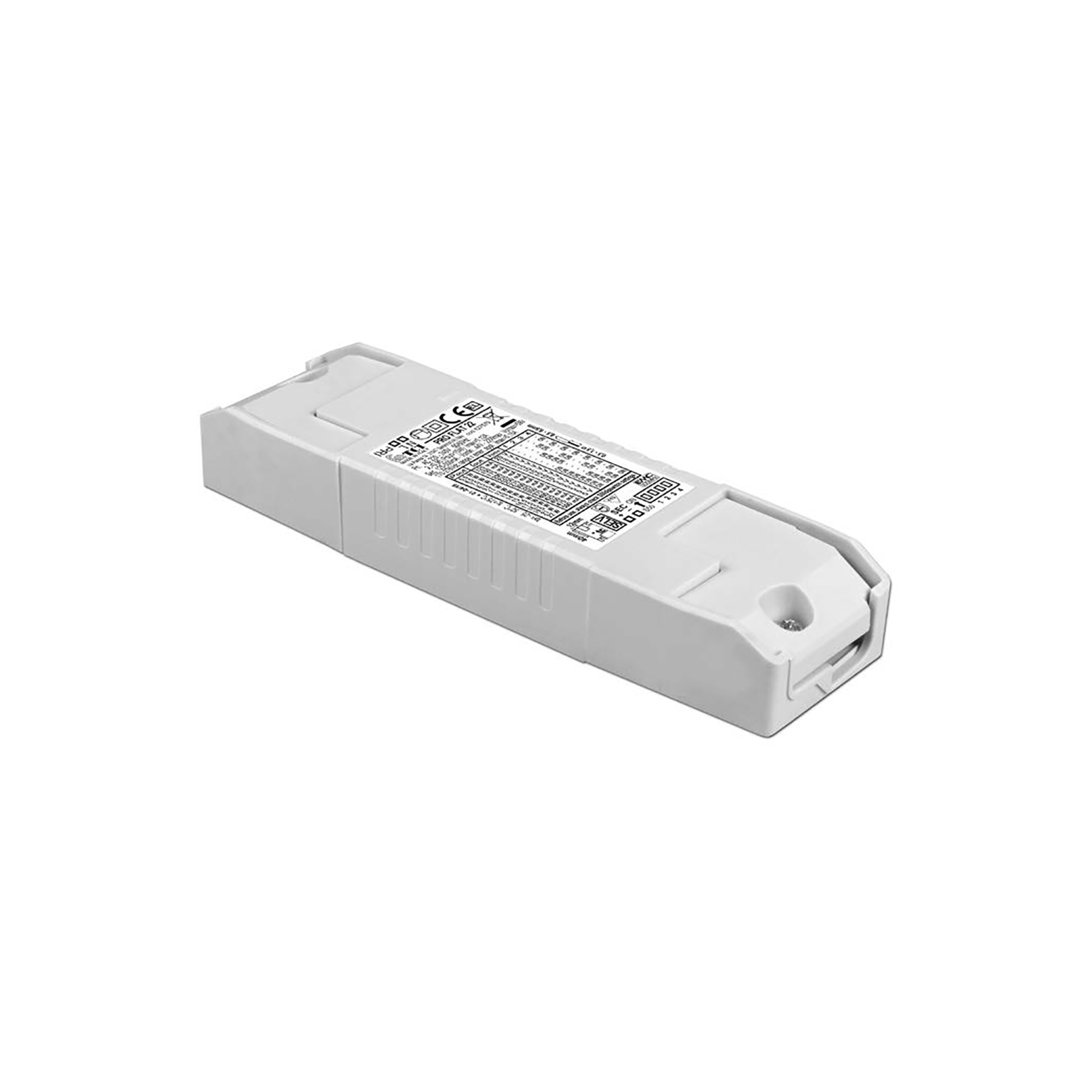

Power supply
Remote excluded
Dimmable
Yes
Power supply type
Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming
Emergency
No
Physical
Colour
White/White
Trim
No
Orientation
Adjustable
Longitudinal tilting (°)
20
Transversal tilting (°)
20
Recessed depth (mm)
121
Net weight (kg)
0.32
IP internal
20
IP external
20
Notes
Accessories included (honeycomb and screening crosspiece).
