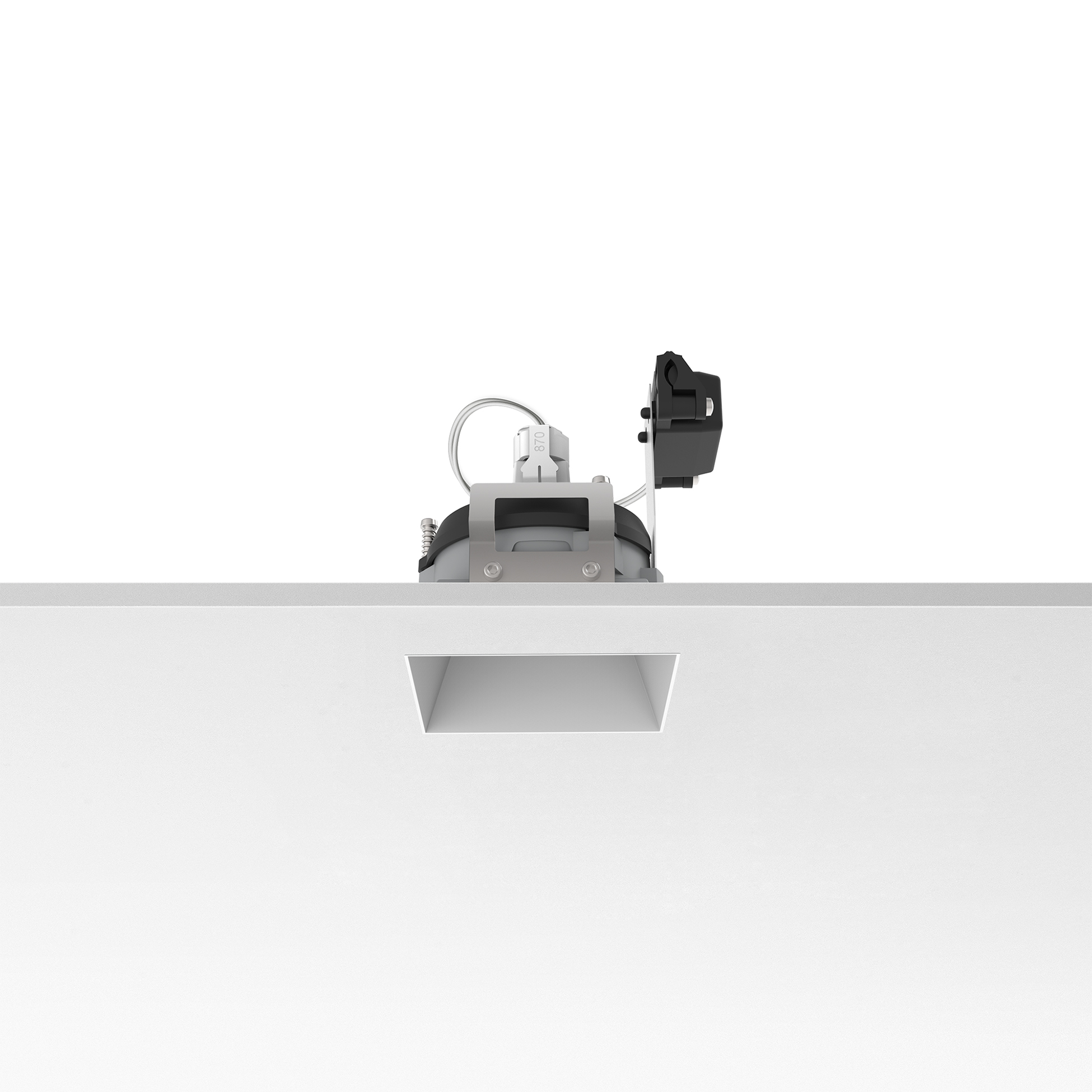

03.4234.B1WhiteKap 80 Square Adjustable
Designed by FLOS Architectural, 2016
Recessed 12V lamp luminaire. Remote transformer not included.
LED retrofit
Also available in:
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
Bulb
Light sources included
no
Lamp category
LED retrofit
Lamp type
QR-CBC 51
Lamp holders
GX5.3
Number of lamps
1
Photometric
Lighting type
Direct
Light distribution
Symmetric
Electrical
Insulation class
III
Forward voltage (V)
12
Power supply
Remote excluded
Physical
Colour
White
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
20
Transversal tilting (°)
20
Recessed depth (mm)
120
Length (mm)
74
Net weight (kg)
0.12
Package height (mm)
90
Package width (mm)
140
Package length (mm)
105
IP internal
20
IP external
23
Notes
Not suitable for lens accessories. Check your lamp dimentions to match the product.
