Kap
03.4235.GLGold

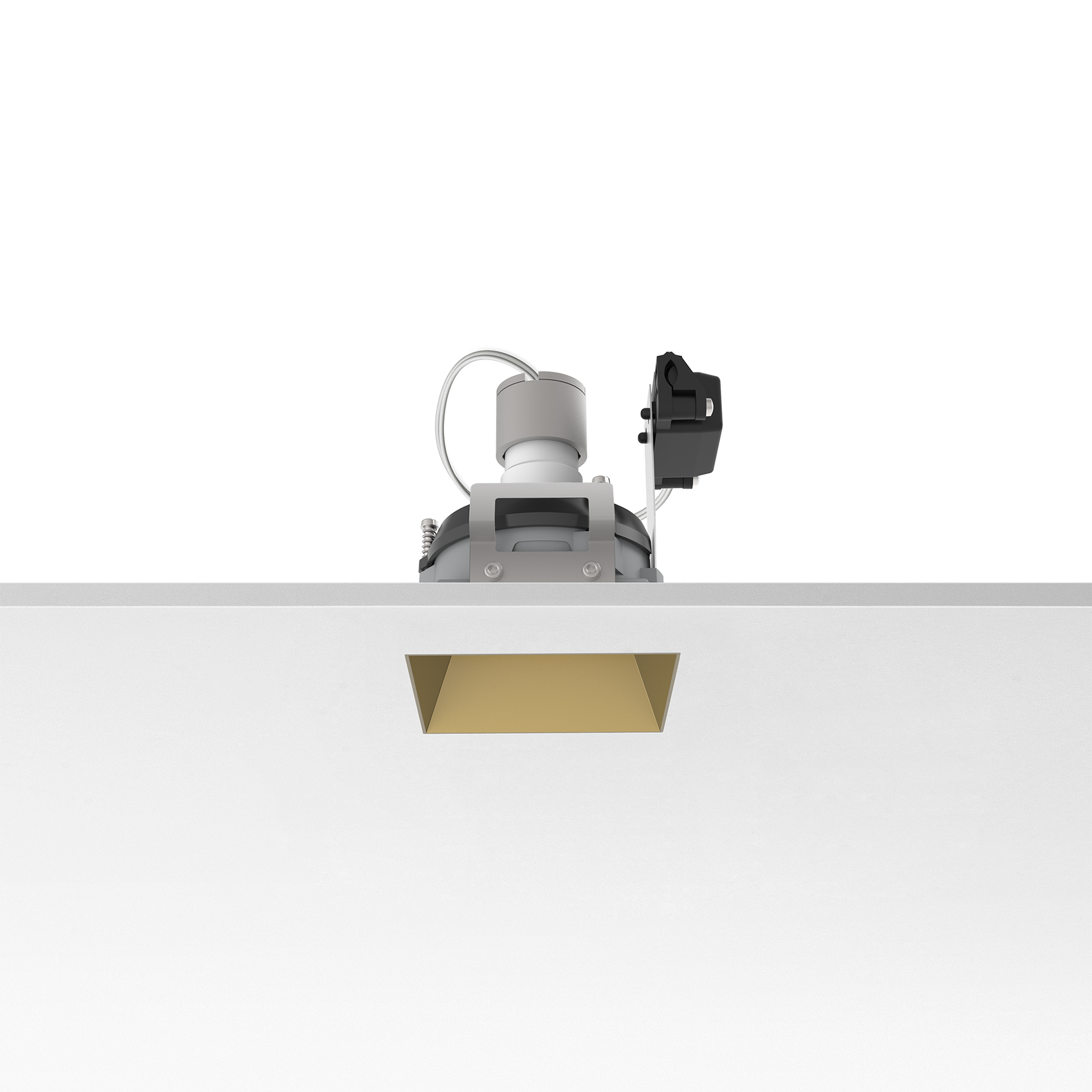

Kap 80 Square Adjustable

Recessed luminaire with main voltage source.

LED retrofit

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Downlight-Kap-80_Square-Adjustable_Par_16
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
Bulb
Light sources included
no
Lamp category
LED retrofit
Lamp type
PAR16
Lamp holders
GZ10
Number of lamps
1
Photometric
Lighting type
Direct
Light distribution
Symmetric
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Forward voltage (V)
230
Physical
Colour
Gold
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
20
Transversal tilting (°)
20
Recessed depth (mm)
155
Net weight (kg)
0.12
Package height (mm)
90
Package width (mm)
140
Package length (mm)
105
IP internal
20
IP external
23
UKCA
RG
EAC
RETILAP
CE
Gwt 850 (º)
23
Notes

Not suitable for lens accessories.

Download

Tech spec pdf
Mounting instructions

Technical Drawings

2D
3D
Bim

Ecodesign and Energy Labelling

REPLACEABLE4

Accessories & Power Supply

Required(1)
