Kap

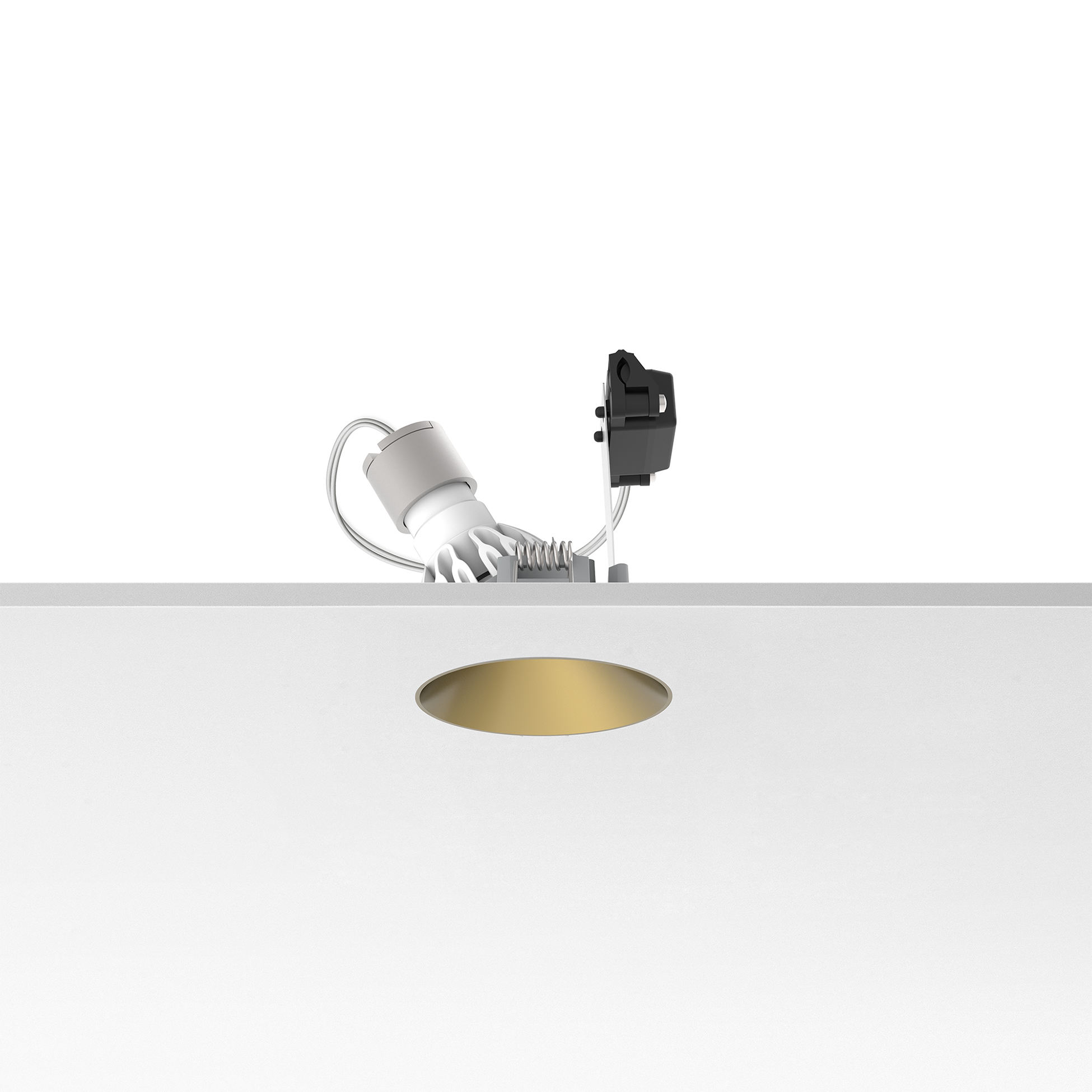

03.4245.GLGoldKap Ø 80 Wall-Washer
Designed by FLOS Architectural, 2016
Recessed luminaire with main voltage source.
LED retrofit
Also available in:
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
Bulb
Light sources included
no
Lamp category
LED retrofit
Lamp type
PAR16
Lamp holders
GU10
Number of lamps
1
Photometric
Lighting type
Direct, Indirect
Light distribution
Asymmetric
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Forward voltage (V)
230
Physical
Colour
Gold
Trim
No
Orientation
Fixed
Recessed depth (mm)
140
Spot diameter (mm)
74
Length (mm)
74
Net weight (kg)
0.12
Package height (mm)
90
Package width (mm)
140
Package length (mm)
105
IP internal
20
IP external
23
Notes
Not suitable for lens accessories.
