Kelvin
F3311009 White

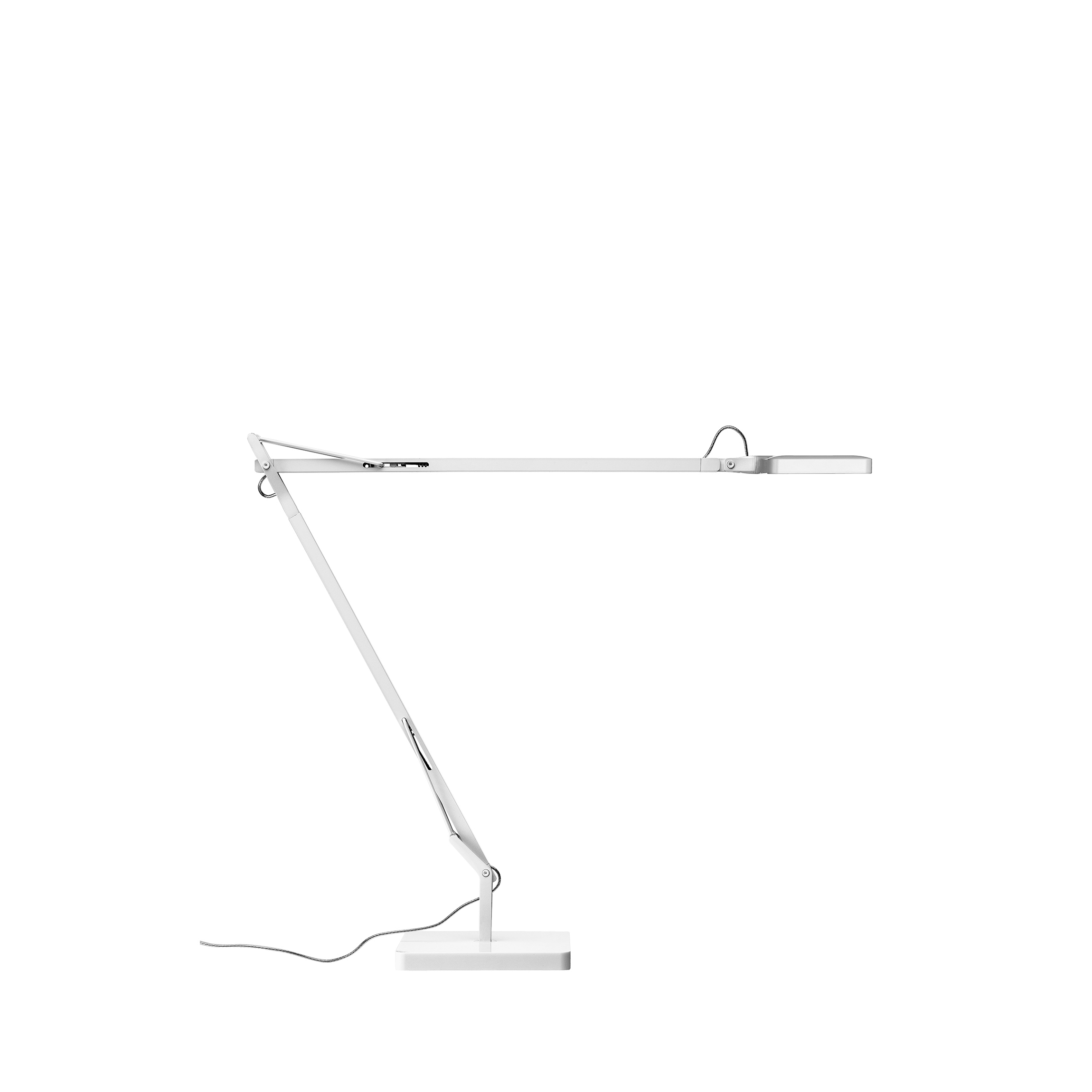

Kelvin Led Base

Adjustable table lamp providing direct lighting, with double pantograph arm and adjustable head. Fused aluminum alloy body. Die-cast aluminum outer head, with injection-molded methacrylate diffuser. BASE external cover in ABS. Extruded aluminum alloy square tube (12x12mm) structure, machined mechanically, so that it houses a stainless steel load-compensation spring and injection-molded acetal resin sliding blocks. 3 mm diameter wire outer tie rods. Available in white, anthracite, black or chrome finishes. The ON/OFF switch is electronic with optical mechanism located in the head. Two possibilities to choose: - PERSONAL MODE (orange switch) Dimm the light intensity you like. - GREEN MODE (green switch) Now Kelvin LED becomes Green, saving even more energy thanks to his automatic compensation of the ambience light.

8W - 285lm - 3000K

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Table-Kelvin-Led_Base
Main specifications
Mounting
Table
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
8
Lumen Output (lm)
285
Schematic light drawing
F33110WKELVIN_LED_GM_8W-LED
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Electronic 24V
Dimming interface
Dimmer Integrated
Plug type
Type G, Type A, Type C
Batteries inside
No
Physical
Colour
White
Length (mm)
581
Cord colour
Clear
Cord length (mm)
1800
Net weight (kg)
3.9
Package volume (m3)
0.02
IP internal
20
UL
UKCA
RG
CMIM
IECEC
EAC
RETILAP
CE

Download

Tech spec pdf
Mounting instructions
Mounting instructions
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL3 Replaceable control gear by an end-user

Spare Parts

F3311009-kelvinledgm-flos-boom
01. White plug assembly kit & 24V driver
RF6600209
02. Kelvin Led Grey insert for lamp base
RF18763
03. Kelvin Led gm white base
F3322009A
04. Kelvin led gm white body
F3312009
