Kelvin
F3305009 WhiteKelvin Led Floor
Designed by Antonio Citterio/assistant Toan Nguyen,Antonio Citterio, 2011
Floor lamp. Head in pressofused aluminium, diffuser in PC. Power pack on plug, base cover in injection printed PC, counterweight in iron cut and painted by means of a cataphoresic process. Directionable head. Three-step ON/OFF switch with Soft Touch technology. Base separated from the lamp body with safety locking pin.
8W - 285lm - 2700K
Technical Drawing
Main specifications
Mounting
Floor
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
8
Lumen Output (lm)
285
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Electronic 24V
Dimming interface
Dimmer Integrated
Plug type
Type G, Type A, Type C
Batteries inside
No
Physical
Colour
White
Length (mm)
675
Cord colour
Clear
Cord length (mm)
1500
Net weight (kg)
3.8
Package volume (m3)
0.04
IP internal
20
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class F
Replaceable (LED only) light source by a professional
Replaceable control gear by an end-user
Spare Parts
01.
White plug assembly kit & 24V driver
RF6600209
02.
Kelvin Led Floor Kit with screw and allen keys
RF3320300
03.
Kelvin Led gm white base
F3322009A
04.

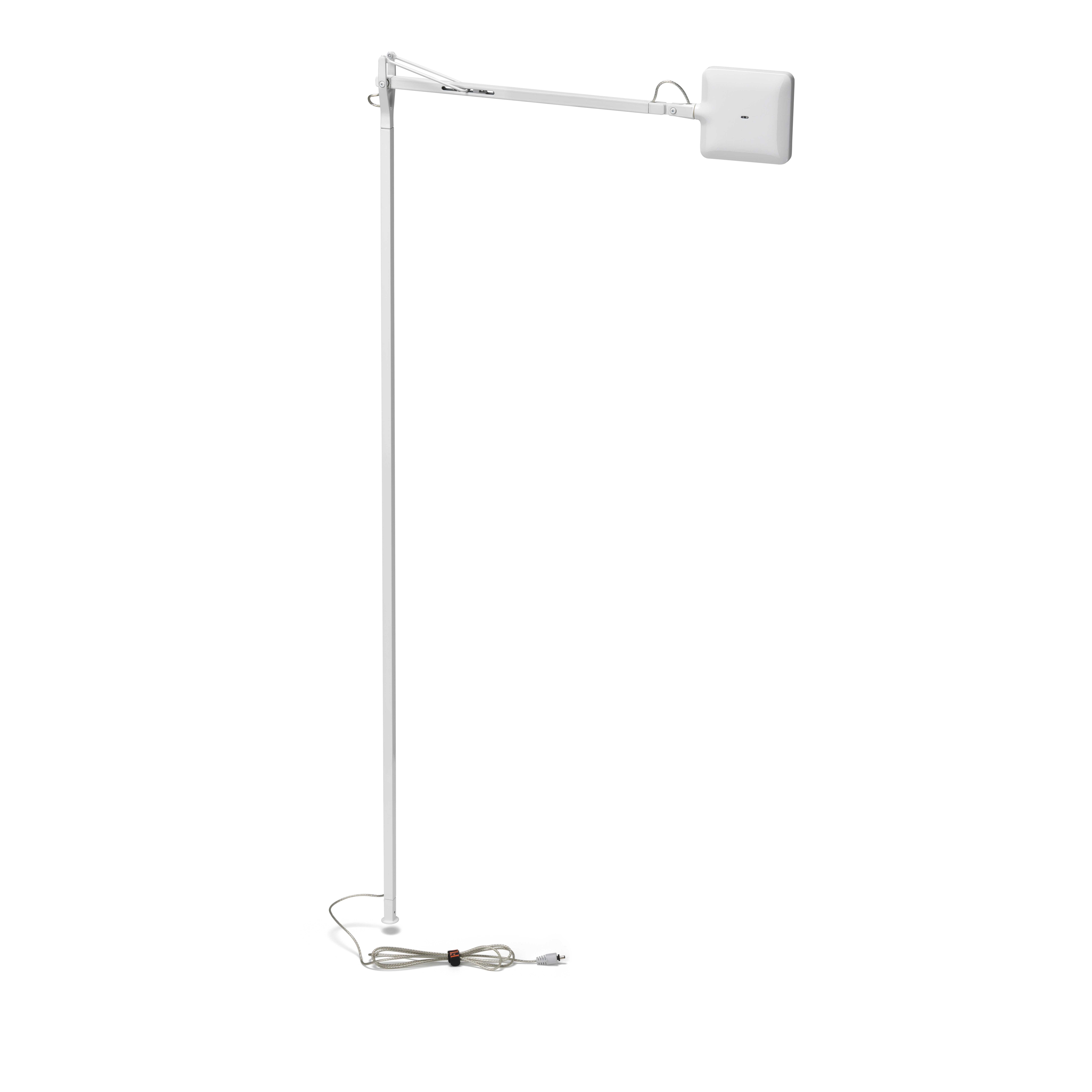

Kelvin led Floor white body
F3306009
