Ktribe
F6263030Fumée

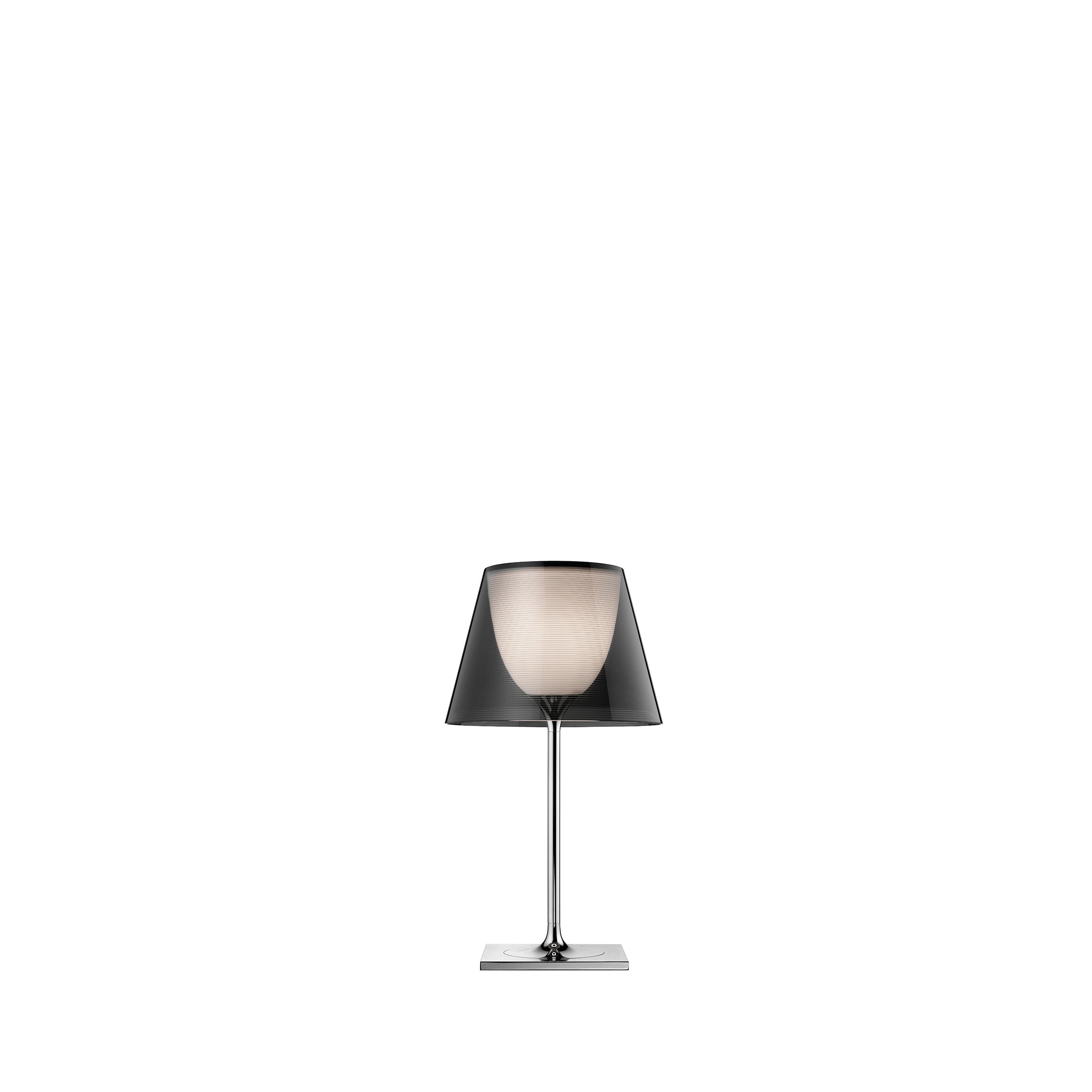

KTribe Table 1

Table lamp emitting diffused light. Base, rod support and diffuser support in die-cast polished Zamak alloy with polished aluminium tubular stem. Base cover in injection-moulded PA (nylon). Inner diffuser in opal injection-moulded PC (polycarbonate). Outer diffuser in PMMA (polymethylmethacrylate).

Halogen - 100W

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Table-Ktribe-T1
Main specifications
EAN
8059607005644
Mounting
Table
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
1
Power (W)
100
Schematic light drawing
ktribe-table-1-starck-flos-F6263000-curva-fotometrica-01
Photometric
Lighting type
Direct, Indirect
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Dimmer Integrated
Plug type
Type C
Batteries inside
No
Physical
Colour
Fumée
Length (mm)
315
Cord colour
Black
Cord length (mm)
1640
Net weight (kg)
3.15
Package volume (m3)
0.1
IP internal
20
CE
EAC
CMIM
ENEC
IECEC
RETILAP
Autoprotected Lamp
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Bulbs

Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 2700K A70RF32563
Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 3000K A70RF32564

Spare Parts

F6263030-ktribe-t1-flos-boom
01. Ktribe Table 1 fumée diffuser assembly
F6264030
02. Black Dimmer Switch
RF28206
Thumbnail
x1
Ktribe Table 1 fumée diffuser assemblyF6264030
x1
Black Dimmer SwitchRF28206
