Ktribe
F6307030Fumée

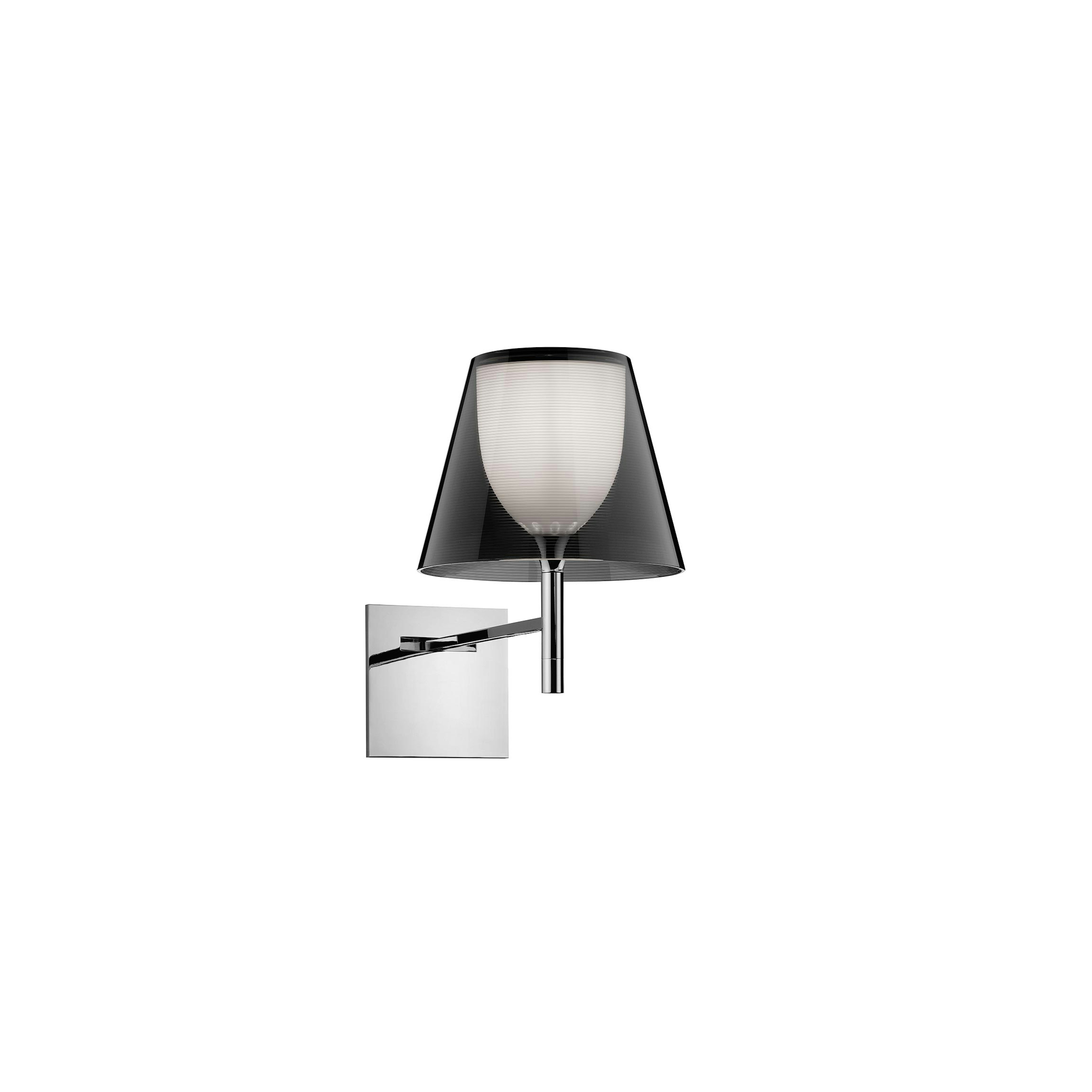

KTribe Wall

Wall-mounted lamp emitting diffused light. Cover rose in die-cast polished and chrome-plated Zamak alloy with polished aluminium arm and diffuser support. Inner diffuser in opal injection-moulded PC (polycarbonate). Outer diffuser in PMMA (polymethylmethacrylate) with vacuum aluminium-coated inner surface. Upper ring in injection-moulded PC (polycarbonate). Light source dimmable in four steps via remote dimmer.

Halogen - 70W

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Ktribe
Main specifications
EAN
8059607006207
Mounting
Wall
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
1
Power (W)
70
Schematic light drawing
ktribe-ceiling-wall-starck-flos-F6307000-curva-fotometrica-01
Photometric
Lighting type
Direct, Indirect
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Dimmer Integrated
Batteries inside
No
Physical
Colour
Fumée
Length (mm)
240
Net weight (kg)
2.07
Package volume (m3)
0.05
IP internal
20
CE
EAC
CMIM
UKCA
RETILAP
Autoprotected Lamp
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Bulbs

Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 2700K A70RF32563
Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 3000K A70RF32564

Spare Parts

F6307030-ktribe-w-flos-boom
01. fumée diffuser assembly
RF6255009
02. Ktribe Wall Dimmer 220-240V White
RF28737
Thumbnail
x1
fumée diffuser assemblyRF6255009
x1
Ktribe Wall Dimmer 220-240V WhiteRF28737
