Last Order
F3694059 Polished Brass

Last Order Fluted

Flos Last Order table lamp was designed by M. Anastassiades. It is a rechargeable table lamp that diffuses light through a transparent solid crystal base whose shape makes reference to architectural typology of the ancient column. The top cover comes in a combination of different metal and colour finishes: stainless steel, brass, satin copper or green opal coating.

3W - 87lm - 2700K - CRI> 90

Technical Drawing
Last-order-2-01_2-1
Main specifications
EAN
8059607030523
Mounting
Portable
Environments
Indoor wet location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
3
Lumen Output (lm)
87
Schematic light drawing
F36940WLAST_ORDER_FLUTED_2,5W-LED
Photometric
Lighting type
Direct
Light distribution
Roto symmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Electronic 5V
Dimming interface
Dimmer Integrated
Plug type
Type G, Type A, Type C
Batteries inside
Yes
Battery type
LI-PO
Charging socket/connector
USB-C
Physical
Colour
Polished Brass
Length (mm)
112
Net weight (kg)
2.04
Package volume (m3)
0.01
IP internal
55
IECEE-CB
CMIM Morocco
EAC
CE
UKCA
Canada & USA
Risk 0
03 - Italy
55

Download

Tech spec pdf
Mounting instructions
Dimmers or chargers compatible

Photometric Files

LDT / IES

Technical Drawings

3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL3 Replaceable control gear by an end-user

Spare Parts

F3694059-last-order-fluted-flos-boom

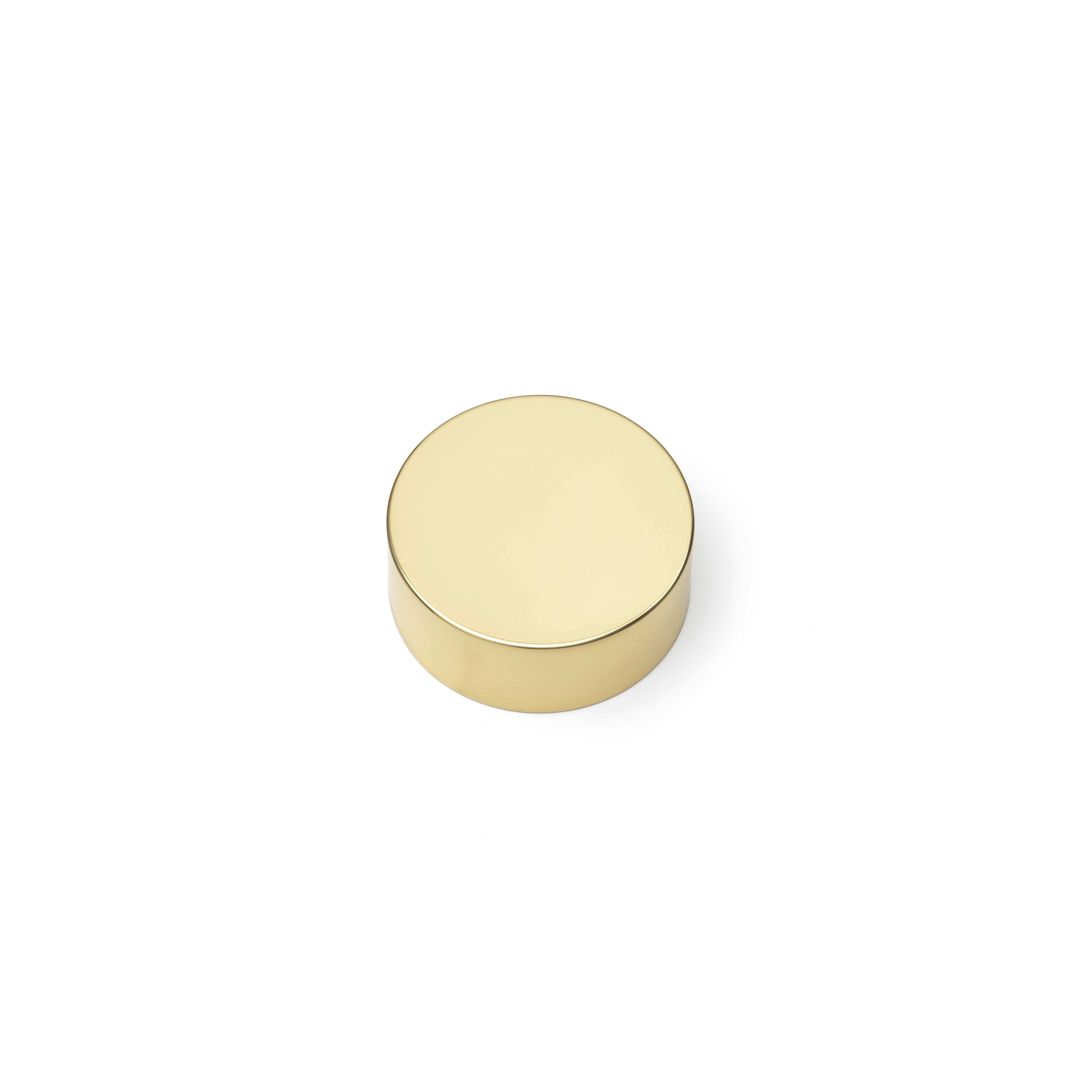

01. Last Order Polished steel top cover
F3692059

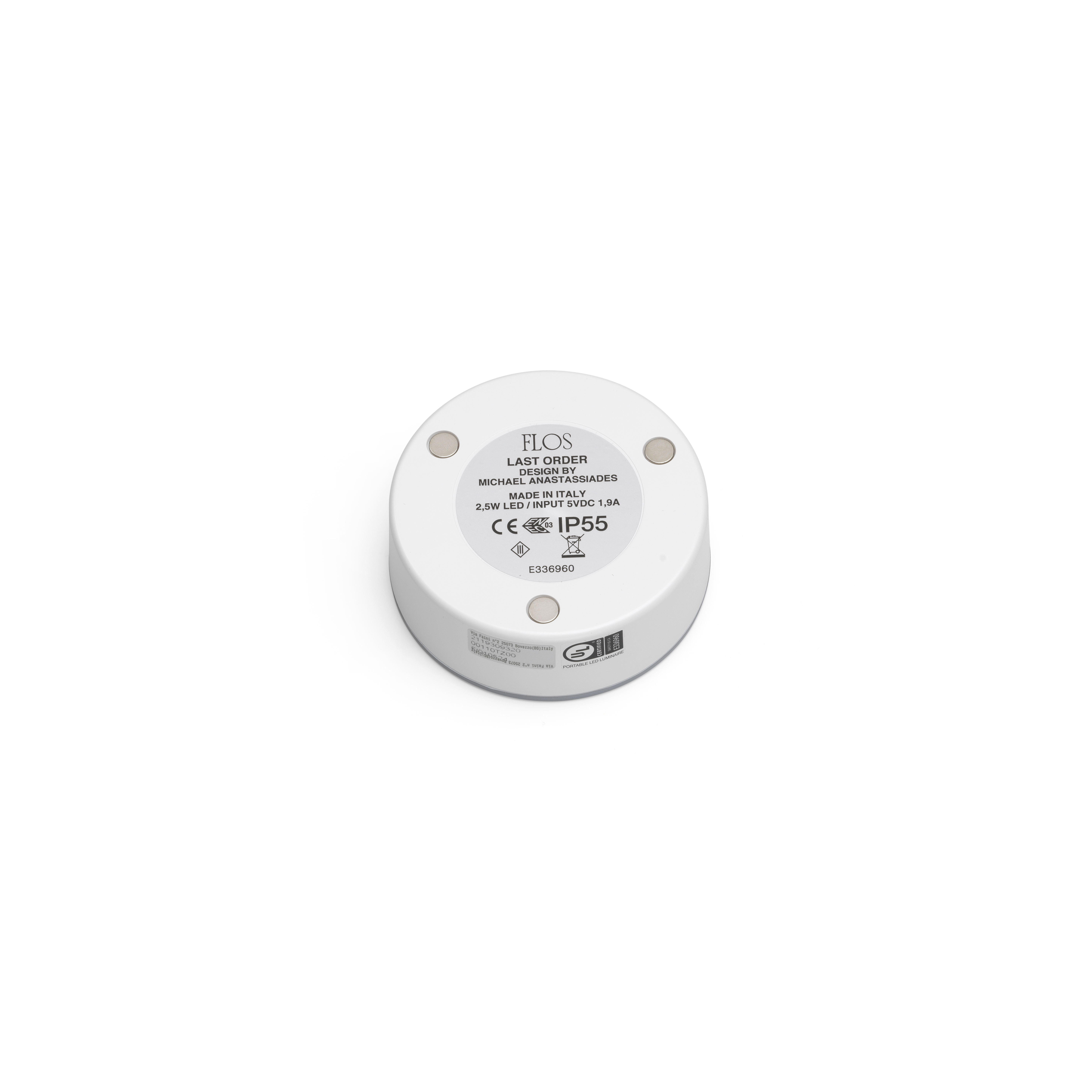

02. Last Order Led body assembly
RF36267
03. Last Order Crystal fluted base
RF29125
04. Power charger with electrical cable & plugs
RF1035109
