Light Shadow
05.1717.40ANI White/Bronze

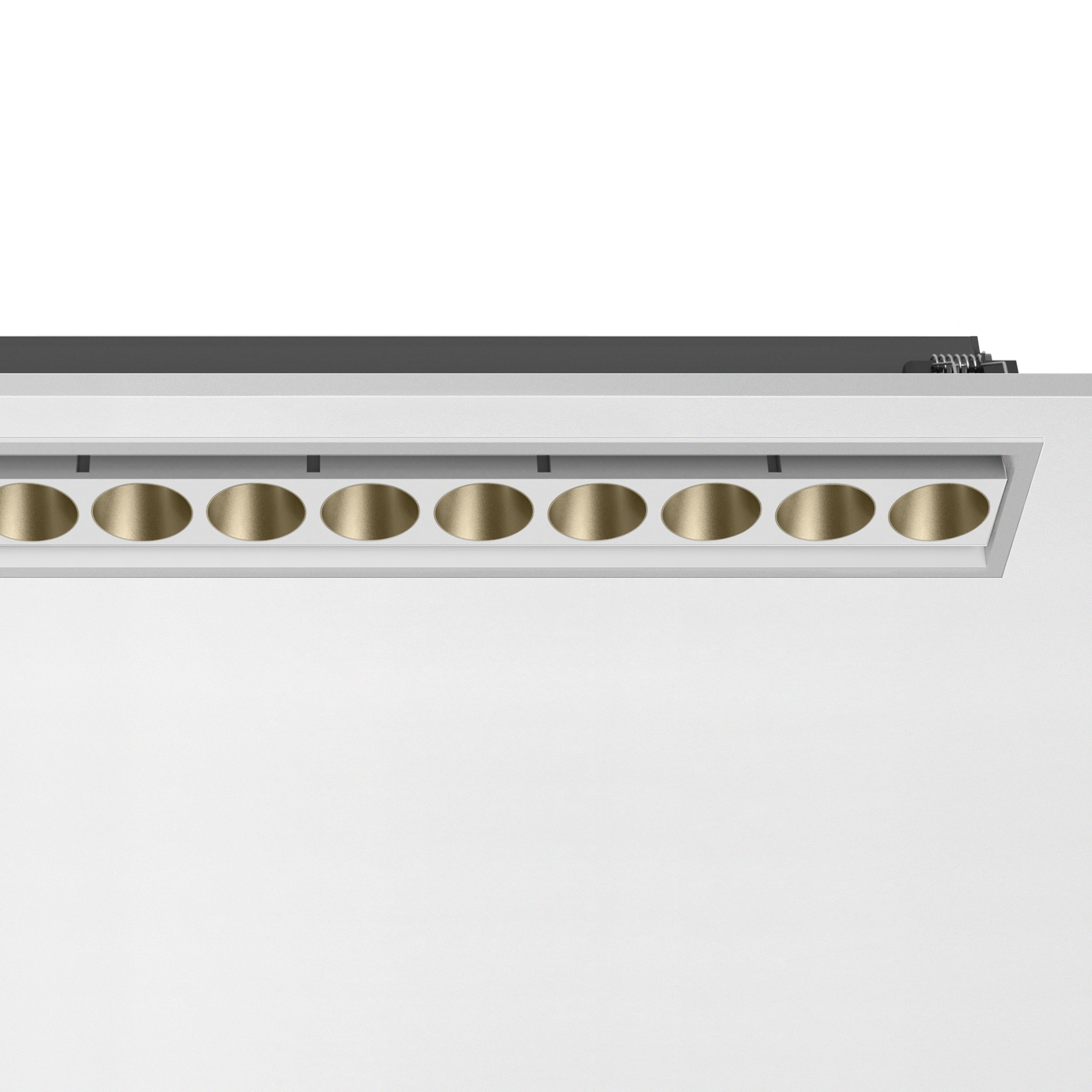

Light Shadow Adjustable Trim Mains Dimming Version 12 Spots Optic Medium
New

Recessed integrated luminaire with 12 LED lighting spots. Remote power supply included (220-240V).

LED - 2175lm - 3000K - CRI> 90 - Beam° 22

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Downlight-Light_Shadow-Adjustable_Trim_12L
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
Lamp category
LED
Number of lamps
1
System power (W)
28
Source flux (lm)
2712
Lumen Output (lm)
2175
Efficacy (lm/W)
80
Schematic light drawing
EU_05_1717_XXANIW27.0
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
22
Beam angle C90-270 (º)
22
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Mains Cut Dimming
Physical
Colour
White/Bronze
Trim
Yes
Orientation
Adjustable
Longitudinal tilting (°)
30
Recessed depth (mm)
75
Length (mm)
436
Net weight (kg)
0.66
IP internal
20
UKCA
RETILAP
CE
Notes

Pre-Installation frame not required.
