Light Shadow
05.1042.14A Black/BronzeLight Shadow Fixed No Trim 2 Spots Optic Spot
Designed by FLOS Architectural, 2022

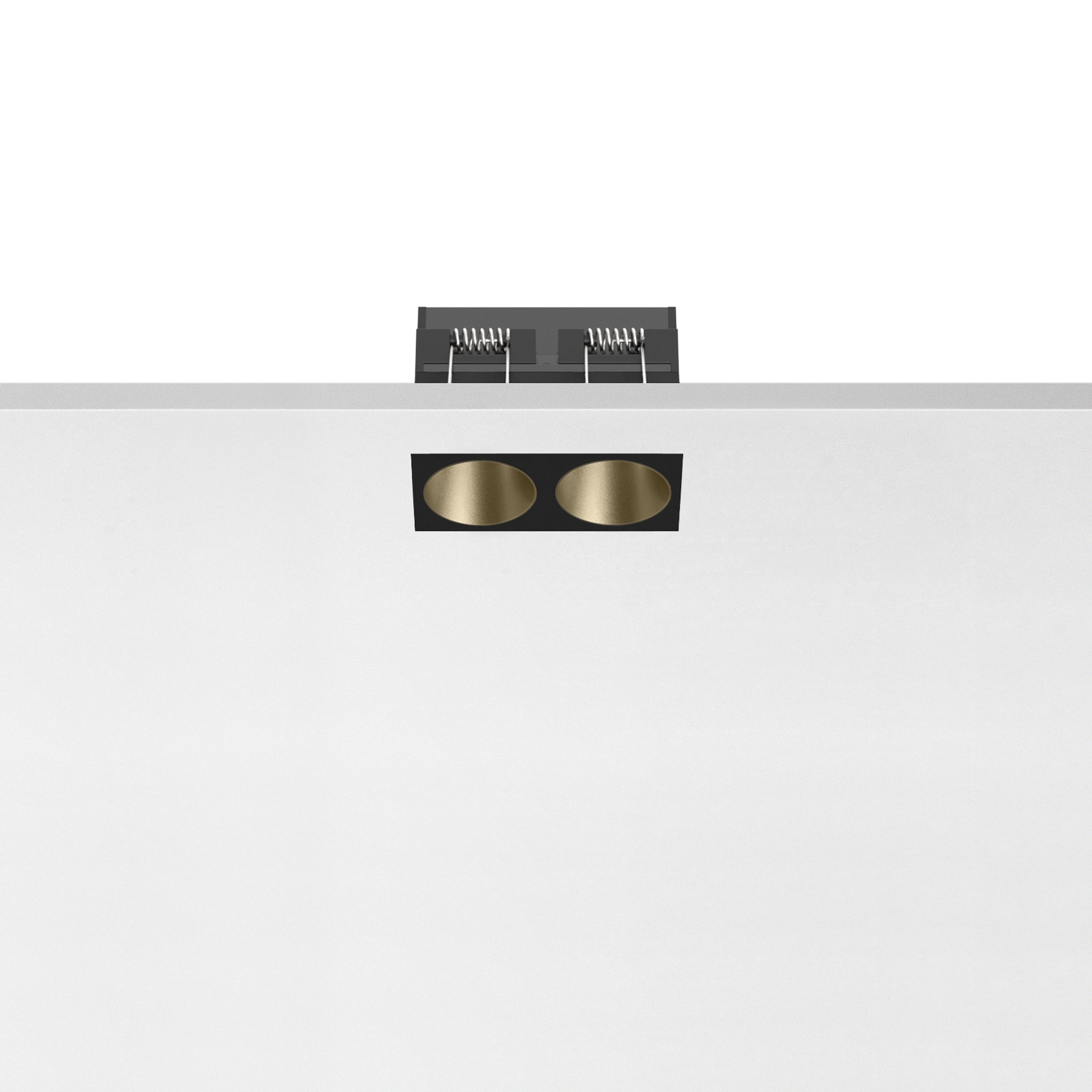

Recessed integrated luminaire with 2 LED lighting spots. Remote power supply included (220-240V).
LED - Power LED - 7W - 421lm - 2700K - CRI> 90 - Beam° 11
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Number of lamps
1
Power (W)
7
Source flux (lm)
540
Lumen Output (lm)
421
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B20 >50.000h (Tc=85ºC)
Beam angle C0-180 (º)
11
Beam angle C90-270 (º)
11
UGRL
<10
Electrical
Insulation class
II
Frequency (Hz)
50/60
Forward voltage (V)
3
LED current (mA)
900
Power supply
Remote included
Dimmable
No
Power supply type
Non Dimmable
Physical
Colour
Black/Bronze
Trim
No
Orientation
Fixed
Recessed depth (mm)
75
Length (mm)
70
Net weight (kg)
0.25
Package height (mm)
10
Package width (mm)
13
IP internal
20
IP external
55
Notes

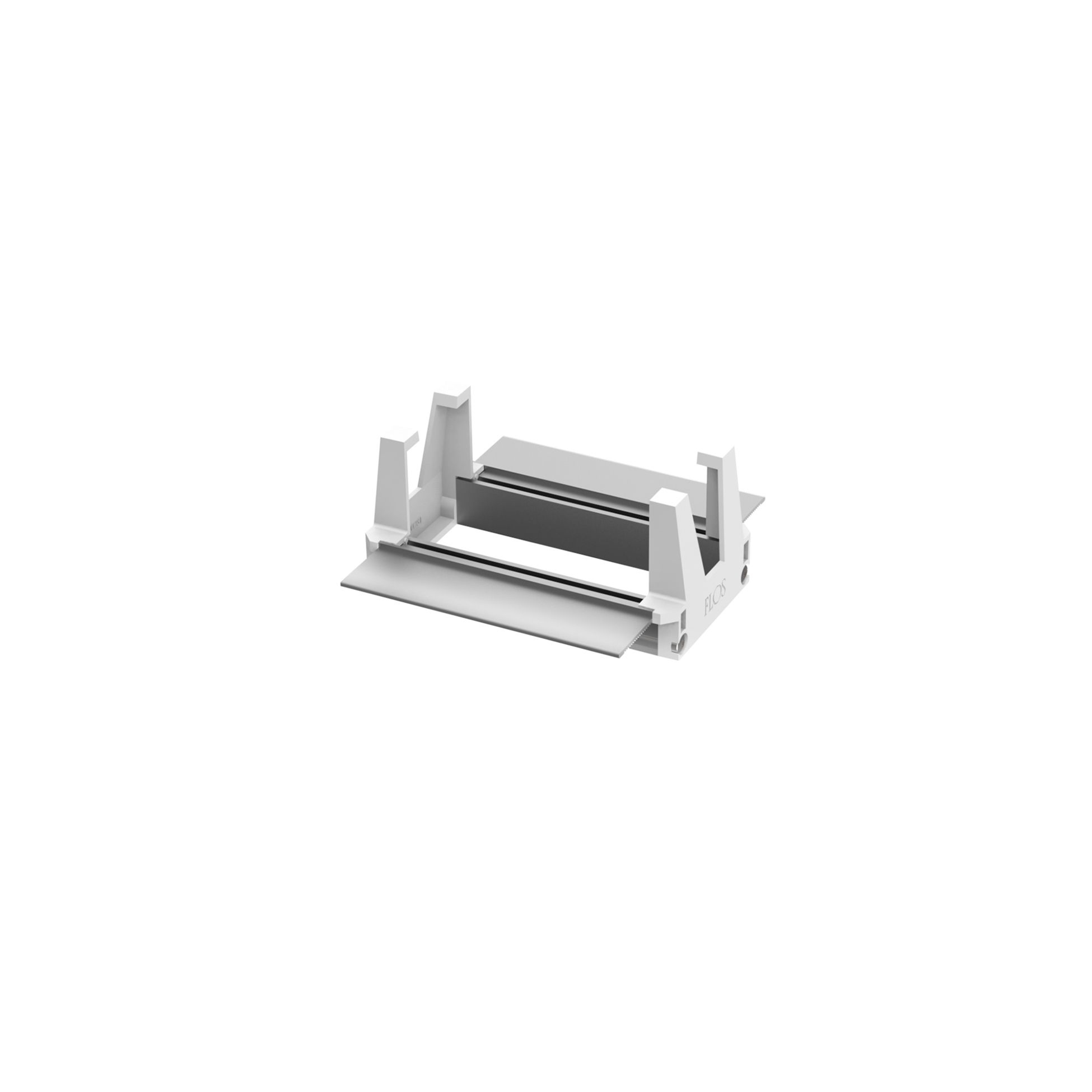

It requires a pre-installation frame, to be ordered separately.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
