Light Shadow

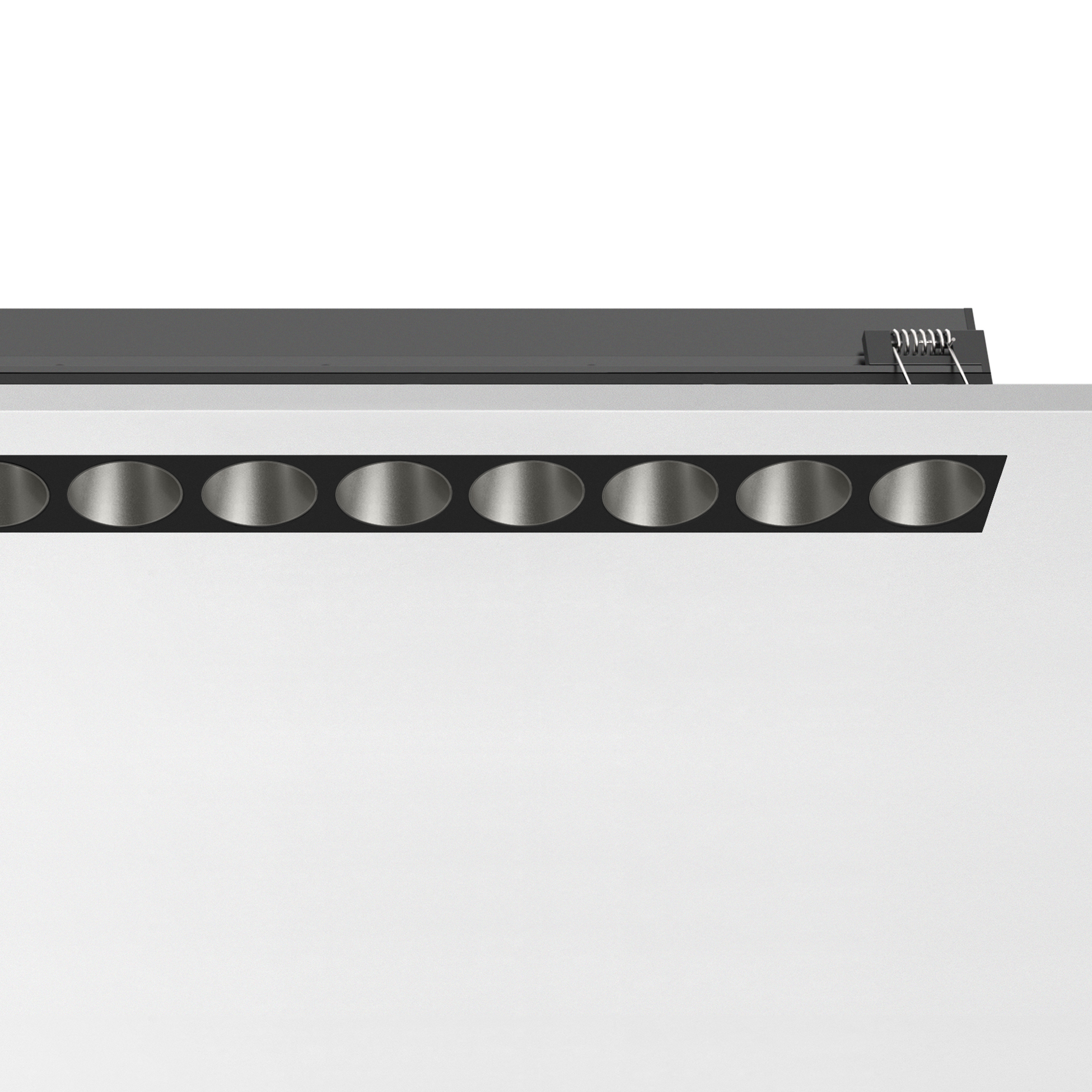

05.1356.14ANI Black/SteelLight Shadow Fixed No Trim Mains dimming Version 12 Spots Optic Medium
Designed by FLOS Architectural, 2022
Recessed integrated luminaire with 12 LED lighting spots. Remote power supply included (220-240V).
LED - Power LED - 31.3W - 2180lm - 3000K - CRI> 90 - Beam° 21
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Number of lamps
1
Power (W)
31.3
System power (W)
32.4
Source flux (lm)
3420
Lumen Output (lm)
2180
Efficacy (lm/W)
80
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B20 >50.000h (Tc=85ºC)
Beam angle C0-180 (º)
21
Beam angle C90-270 (º)
20
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
LED current (mA)
900
Power supply
Remote included
Dimmable
Yes
Power supply type
Mains Cut Dimming
Physical
Colour
Black/Steel
Trim
No
Orientation
Fixed
Recessed depth (mm)
75
Length (mm)
420
Net weight (kg)
0.66
IP internal
20
IP external
55
Notes
It requires a pre-installation frame, to be ordered separately.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
