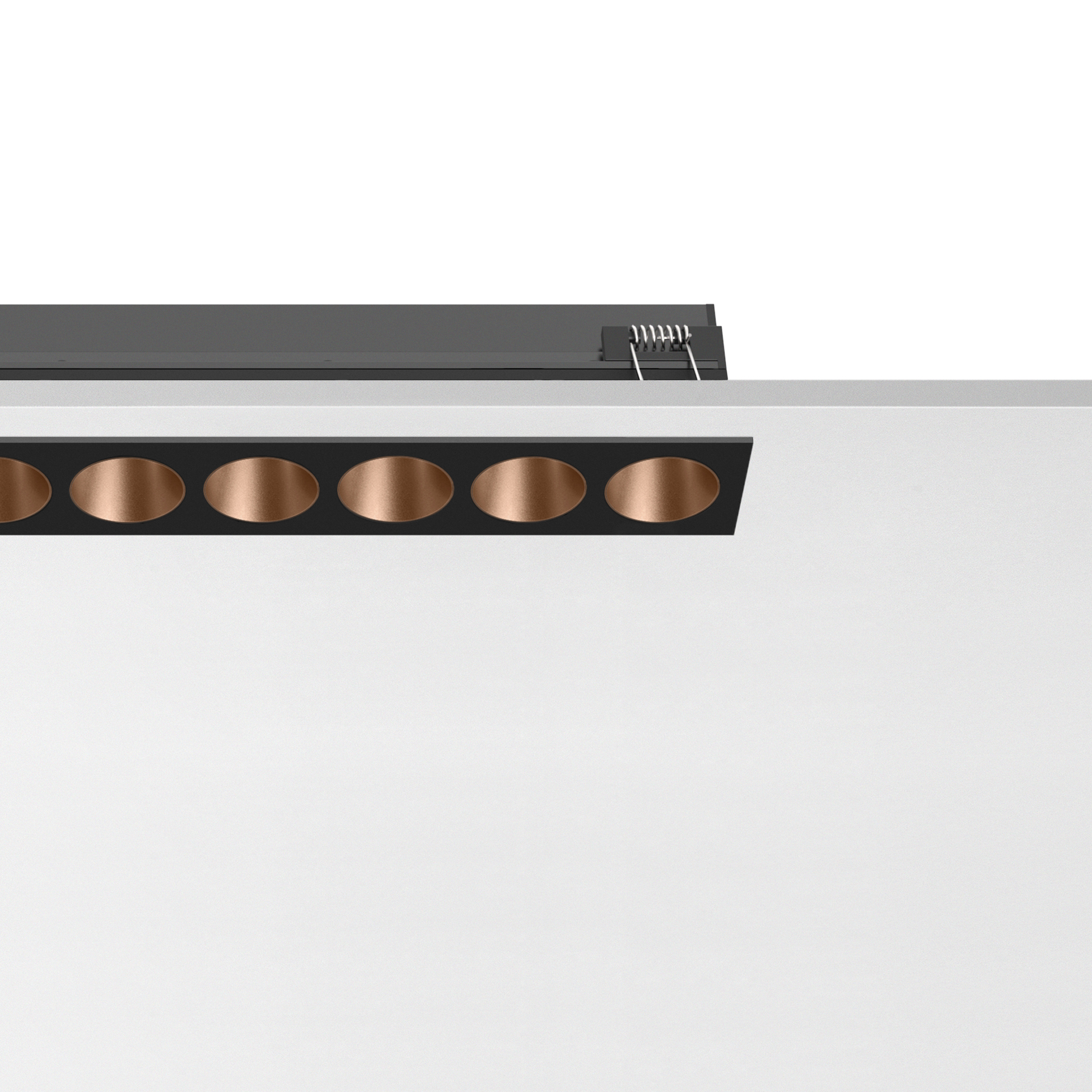

05.1235.14BDA Black/CopperLight Shadow Fixed Trim Dali Version 8 Spots Optic Wide Flood
Designed by FLOS Architectural, 2022
Recessed integrated luminaire with 8 LED lighting spots. Remote power supply included (220-240V).
LED - Power LED - 21.6W - 1612lm - 3000K - CRI> 90 - Beam° 46
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Number of lamps
1
Power (W)
21.6
Source flux (lm)
2280
Lumen Output (lm)
1612
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
46
Beam angle C90-270 (º)
46
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Forward voltage (V)
23.2
LED current (mA)
900
Power supply
Remote included
Dimmable
Yes
Power supply type
Dimmable DALI 2
Dimming range (%)
1-100
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Black/Copper
Trim
Yes
Orientation
Fixed
Recessed depth (mm)
75
Length (mm)
287
Net weight (kg)
0.5
Package height (mm)
10
Package width (mm)
14
IP internal
20
IP external
55
Notes
Pre-installation frame not required.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
