Light Shadow
05.1000.14ANI Black/Copper
Light Shadow Fixed Trim Mains dimming Version 2 Spots Optic Spot
New
Designed by FLOS Architectural, 2022

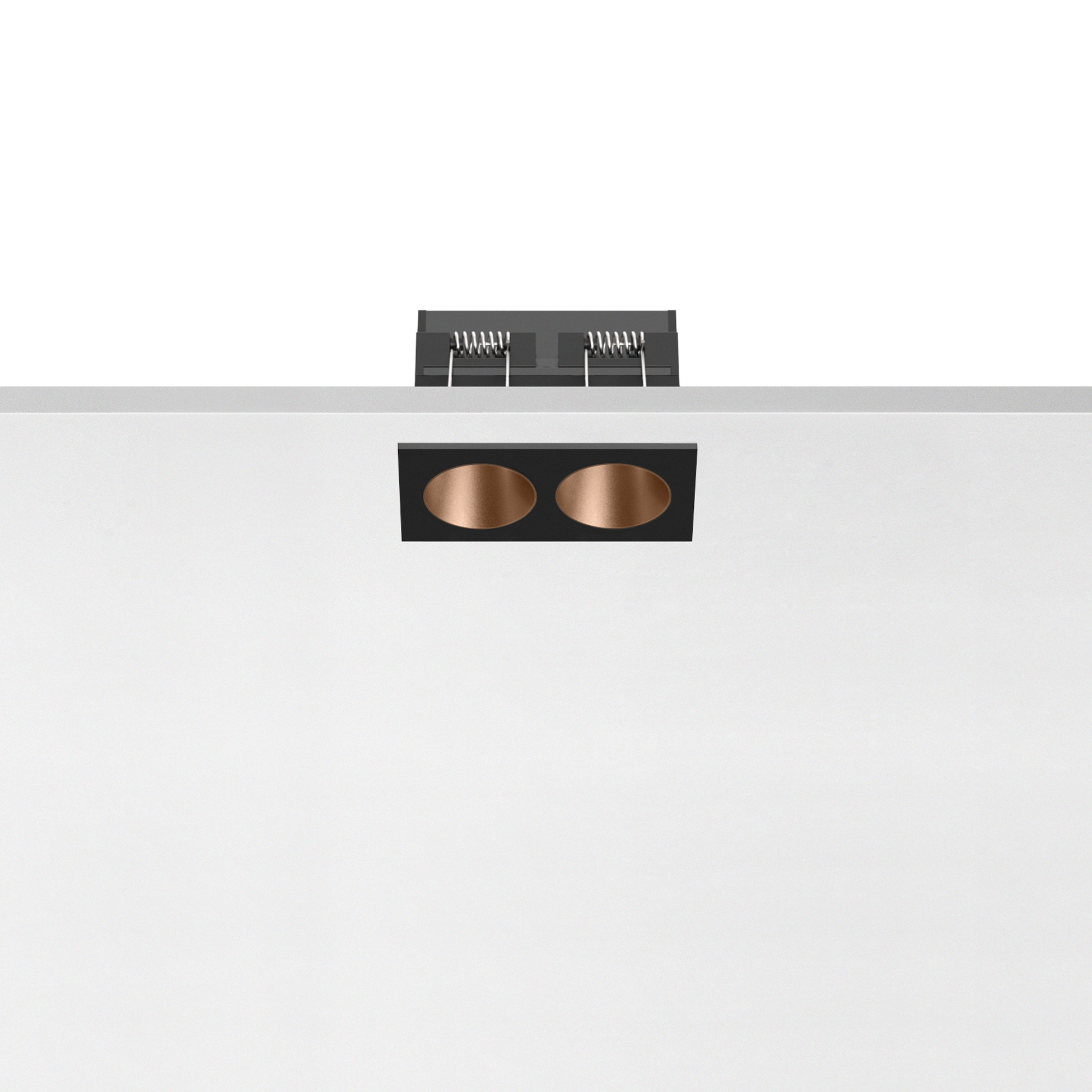

Recessed integrated luminaire with 2 LED lighting spots. Remote power supply included (220-240V).
6.5W - 394lm - 2700K - CRI> 90 - Beam° 12
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
6.5
System power (W)
7
Source flux (lm)
540
Lumen Output (lm)
394
Efficacy (lm/W)
56
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
12
Beam angle C90-270 (º)
10
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
LED current (mA)
900
Power supply
Remote included
Dimmable
Yes
Power supply type
Mains Cut Dimming
Physical
Colour
Black/Copper
Trim
Yes
Orientation
Fixed
Recessed depth (mm)
75
Length (mm)
77
Net weight (kg)
0.25
IP internal
20
IP external
55
Notes
Pre-installation frame not required.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
