Light Shadow

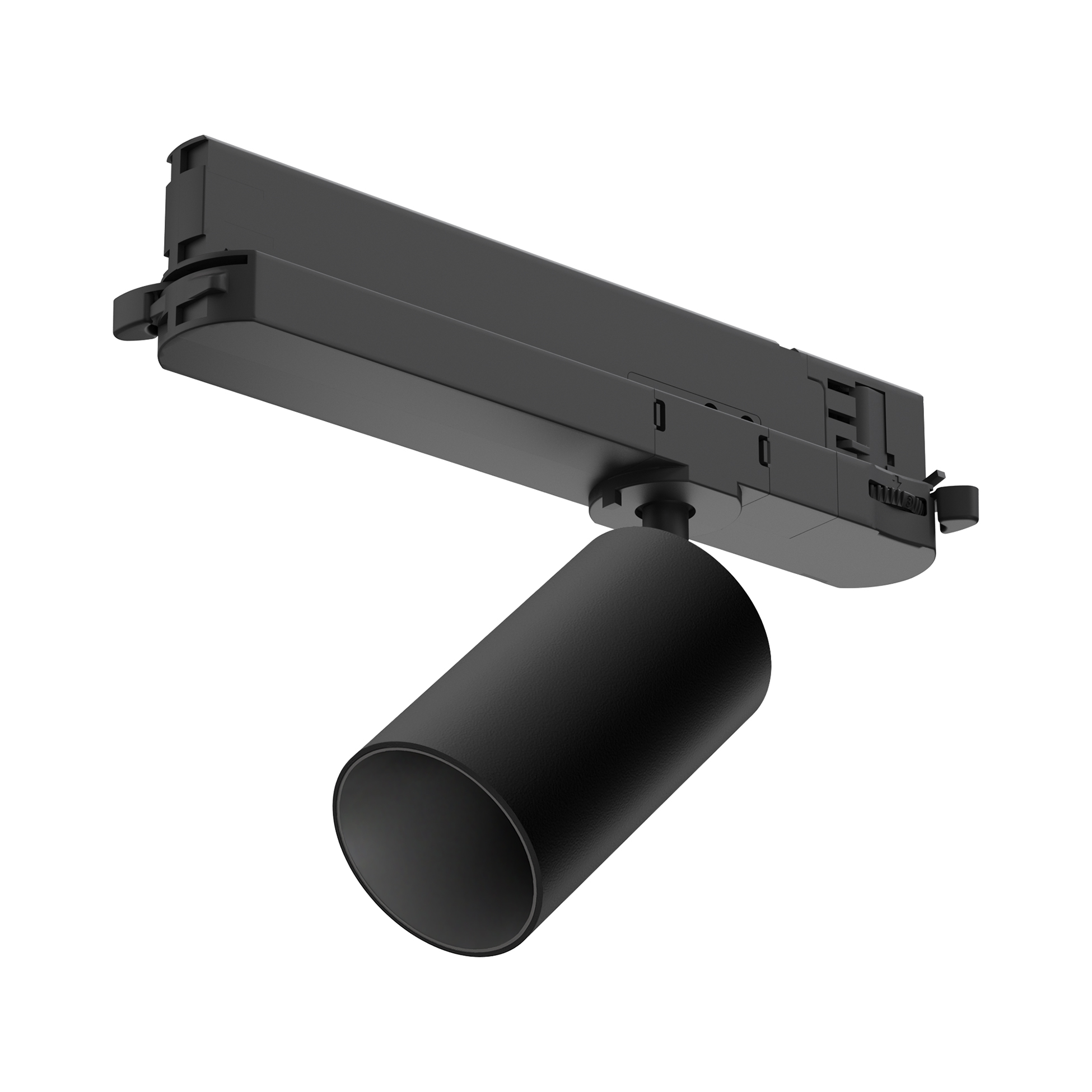

05.9207.14ADA BlackLight Shadow Spot 45 Dali Version
Designed by FLOS Architectural, 2022
Projector to be installed on threephase track with LED light source. Built-in 220-240V, 50-60Hz power supply. All finishes come with black track adapter, arm and back of the head. In the “all white” versions the track adapter, arm and back of the head come in white. The display is always offered in high loss technical black anti-glare finish. For other finishes, please consult us.
11.5W - 682lm - 3000K - CRI> 90 - Beam° 31
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Power (W)
11.5
Source flux (lm)
844
Lumen Output (lm)
682
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
Rf fidelity index
92
Rg gamut index
100
LED Life / Failure Ratio
L80B50>47.000h_Tc85ºC
Beam angle C0-180 (º)
31
Beam angle C90-270 (º)
31
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
LED current (mA)
250
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable DALI 2
Dimming range (%)
1-100
Physical
Colour
Black
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.3
IP internal
20
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
