Light Shadow
05.0825.14.DA Bronze/Black/Black

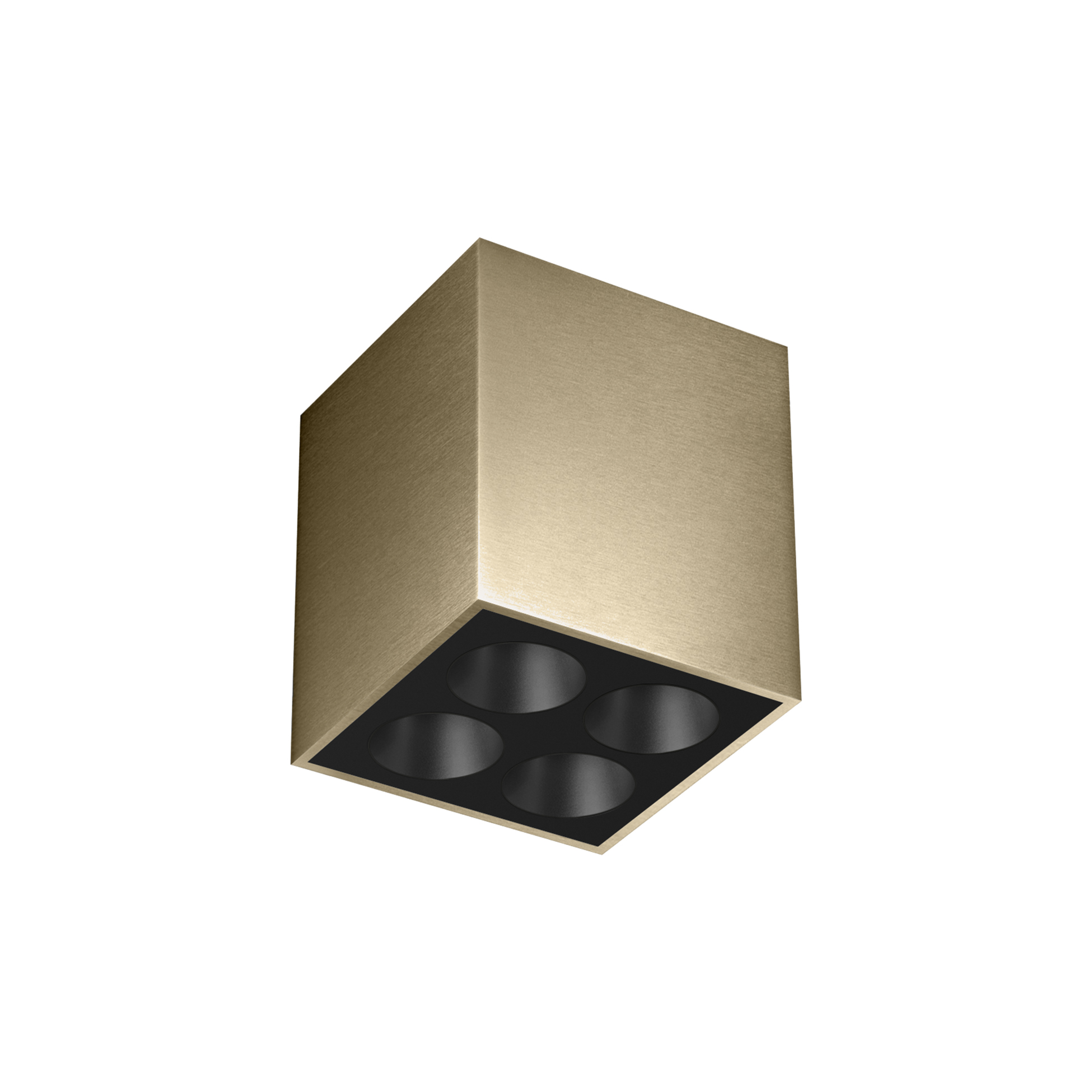

Light Shadow Surface Dali Version 4 Spots Square Optic Flood
New

Surface luminaire with 4 LED lighting spots. Power source 220-240V incorporated.

846lm - 3000K - CRI> 90 - Beam° 33

Find a Flos store
Technical Drawing
DR-Light_Shadow-Surface-4L-Square
Main specifications
Mounting
Ceiling surface
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
System power (W)
10.8
Source flux (lm)
0
Lumen Output (lm)
846
Schematic light drawing
EU_05_0825_XX_XXW10.8
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
LED Life / Failure Ratio
L80B10 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
33
UGRL
<10
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
LED current (mA)
900
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable DALI 2
Physical
Colour
Bronze/Black/Black
Orientation
Fixed
Net weight (kg)
0.6
Package height (mm)
19
Package width (mm)
18
Package length (mm)
22
IP internal
20
UKCA
RETILAP
CE

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional
