The Running Magnet

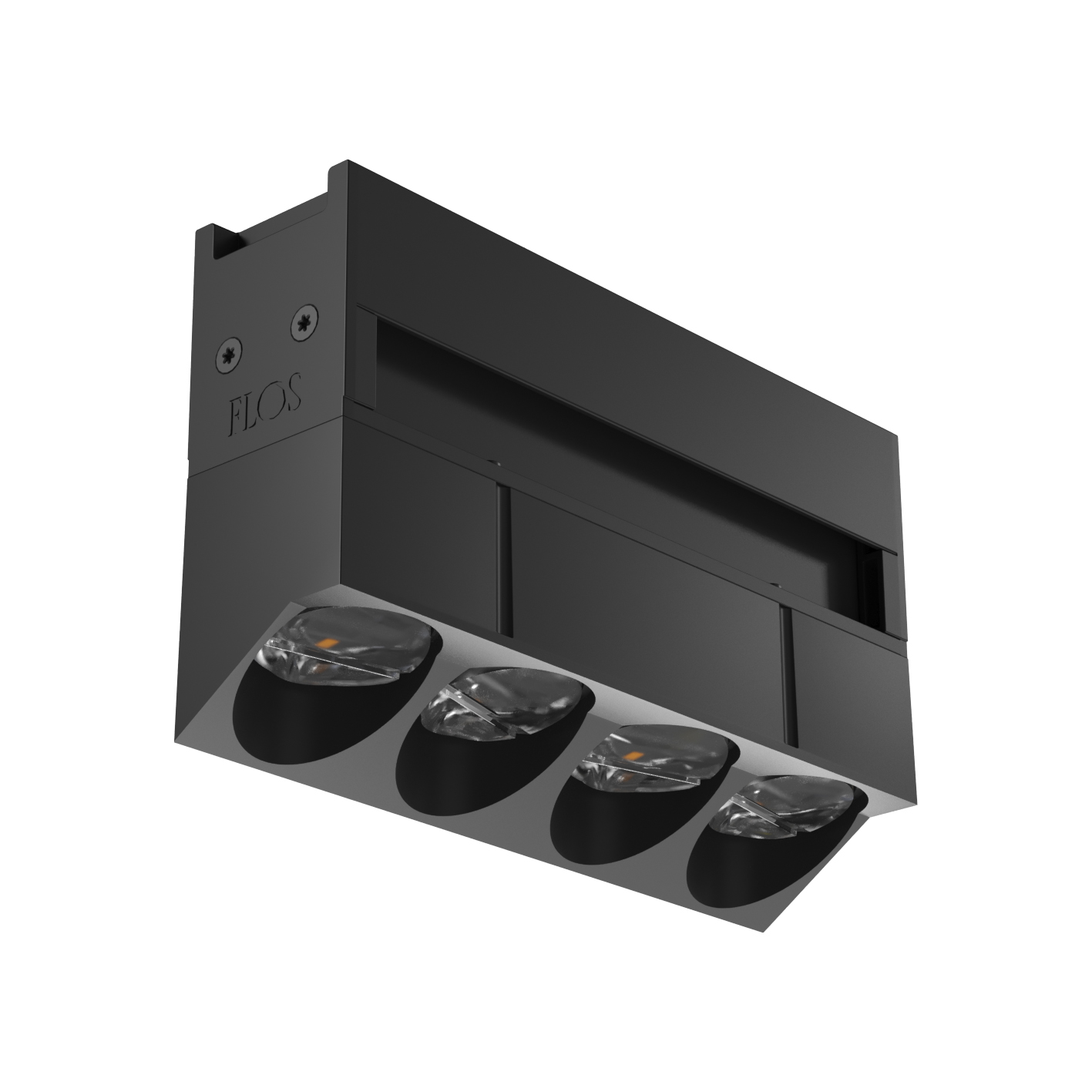

03.9904.14BDA BlackLight Shadow Wall-Washer DALI Version
Designed by FLOS Architectural, 2018
LED lighting module, with 4 spotlights and low glare, to be installed in the The Running Magnet system. DC/DC, built-in electronic current converter.
10.8W - 696lm - 3000K - CRI> 90 - Beam° 22
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
10.8
System power (W)
13.4
Source flux (lm)
1140
Lumen Output (lm)
696
Efficacy (lm/W)
52
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
3
Rf fidelity index
90
Rg gamut index
101
LED Life / Failure Ratio
L80B20 >50.000h (Tc=85ºC)
Beam angle C0-180 (º)
22
Beam angle C90-270 (º)
42
Extreme cut off
No
Electrical
Insulation class
III
Forward voltage (V)
24
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Dimmable DALI 2
Dimming range (%)
1-100
Physical
Colour
Black
Trim
No
Orientation
Fixed
Length (mm)
140
Net weight (kg)
0.34
IP internal
20
Notes
For wireless lighting control, choose integrated Casambi versions.
