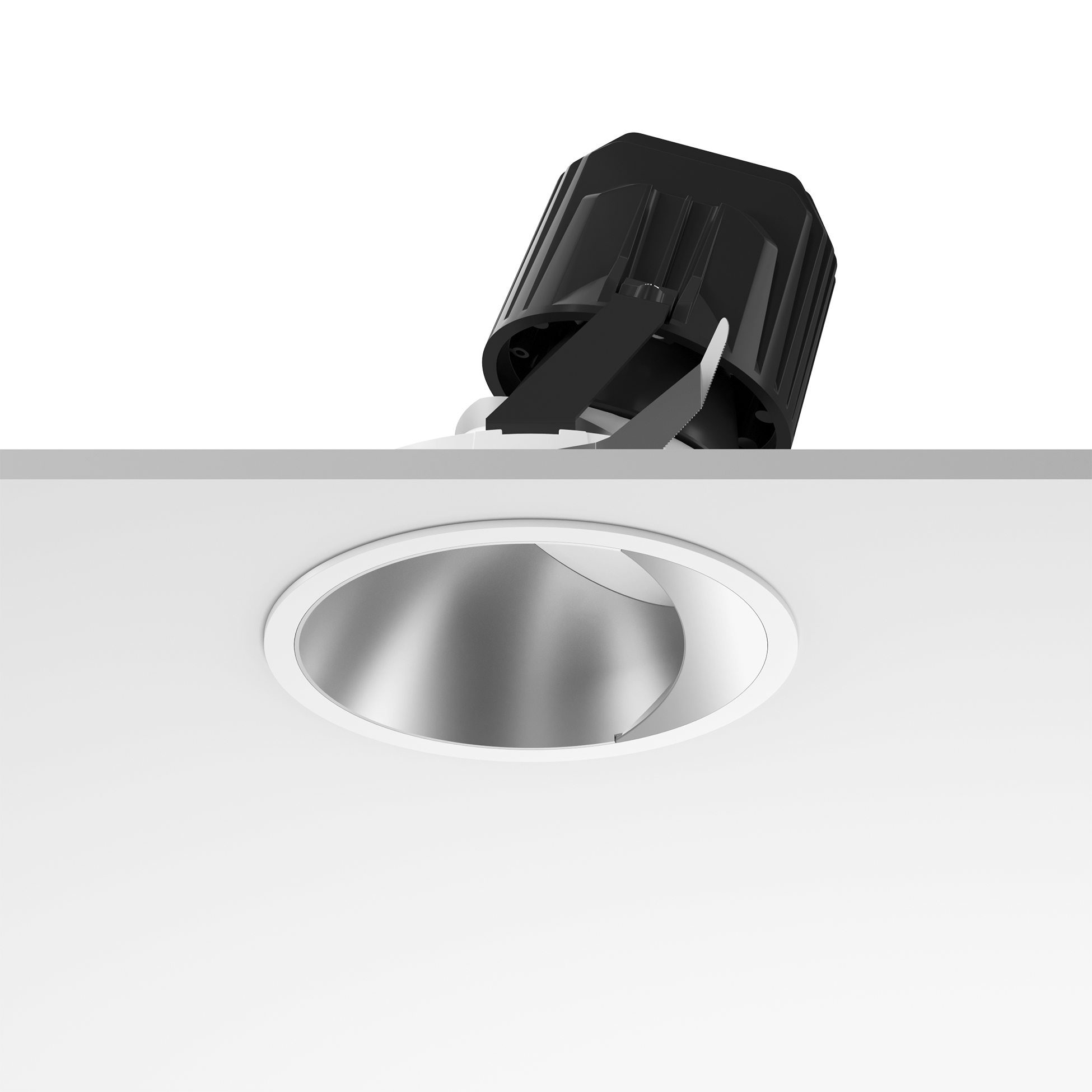

03.6814.3CBDA White/AluminiumLight Supply Wall-Washer Trim Dimmable
Designed by FLOS Architectural, 2017
Recessed luminaire with LED light source. Remote 220/240V power supply included.
LED - LED array - 33.2W - 1771lm - 3000K - CRI> 90 - Beam° 36
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Lamp category
LED
Number of lamps
1
Power (W)
33.2
Source flux (lm)
3225
Lumen Output (lm)
1771
Schematic light drawing
Photometric
Lighting type
Indirect, Direct
Light distribution
Asymmetric
CCT (K)
3000
CRI>
90
Beam angle C0-180 (º)
36
Beam angle C90-270 (º)
51
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Dimmable DALI 2
Physical
Colour
White/Aluminium
Trim
No
Orientation
Fixed
Recessed depth (mm)
290
Net weight (kg)
1.01
IP internal
20
IP external
44
