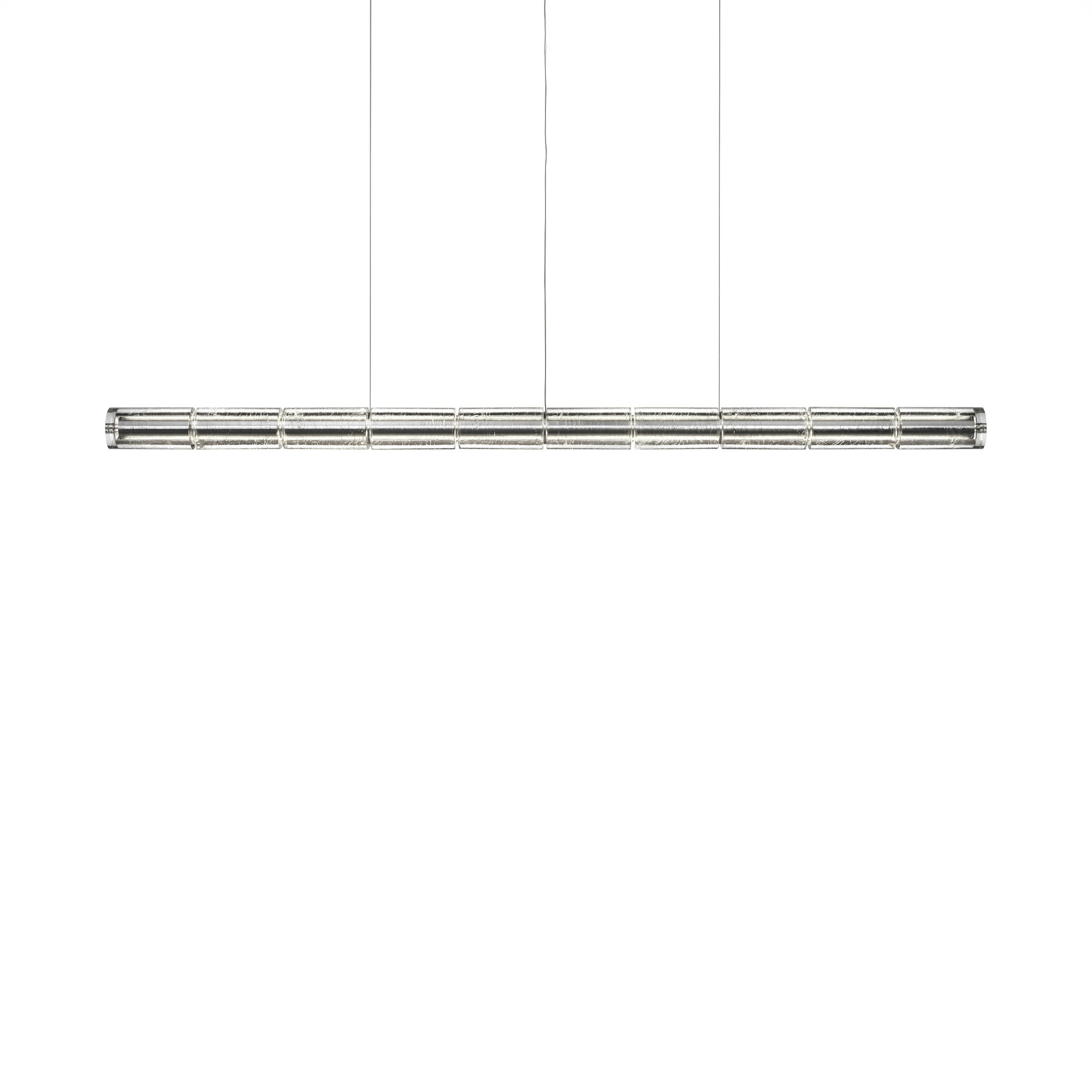

Thumbnail
F3744000 Glass

Luce Orizzontale S2

Suspended lamp consisting of interconnected glass modules that reach a length of 1.66 mt. (S1) 2.07 mt. (S2) 2.49 mt. (S3) with 2.70 m suspended power cable. The cylindrical transparent glass modules are created through an artisanal process by pouring the glass into a rotating mold to obtain an exclusive finish that makes each single piece unique. Internal structure in polished extruded aluminum equipped with two linear LED modules for direct and indirect lighting downwards. The modules can be easily removed and replaced in case of maintenance. The power supply unit and the Dali Dimmer are located within the ceiling rose while a touch control button, positioned on one end of the product, allows the luminaire to be controlled in three different modes. Control options available: TOUCH_ Features direct control via the touch button on the lamp. This option allows to dim and adjust the light intensity of both the up and down emission (individually or combined) from 10% to 100%. PUSH&TOUCH_Features remote on/off control via Push button as well as dim and adjustability of the light tensity of both the up and down emission (individually or combined) from 10% to 100% through the touch button integrated on the lamp. DALI&TOUCH_ Features remote on/off control via DALI DT6 as well as dim and adjustability of the light tensity of both the up and down emission (individually or combined) from 10% to 100% through the touch button integrated on the lamp.

145W - 6682lm - 2700K - CRI> 95

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Luce_Orizzontale-S2_1
Main specifications
EAN
8059607081273
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
145
Lumen Output (lm)
6682
Photometric
Lighting type
Direct, Indirect
Light distribution
Symmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
LED current (mA)
600
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmer on board
Dimming interface
Dimmer Integrated
Physical
Colour
Glass
Length (mm)
2072
Cord colour
Clear
Cord length (mm)
2700
Canopy colour
White
Canopy length/diameter (mm)
900
Canopy width (mm)
61
Canopy height (mm)
78
Net weight (kg)
34.3
Package volume (m3)
0.22
IP internal
20
CE
CCC
EAC
CMIM
ENEC
UKCA
RETILAP

Download

Tech spec pdf
Mounting instructions

Photometric Files

ULD

Technical Drawings

2D
3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F3744000-luce-orizzontale-S2-flos-boom
00. Luce Orizzontale Suspension 2 Accessories kit
RF34045
01. Luce Orizzontale Suspension 2 Led board
RF3747300
02. Luce Orizzontale Ring and 4 mt wiring
RF3746200
03. Luce Orizzontale Closed glass difusser
RF3746300
04. Luce Orizzontale Open glass difusser
RF3746400
05. Luce Orizzontale Suspension 2 Linear diffuser
RF3747200
06. Luce Orizzontale Driver assembly
RF3750400
07. Luce Orizzontale Ceiling rose dimmer
RF36893
08. Luce Orizzontale Suspension ½ Ceiling rose cover
RF3746600
