Luce Orizzontale
F3745000Glass

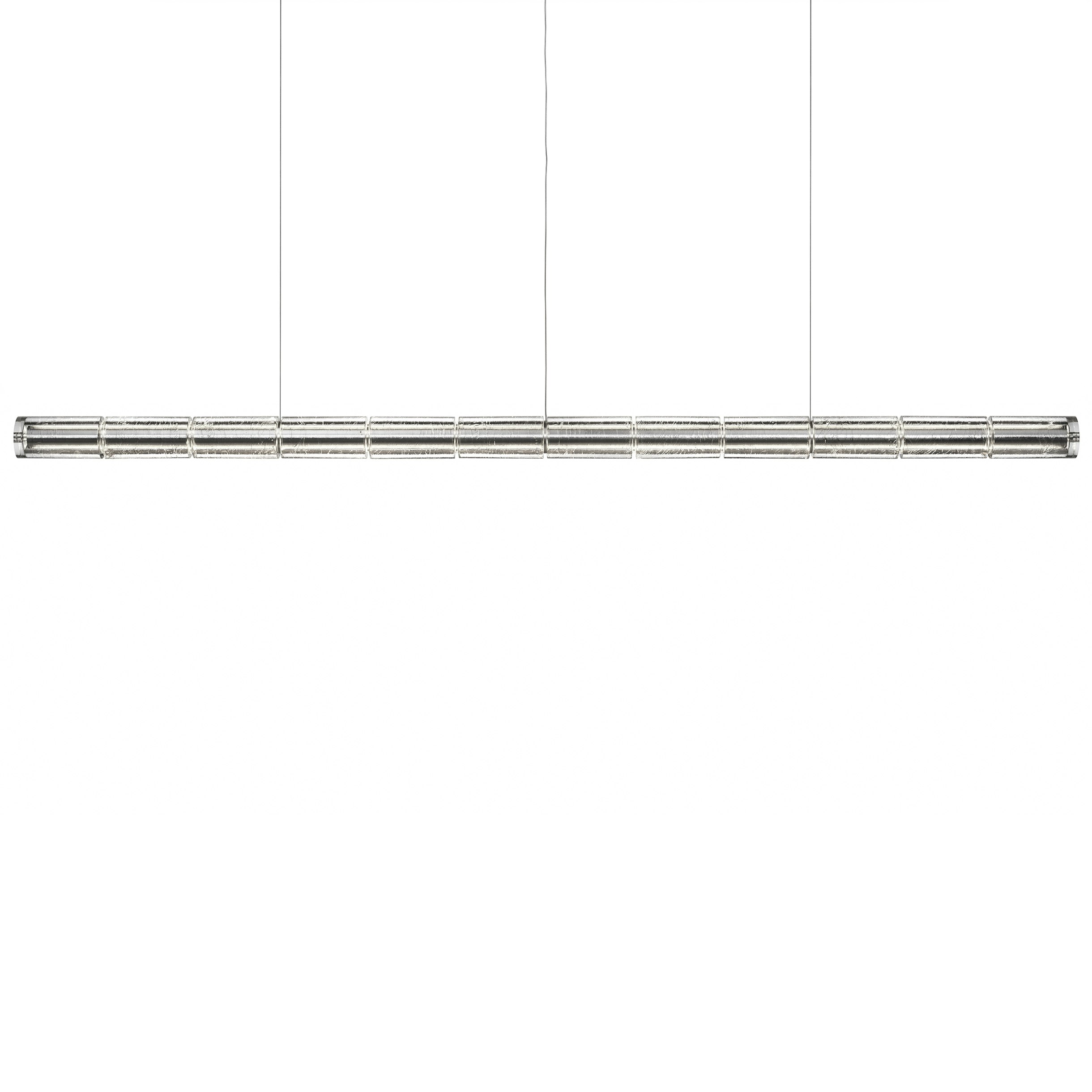

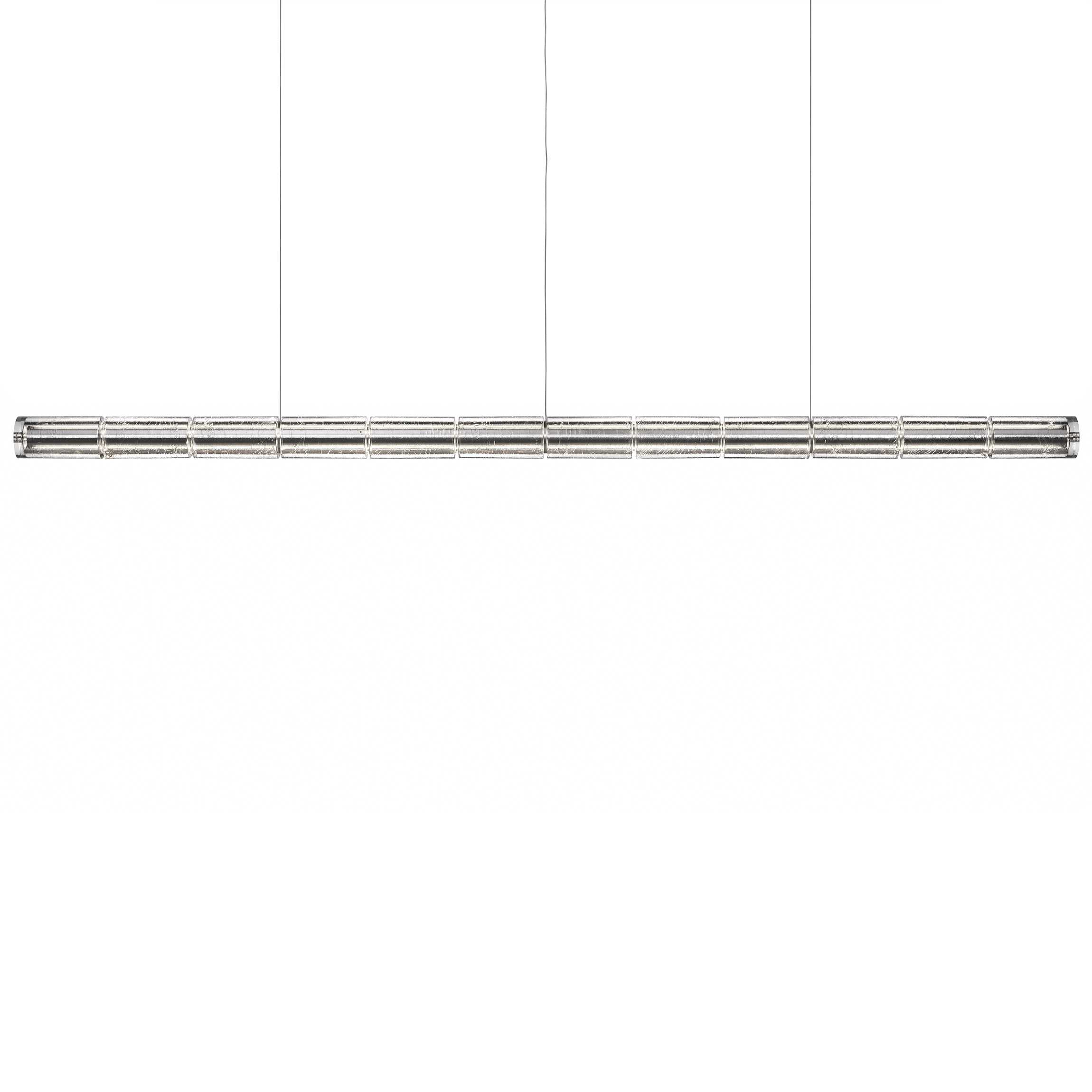

Luce Orizzontale S3

Suspension lamp emitting direct and indirect light. Composed of interconnected cylindrical poured glass modules with an internal structure in polished extruded aluminium housing two linear LED modules. Power supply unit and DALI dimmer integrated into the ceiling rose. Touch control button positioned at one end of the product with control options: TOUCH, PUSH & TOUCH, DALI & TOUCH. Dimming range 10–100%. LED modules are removable and replaceable for maintenance.

165W - 8018lm - 2700K - CRI> 95

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Luce_Orizzontale-S3_1
Main specifications
EAN
8059607081280
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
165
Lumen Output (lm)
8018
Photometric
Lighting type
Direct, Indirect
Light distribution
Symmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
LED current (mA)
700
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmer on board
Dimming interface
Dimmer Integrated
Physical
Colour
Glass
Length (mm)
2488
Cord colour
Clear
Cord length (mm)
2700
Canopy colour
White
Canopy length/diameter (mm)
1316
Canopy width (mm)
61
Canopy height (mm)
78
Net weight (kg)
40.75
Package volume (m3)
0.26
IP internal
20
CE
EAC
CMIM
ENEC
UKCA
RETILAP
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

ULD

Technical Drawings

2D
3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2

PWRSUPRPL2

Spare Parts

F3745000-luce-orizzontale-S3-flos-boom

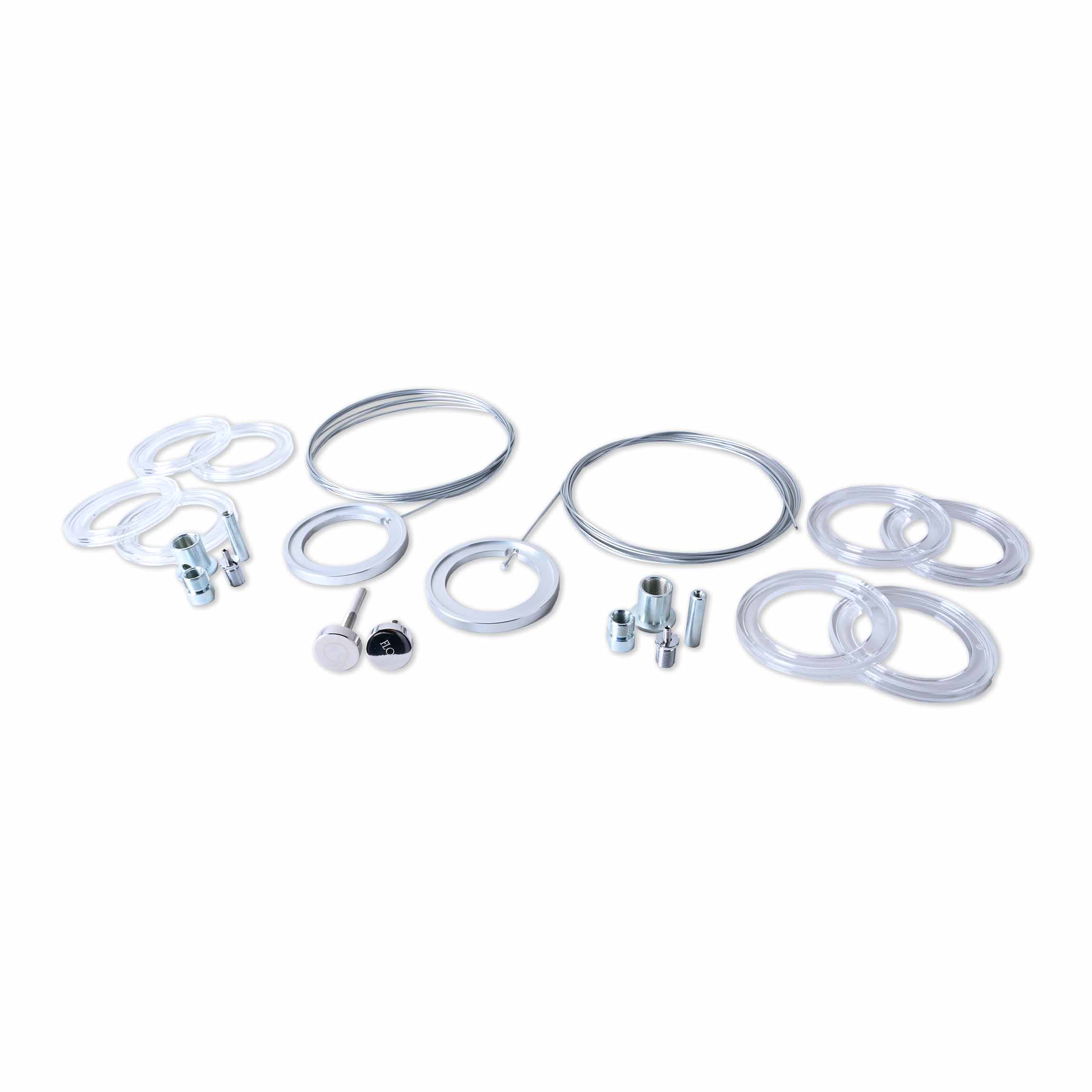

00. Luce Orizzontale Suspension 3 Accessory kit set
RF34046
00. Luce Orizzontale Suspension 3 White ceiling rose cover – old type
RF3748300
00. Luce Orizzontale Driver assembly
RF3750400
01. Luce Orizzontale/Sferica/Cilindrica steel wire cable fixing kit
RF3750100
02. Luce Orizzontale/Sferica/Cilindrica Power supply
RF32976
03. Luce Orizzontale/Sferica/Cilindrica Ceiling rose dimmer
RF36893
04. Luce Orizzontale/Sferica/Cilindrica Ceiling rose cover EUR
RF37946
05. Luce Orizzontale/Sferica/Cilindrica Ring and 4 meters steel wire cable
RF3746200
06. Luce Orizzontale Suspension 3 Linear diffuser
RF3748200
07. Luce Orizzontale Suspension 3 Led board
RF3748400
08. Luce Orizzontale Closed glass difusser
RF3746300
09. Luce Orizzontale Open glass difusser
RF3746400
10. Luce Orizzontale/Sferica/Cilindrica 4-piece spacer ring kit
RF39006
x1
Luce Orizzontale Suspension 3 Accessory kit setRF34046
x1
Luce Orizzontale Suspension 3 White ceiling rose cover – old typeRF3748300
x1
Luce Orizzontale Driver assemblyRF3750400
x1
Luce Orizzontale/Sferica/Cilindrica steel wire cable fixing kitRF3750100
x1
Luce Orizzontale/Sferica/Cilindrica Power supplyRF32976
x1
Luce Orizzontale/Sferica/Cilindrica Ceiling rose dimmerRF36893
x1
Luce Orizzontale/Sferica/Cilindrica Ceiling rose cover EURRF37946
x1
Luce Orizzontale/Sferica/Cilindrica Ring and 4 meters steel wire cableRF3746200
x1
Luce Orizzontale Suspension 3 Linear diffuserRF3748200
x1
Luce Orizzontale Suspension 3 Led boardRF3748400
x1
Luce Orizzontale Closed glass difusserRF3746300
x1
Luce Orizzontale Open glass difusserRF3746400
Thumbnail
x1
Luce Orizzontale/Sferica/Cilindrica 4-piece spacer ring kitRF39006
