Luminator
F3772033 Anthracite

Luminator

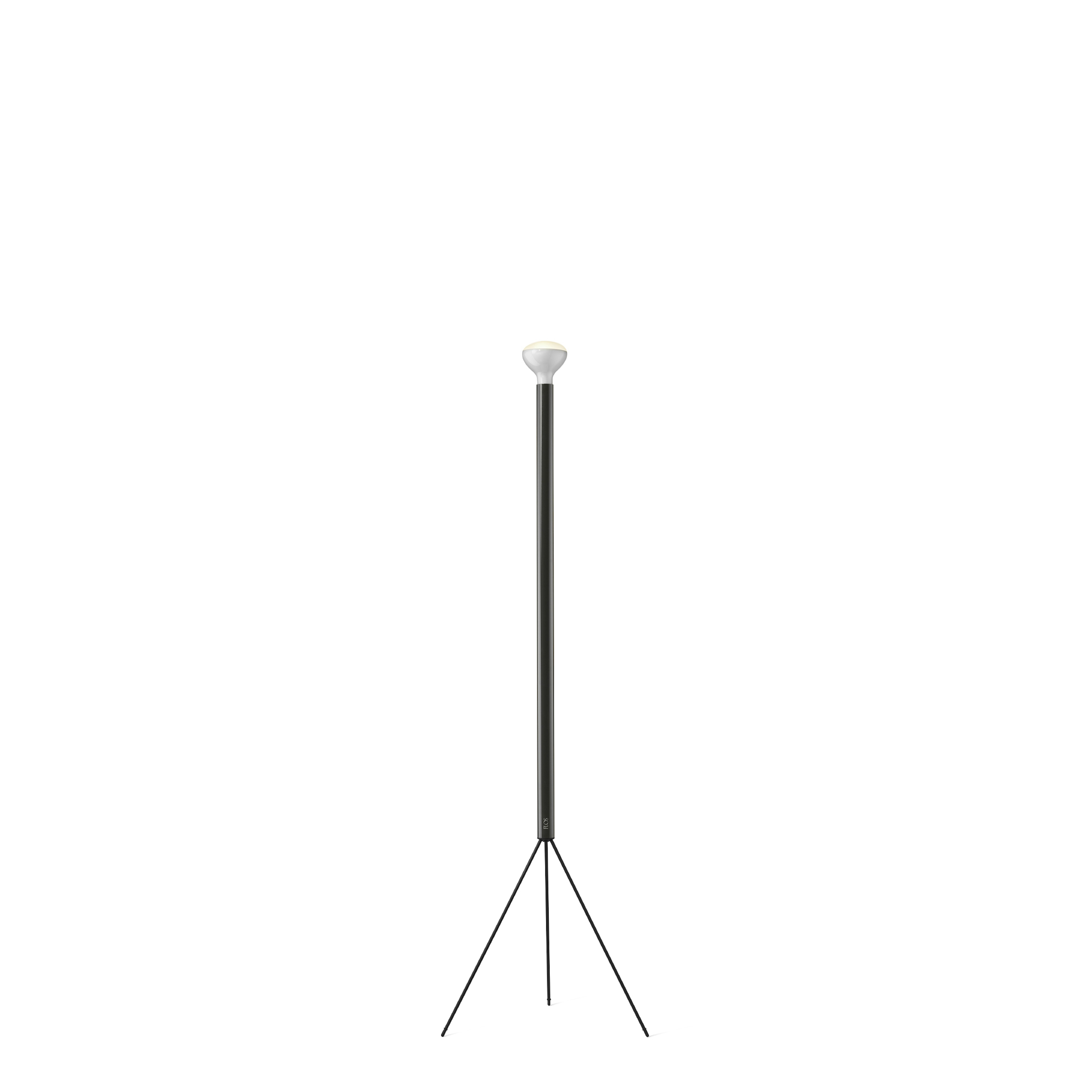

Floor lamp emitting indirect light. A single exposed bulb with reflector sits on a slender painted iron stem, supported by a tripod base in painted galvanised metal. LED light bulb with reflector and dimmer included.

Designed by Achille and Pier Giacomo Castiglioni in 1954, Luminator is an exercise in functional minimalism and one of their earliest lighting designs. A timeless modernist icon, Luminator remains a cornerstone of Flos design history. It embodies their philosophy of stripping away the unnecessary to focus purely on light, structure and purpose, showcasing a radical reductionist approach and industrial aesthetic. Originally released in cool anthracite, it was updated with a bold new palette of striking pop colours in 2022.

Halogen - 105W

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Floor-Luminator
Main specifications
EAN
8059607045435
Mounting
Floor
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGSR
Number of lamps
1
Power (W)
105
Photometric
Lighting type
Indirect
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Switch Integrated (Remote Dimmable)
Plug type
Type C
Batteries inside
No
Physical
Colour
Anthracite
Length (mm)
500
Cord colour
Black
Cord length (mm)
2800
Net weight (kg)
3.6
Package height (mm)
120
Package width (mm)
1515
Package length (mm)
140
Package volume (m3)
0.03
IP internal
20
CE
EAC
CMIM
ENEC
IECEC
RETILAP
Autoprotected Lamp
20
IK00 - 0.00 Joule
Notes

Dimmable Switch included

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Spare Parts

F3772033-luminator-dim-flos-boom
01. Luminator Black leg with ring
RF3770231
02. Led Rondo’ dimmer 220/240v 40-250w – 100/127v 10-150w - 4-100w
RF28045
