Maap
F3817009

Maap W2

Wall lamp emitting diffused light. LED sources mounted on an iron support fixed to a round iron back plate. Lamp body in ultra-lightweight tear-resistant fibre material. Casing magnetically secured to the metal frame using large magnetic buttons. Designed to be manually crumpled to create its final form.

LED retrofit - 8 x 160W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Downlight-Maap-W2
Main specifications
EAN
8059607079577
Mounting
Wall
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
LED retrofit
Lamp holders
E27
Number of lamps
8
Power (W)
160
System power (W)
160
Photometric
Lighting type
Total
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Length (mm)
2400
Net weight (kg)
7.15
Package volume (m3)
0.14
IP internal
20
CE
UL
EAC
CMIM
ENEC
20

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Technical Drawings

2D
3D

Accessories & Power Supply

Optional(1)

Bulbs

Thumbnail
x8
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 2700K A70RF32563
Thumbnail
x8
NOT INCLUDEDLED Lamp E27 15W 2700K T38RF32288
Thumbnail
x8
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 3000K A70RF32564
Thumbnail
x8
NOT INCLUDEDLED Lamp E27 15W 3000K T38RF32289

Spare Parts

F3817009-maap-w2-flos-boom
01. Maap W Front plate
RF38261
02. MAAP W2 Tyvek diffuser
RF38278
03. MAAP W1-W2-W3 Kit of n°4 screws
RF3810100
Thumbnail
x1
Maap W Front plateRF38261
Thumbnail
x1

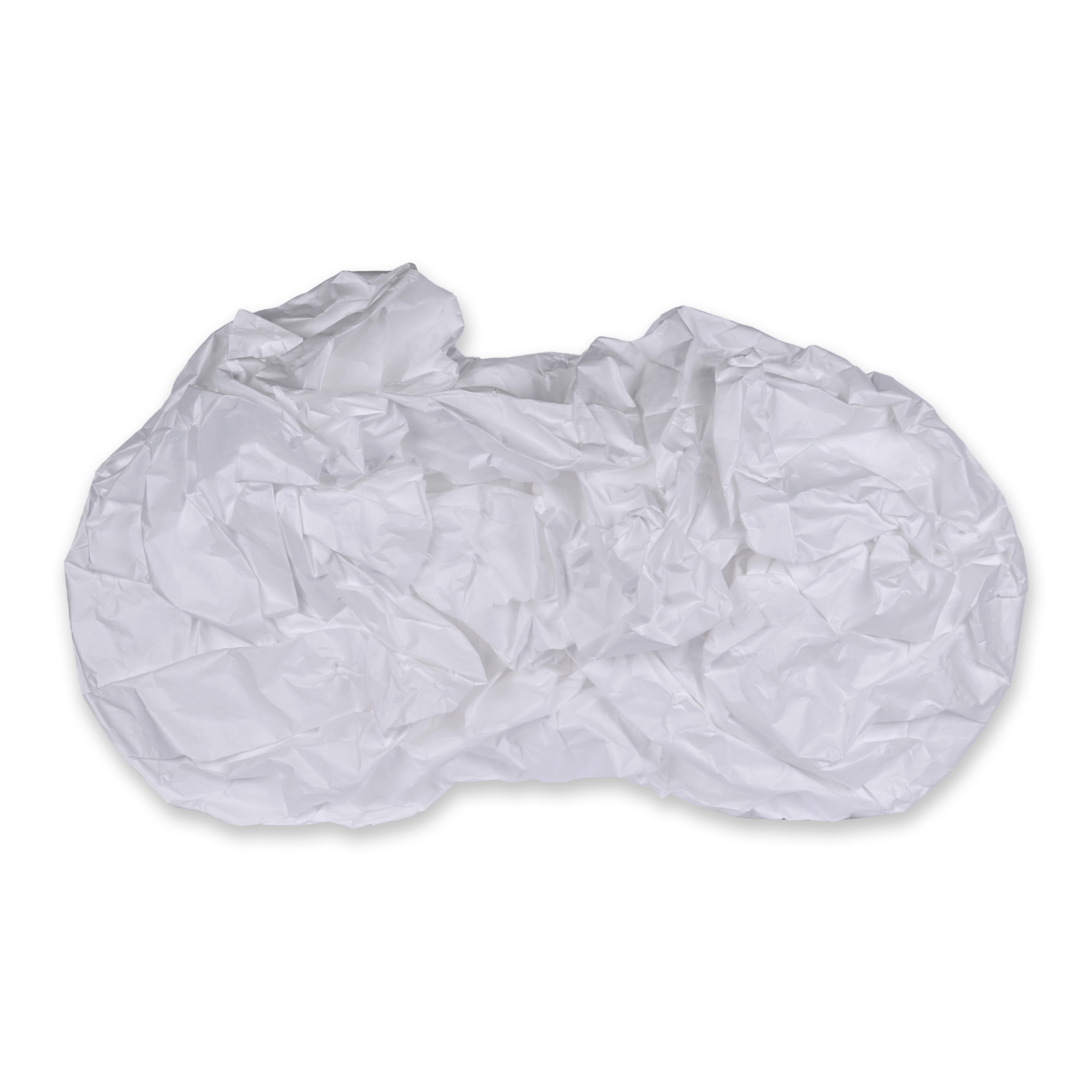

MAAP W2 Tyvek diffuserRF38278
x1
MAAP W1-W2-W3 Kit of n°4 screwsRF3810100
