Mayday
F038AACA0ZZLeaf Green

Mayday Outdoor

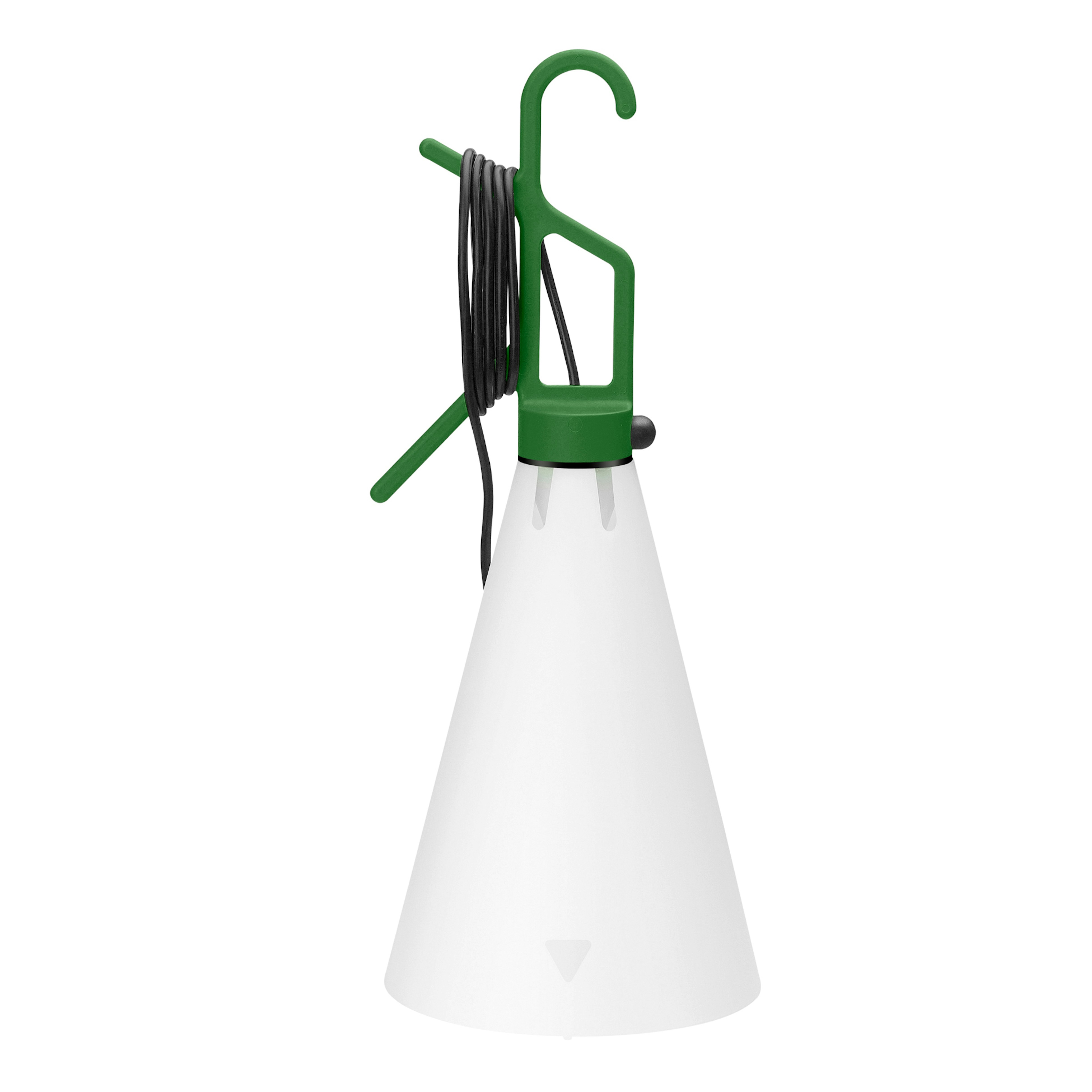

Multipurpose luminaire suitable for outdoor use. Features a hook/handle that doubles as a cable winder and an injection-moulded opaline conical diffuser made from sustainable polypropylene produced from industrial process waste. Button switch located on the handle. 6 meters long outgoing cable, fixed to the handle by a cable guide, suitable for outdoor use with Schuko IP44 plug. Light source protected from atmospheric agents by a watertight transparent polymethylmethacrylate capsule, sealed by an elastomer gasket to guarantees IP 65 protection. As no glue is used in the assembly process, Mayday is easy to dismantle and properly recycle.

Designed by Konstantin Grcic in 1999, Mayday is a multipurpose lamp conceived as a functional tool. Its sturdy build, handle and long cable make it highly portable, while a subtle triangular notch in the diffuser even allows it to hang from a nail. In short, anything is possible with Mayday. The name nods to both the distress call and the optimism of spring. A modern icon now made with sustainable materials, it reflects Grcic’s belief in democratic, purposeful design. Mayday won the Compasso d’Oro in 2001.

LED retrofit - 10W

Also available in:
Technical Drawing
DR-Mayday_Outdoor
Main specifications
EAN
8054793558141
Mounting
Suspension
Light source type
Bulb
Light sources included
No
Lamp category
LED retrofit
Number of lamps
1
Power (W)
10
Schematic light drawing
F038AACA0ZZ_-_3000K
Photometric
Lighting type
Direct
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Emergency
No
Physical
Colour
Leaf Green
Orientation
Fixed
Net weight (kg)
0.91
Package height (mm)
225
Package width (mm)
225
Package length (mm)
550
Package volume (m3)
0.03
IP internal
65
UL
RG
CE
65
IK07 - 2.00 Joule
Notes

Bulb not included. LED: max 10W - E14
