Mile
F015H21A012Forest Green

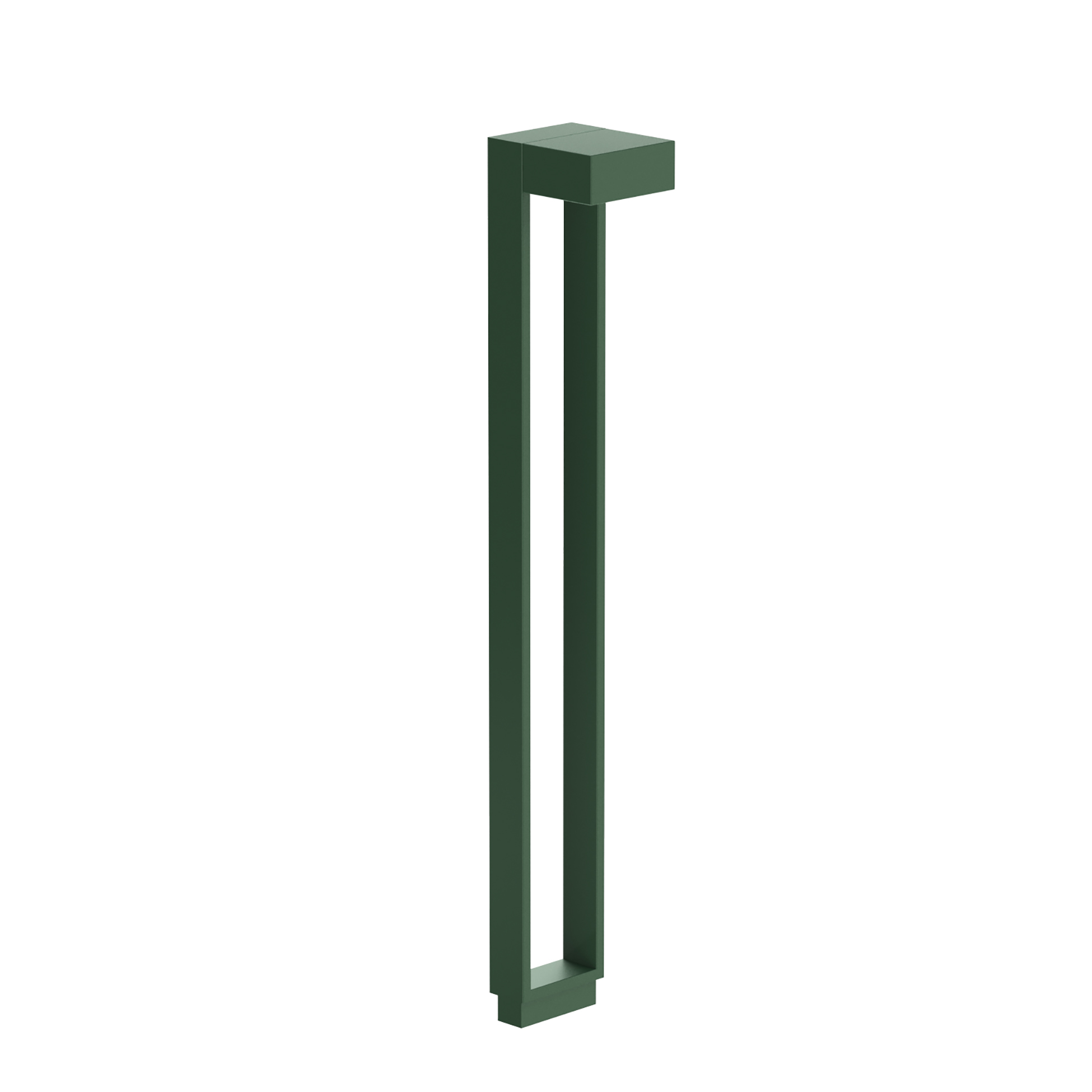

Mile Bollard 1 900 Mono

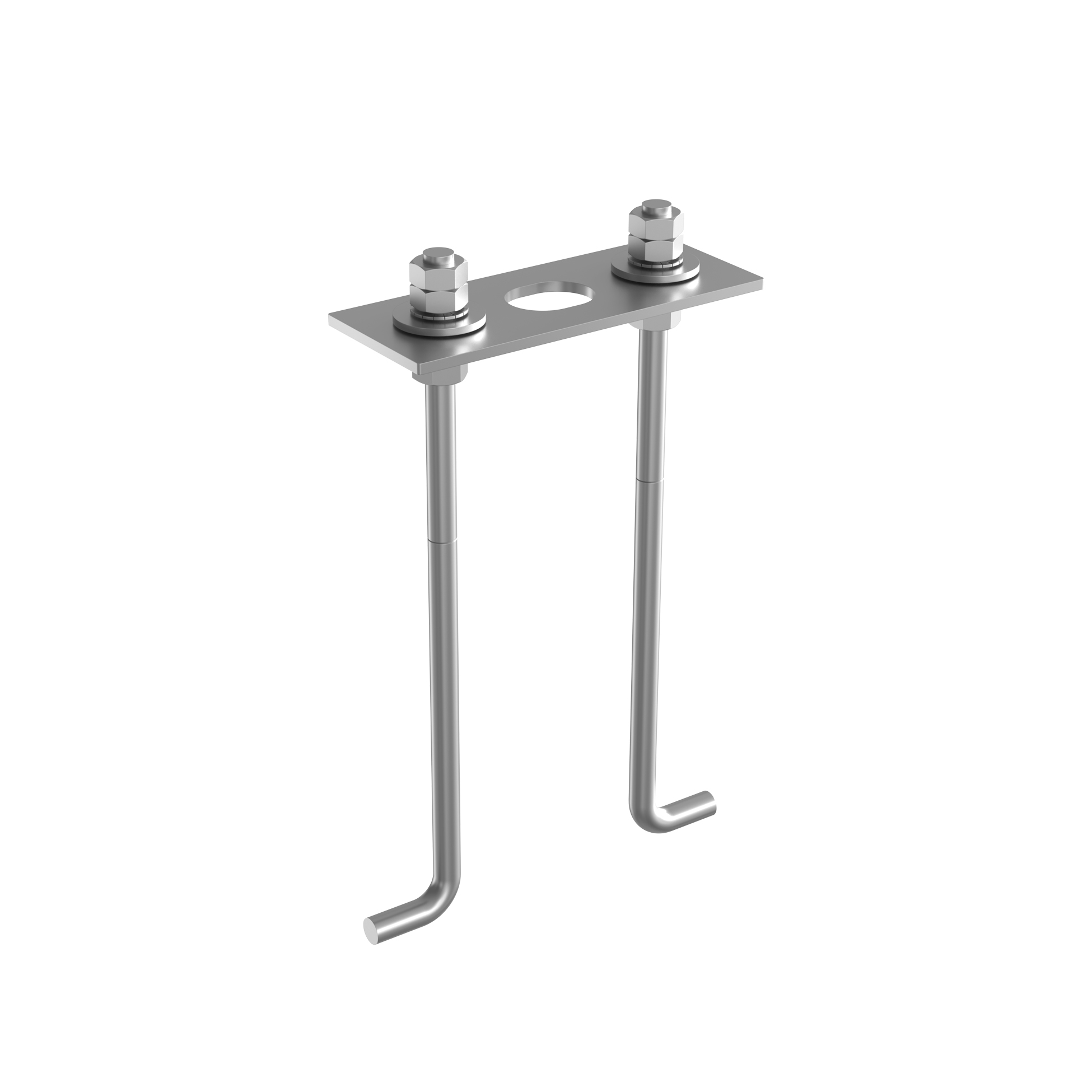

LED light source included. Integrated 220-240V ON/OFF electrical power. Equipped with a length of neoprene cable and an IP68 2-way anticondensation H2O stop seal system. The device may be installed on any flooring with anchors. Anchoring plate for installation on flooring laid over concrete sold separately.

283lm - 2700K - CRI> 80

Find a Flos store
Technical Drawing
DR_MILE-BOLLARD-1-900-MONO
Main specifications
EAN
8054793234069
Mounting
Ground
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
System power (W)
4.9
Lumen Output (lm)
283
Schematic light drawing
F015H21A0XX
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
2700
CRI>
80
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
Forest Green
Orientation
Fixed
Net weight (kg)
3.33
IP internal
65
CE
RG
ENEC
UKCA
IECEC
65

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D
Bim

Ecodesign and Energy Labelling

REPLACEABLE2

PWRSUPRPL2

Accessories & Power Supply

Optional(2)
