F1490009Glass

Mini Button

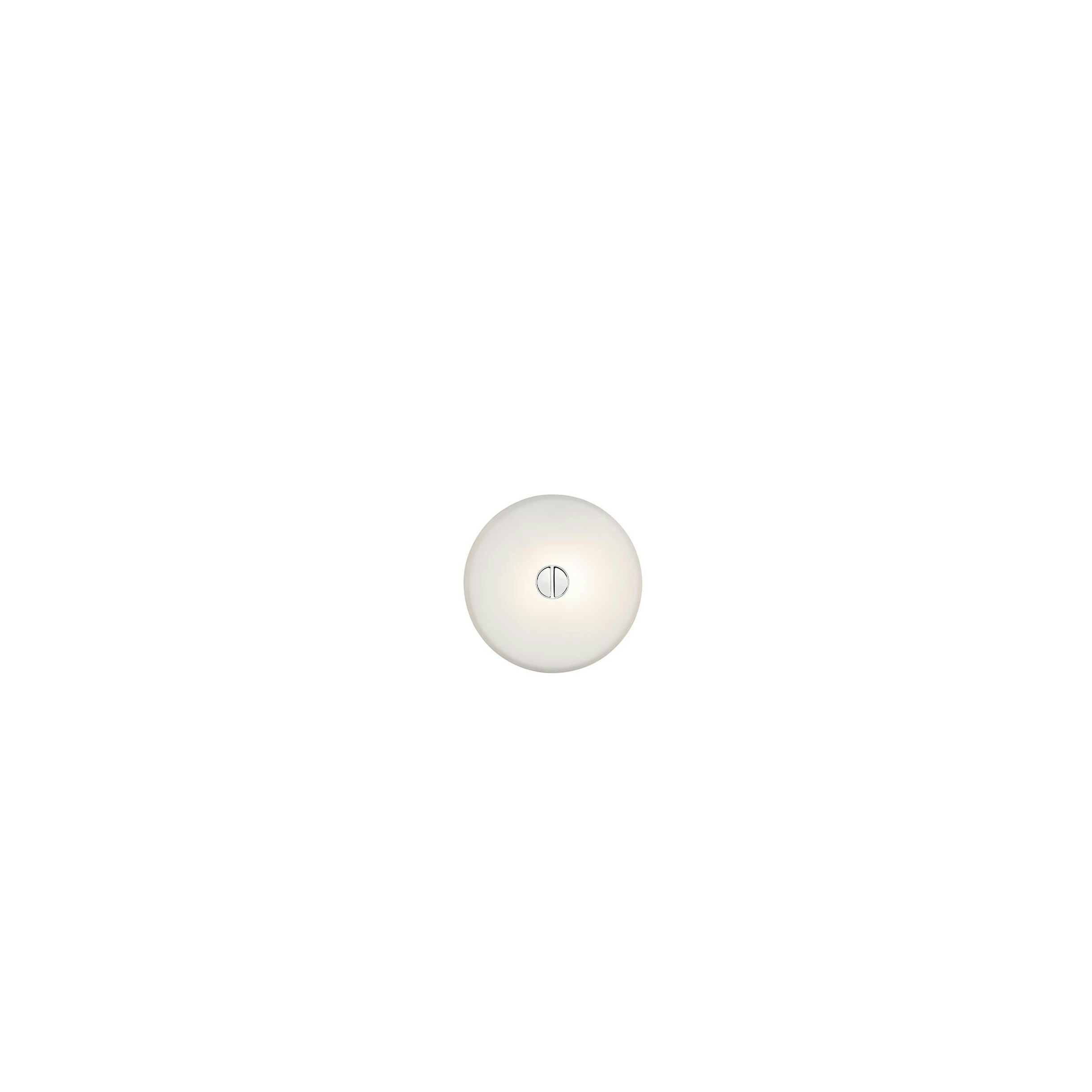

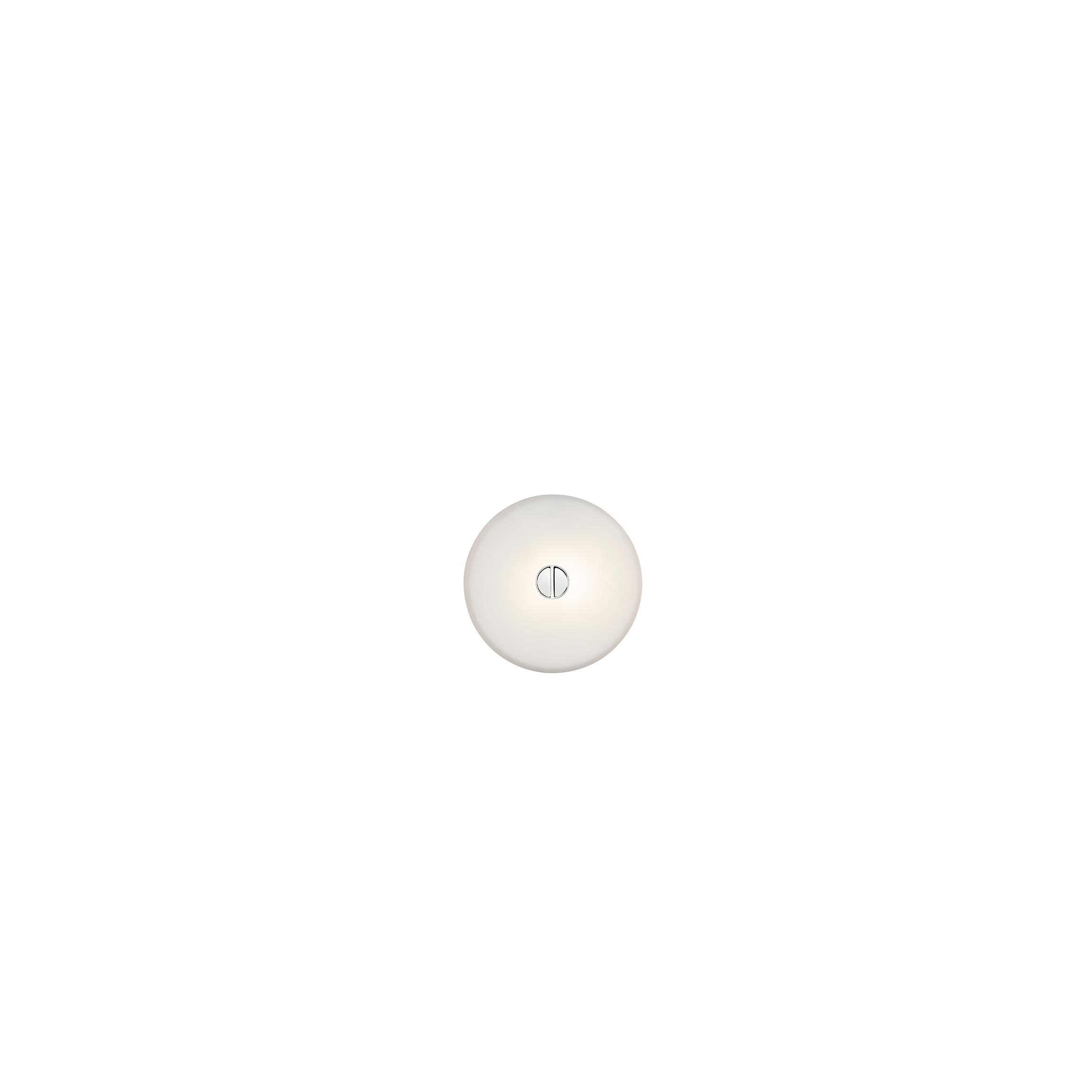

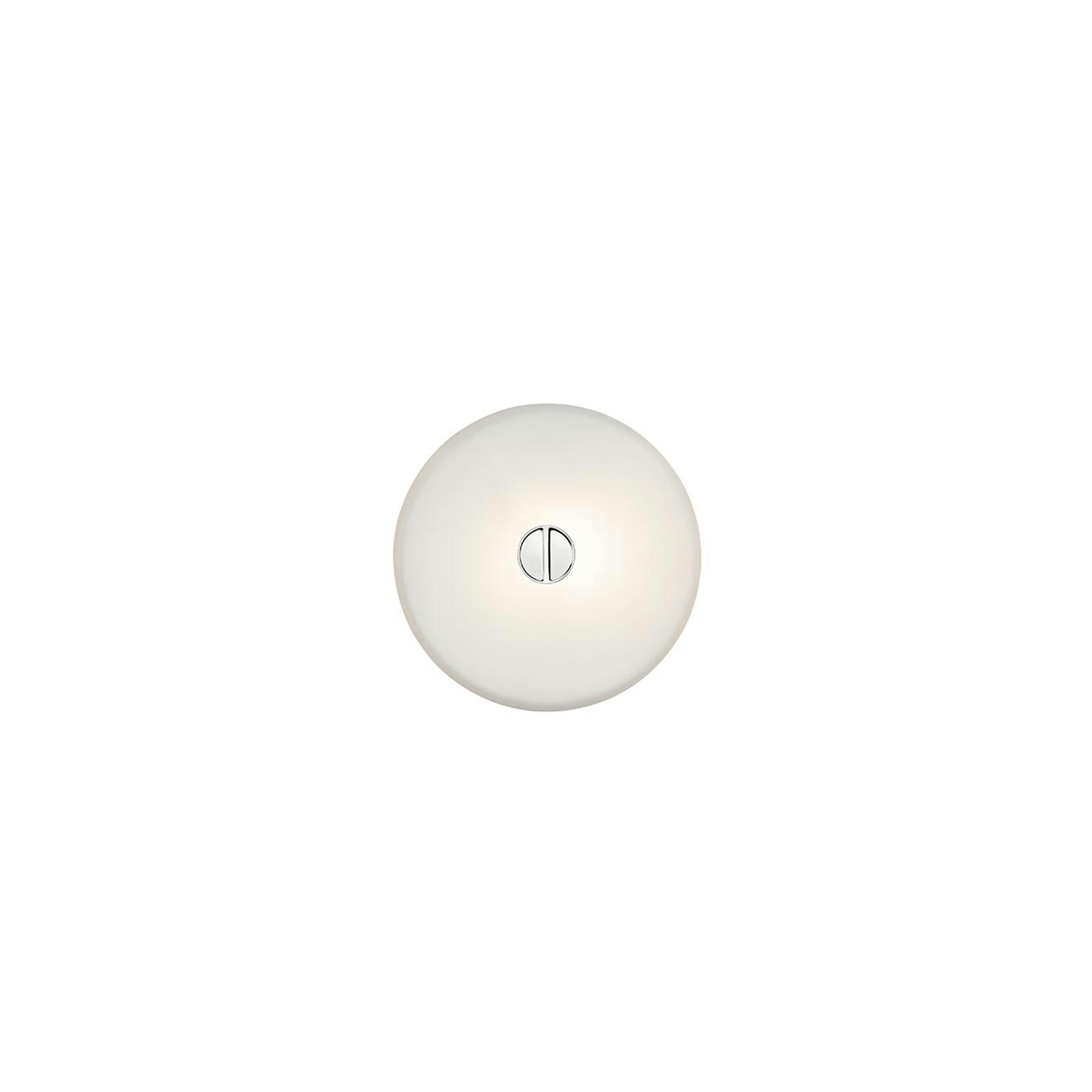

Ceiling or wall-mounted lamp emitting diffused light, suitable for indoor and outdoor use. Die-cast aluminium body and wall fitting with silicone elastomer dust and waterproof seal. Diffuser available in opaline glass. IP44-rated for wet locations.

Halogen - 25W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Button-Mini
Main specifications
EAN
8059607015179
Mounting
Ceiling, Wall
Environments
Indoor wet location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
G9
Ilcos
HSGS
Number of lamps
1
Power (W)
25
Schematic light drawing
mini-button-ceiling-wall-lissoni-flos-F1491009-curva-fotometrica-01
Photometric
Lighting type
Total
Light distribution
Roto symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Glass
Length (mm)
140
Net weight (kg)
0.65
Package height (mm)
70
Package width (mm)
190
Package length (mm)
205
IP internal
44
CE
EAC
CMIM
UKCA
IECEC
RETILAP
Autoprotected Lamp
44

Download

Tech spec pdf
Mounting instructions

Bulbs

x1
NOT INCLUDEDLED BiPin Lamp G9 3,2W 2700K DimmableRF36378
x1
NOT INCLUDEDLED Lamp 2W 240lm G9 220-240 2700K T13 Non DimmableRF26520

Spare Parts

F1490009-minibutton-flos-boom

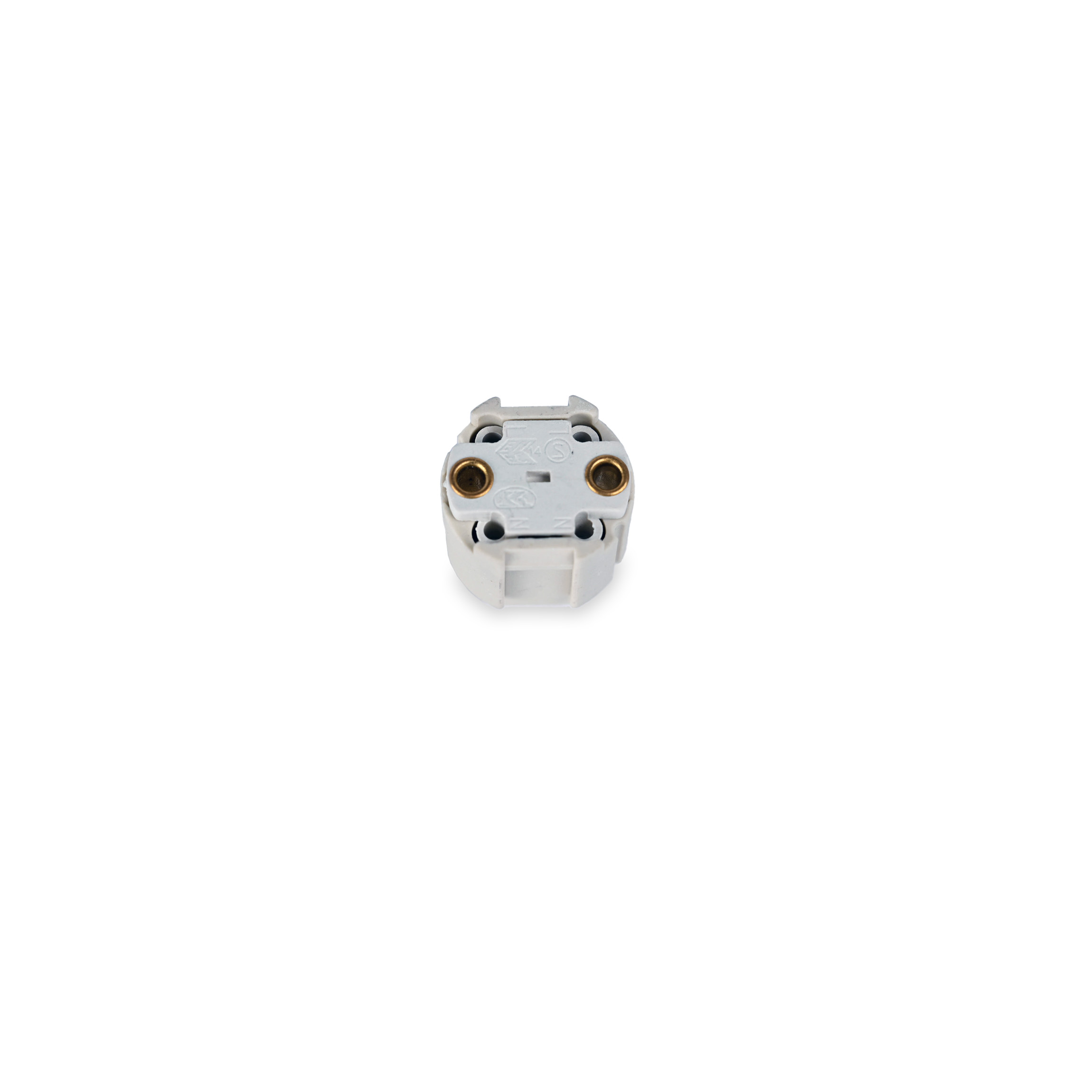

01. G9 K540D lampholder
RF31587
02. Mini Button Glass diffuser assembly
RF1490109
x1
G9 K540D lampholderRF31587
Thumbnail
x1
Mini Button Glass diffuser assemblyRF1490109
