Glo-Ball
F4190009White

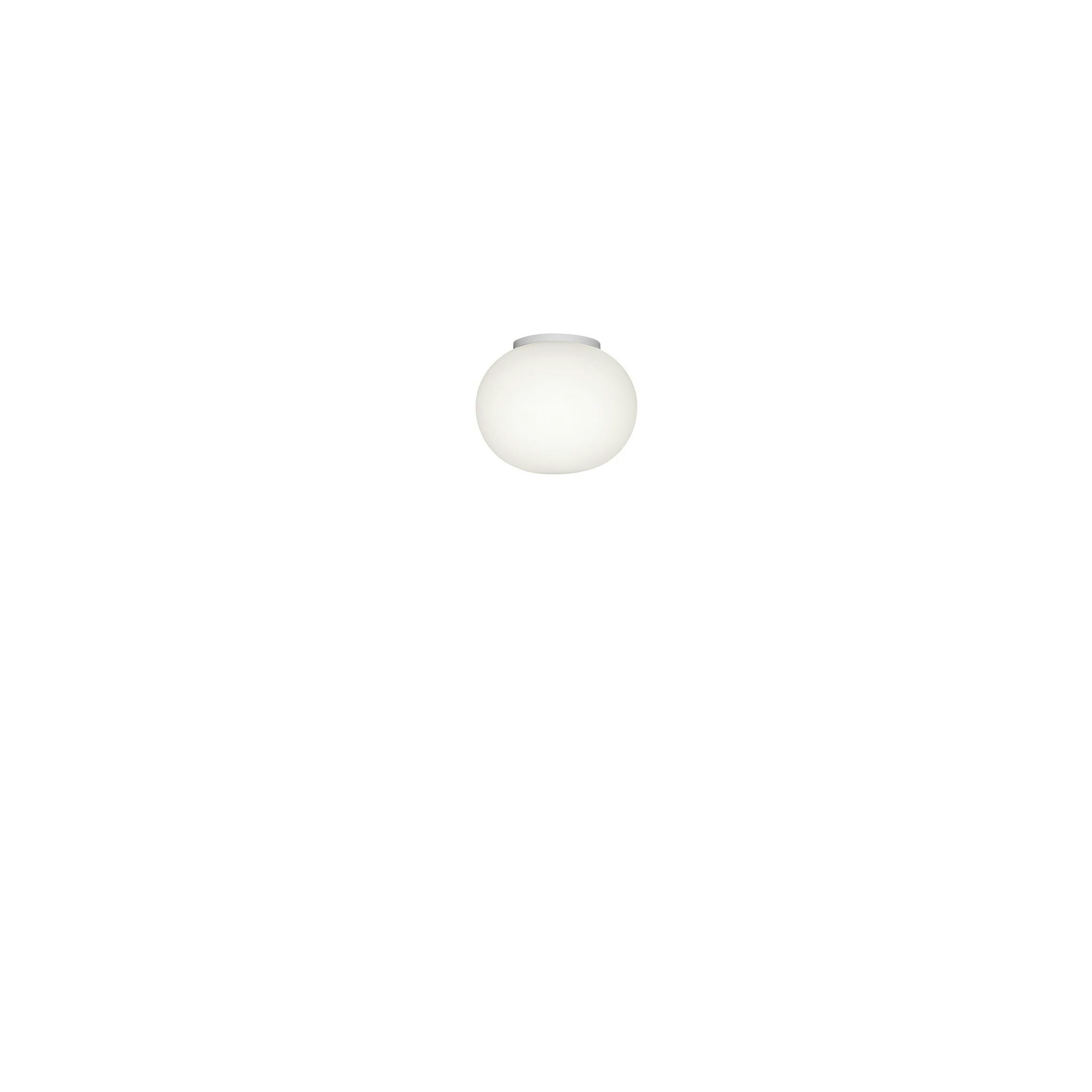

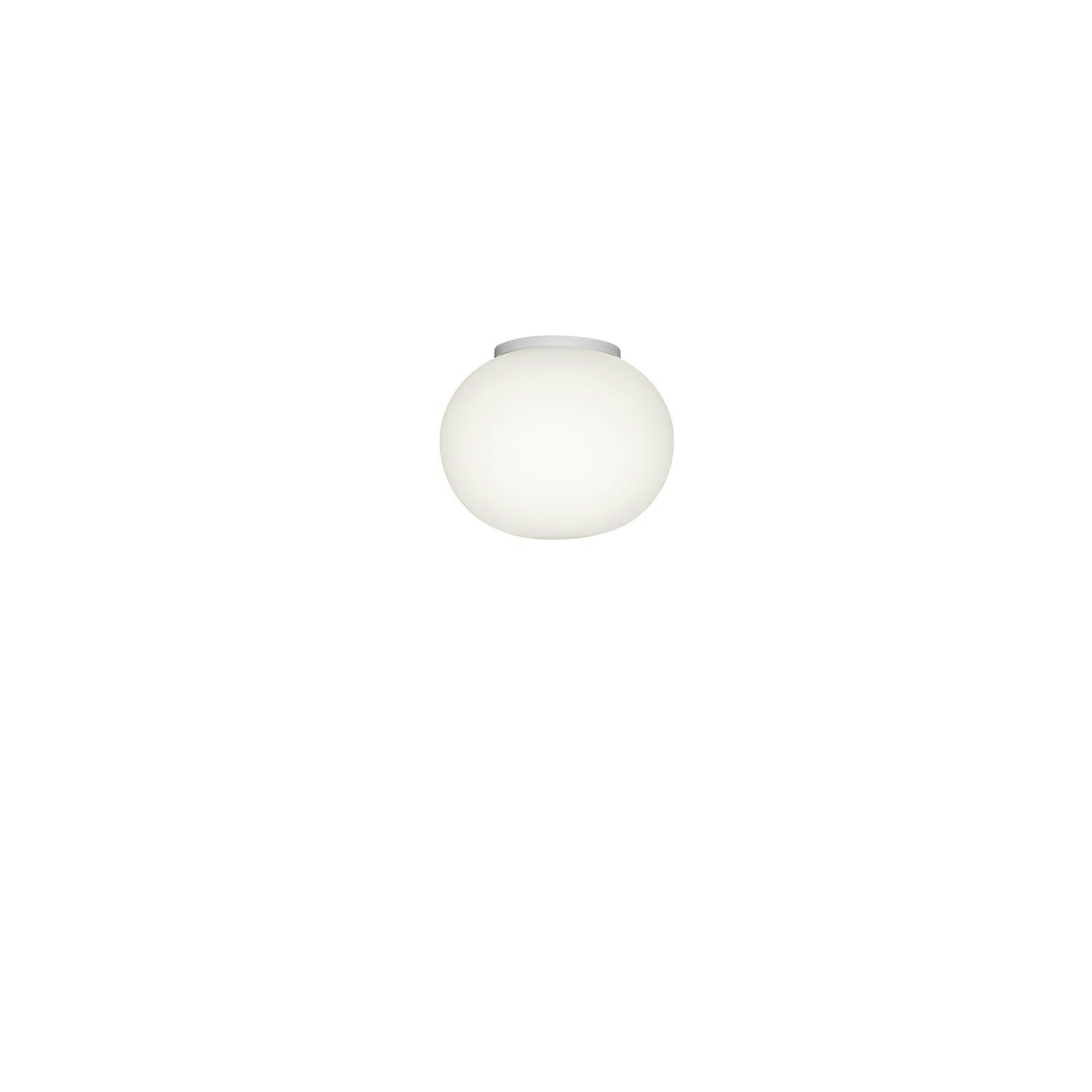

Mini Glo-Ball Ceiling/Wall Mirror

Ceiling-, wall- or mirror-mounted lamp emitting diffused light. Features a diffuser made of externally acid-etched, hand-blown, flashed opaline glass with a white, injection-moulded PPS threaded ring nut.

Halogen - 25W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Ceiling_Wall-Glo_Ball-Mini
Main specifications
EAN
8059607019986
Mounting
Ceiling, Wall
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
G9
Ilcos
HSGS
Number of lamps
1
Power (W)
25
Schematic light drawing
F4194009WMINI_GLO-BALL_CW_25W-HL
Photometric
Lighting type
Total
Light distribution
Roto symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
White
Length (mm)
190
Net weight (kg)
0.29
Package height (mm)
190
Package width (mm)
190
Package length (mm)
190
Package volume (m3)
0.01
IP internal
40
CE
CCC
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
Autoprotected Lamp
Gwt 850 (º)
40
IK05 - 0.70 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D
Bim

Bulbs

x1
NOT INCLUDEDLED BiPin Lamp G9 3,2W 2700K DimmableRF36378
x1
NOT INCLUDEDLED Lamp 2W 240lm G9 220-240 2700K T13 Non DimmableRF26520

Spare Parts

F4190009-mini-glo-ball-cw-flos-boom
01. Mini Glo-Ball Ceiling/Wall & Table new diffuser assembly
RF4190400
02. Ring nut & gasket kit
RF4190300
03. G9 5600 lamp holder
RF12818
Thumbnail
x1
Mini Glo-Ball Ceiling/Wall & Table new diffuser assemblyRF4190400
Thumbnail
x1
Ring nut & gasket kitRF4190300
Thumbnail
x1
G9 5600 lamp holderRF12818
