06.1987.14 Black

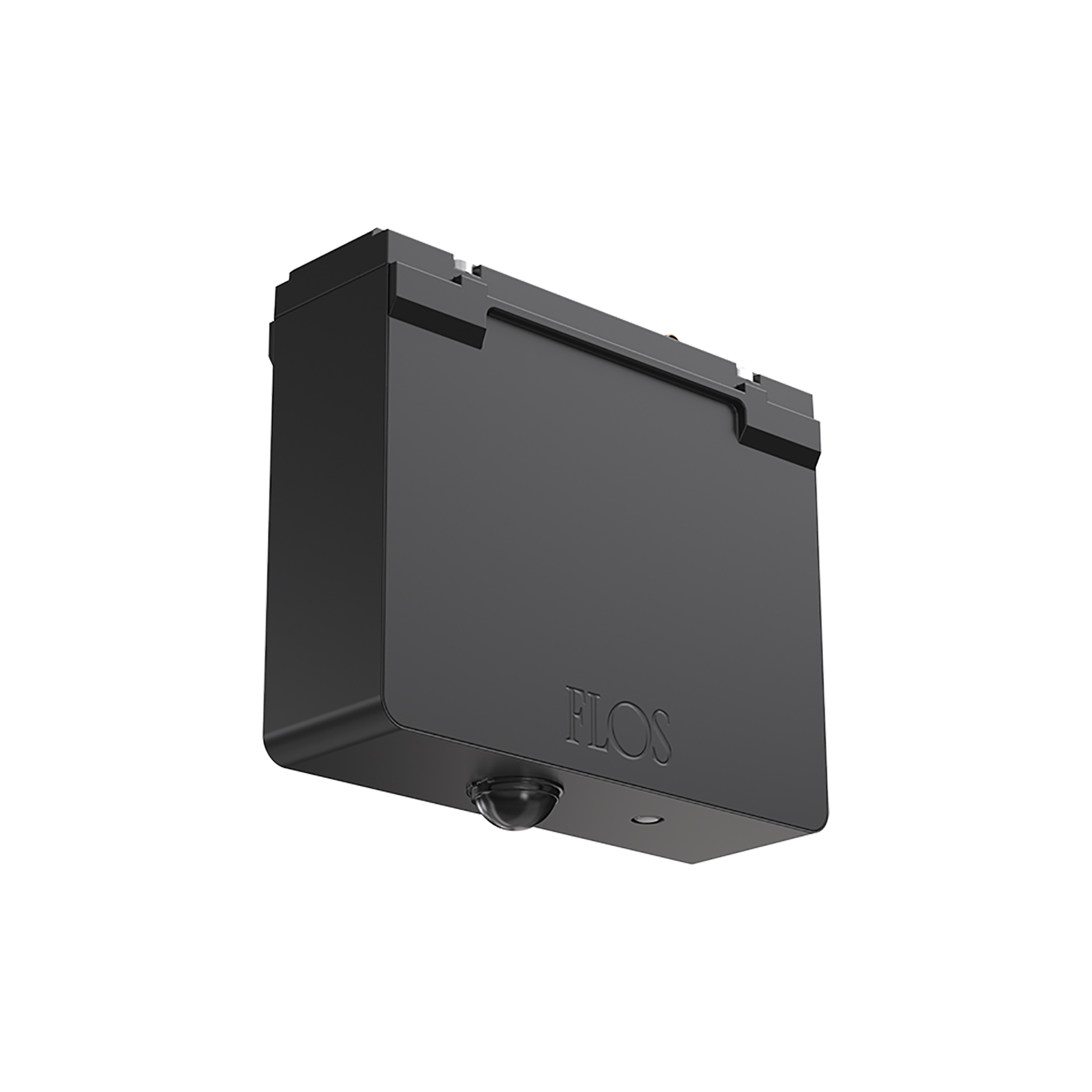

Multifunction Smart Device for Running Magnet & Fast Track
New

Multifunction Smart Device. Triple functionality 3x1: Casambi signal repeater, light sensor and presence detector. FLOS Control® by Casambi.

Technical Drawing
DR-06.1987-Multifunction-Smart-Device
Main specifications
Mounting
Track
Environments
Indoor dry location
System power (W)
0
Electrical
LED current (mA)
2
Dimmable
Yes
Power supply type
Dimmable Casambi
Physical
Colour
Black
Net weight (kg)
0.14
Package height (mm)
6
Package width (mm)
21
Package length (mm)
13
IP internal
20
CE
UKCA
RETILAP
Notes

Signal repeater:
This product allows to extend the reach or range of the Casambi mesh network.
o Installation is extremely simple: you just have to insert the product in the track and add it to the Casambi network through the App.

Ambient light sensors:
This product allows monitoring of ambient light levels.
o The luminosity data can be used to automatically regulate the brightness of the luminaires that are connected to the Casambi network.
o The sensor has a measurement range between 10 and 1000 lux.

Presence:
This product incorporates a presence sensor capable of detecting the passage of people through its detection area.
o The sensor has a detection area of 12 meters in diameter when installed at a height of 3 meters.

Download

Tech spec pdf
Mounting instructions
Mounting instructions
