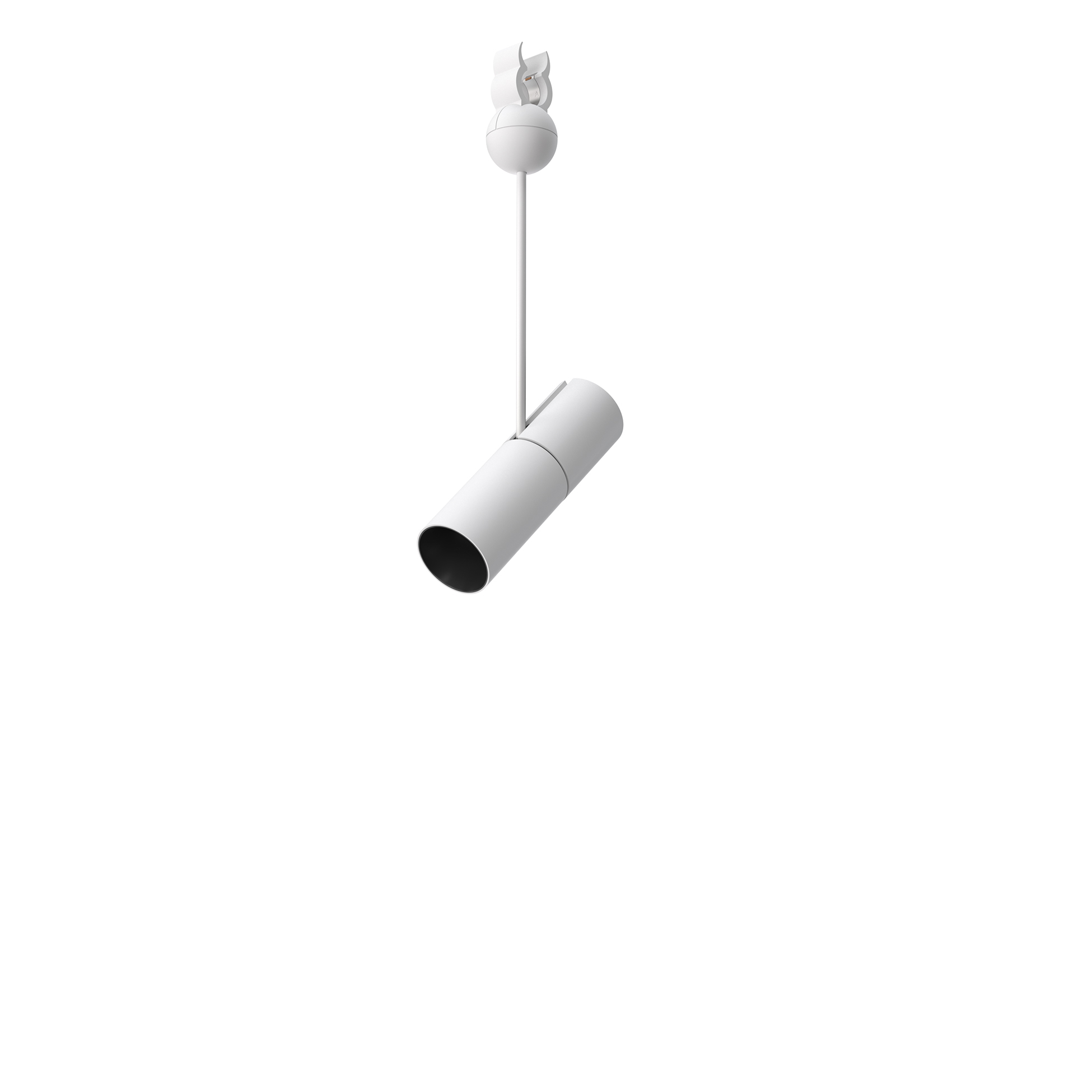

05.2967.C5 WhiteMy Circuit Light Shadow Spot Ø45
Designed by Michael Anastassiades,FLOS Architectural, 2023
LED lighting module for installation in the My Circuit system. Optical with double focal lens technology, low glare and high visual comfort. Adjustable by tilting and turning. In the downlight position, the track connector arm is perfectly flush with the product. Casambi version for wireless control.
682lm - 3000K - CRI> 90 - Beam° 31
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Number of lamps
1
System power (W)
8
Source flux (lm)
844
Lumen Output (lm)
682
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
Rf fidelity index
91
Rg gamut index
100
LED Life / Failure Ratio
L70B50>45.000h_Tc85ºC
Beam angle C0-180 (º)
31
Beam angle C90-270 (º)
31
Extreme cut off
Yes
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
48
LED current (mA)
200
Power supply
Remote excluded
Dimmable
No
Power supply type
Non Dimmable
Physical
Colour
White
Orientation
Adjustable
Rotation (º)
360
Transversal tilting (°)
90
Length (mm)
159
Net weight (kg)
0.36
IP internal
20
Notes
Ask us about bespoke track connector arm lengths.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
