My Disc
F1903009 Matte White

My Disc

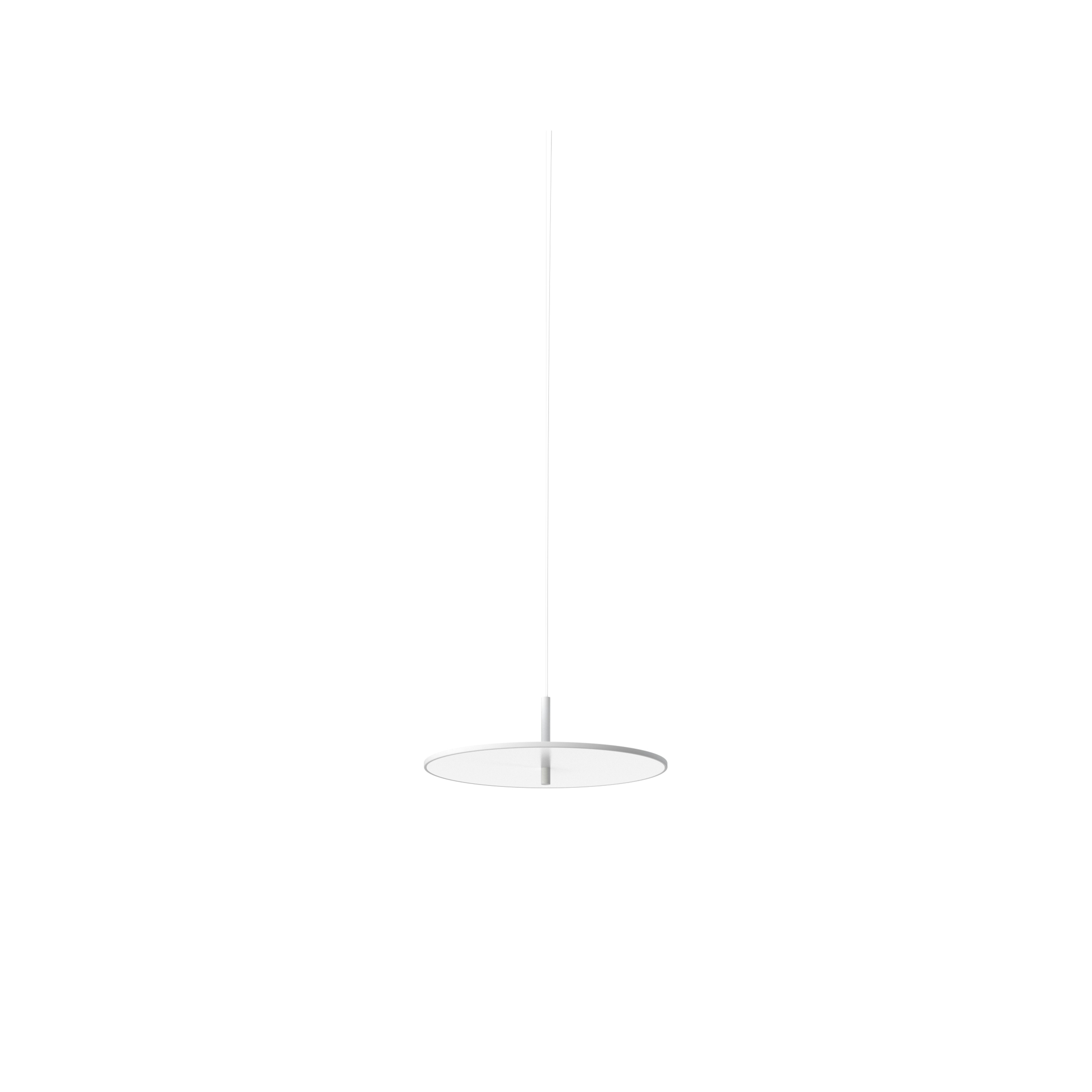

Suspension lamp emitting diffused light. Composed of a slender horizontal aluminium disc intersected by a vertical polycarbonate stem, with a silk-screened PMMA diffuser and Edge Lighting technology (CRI 90). Brightness adjustable from 10–100%. Canopy with integrated electronics to support PUSH, 1–10 V and DALI dimming systems sold separately.

Inspired by childhood memories of electric slot-car tracks, Michael Anastassiades conceived My Circuit as a flexible ceiling system where light follows imagination. Its patented rubber track, free to curve and bend, becomes part of the architecture, recalling the plaster friezes and stuccoes of 19th-century interiors. More than a track, it is a poetic lighting language: a backbone that adapts to space and intent, enabling endless possible layouts animated by minimalist luminous modules.

42W - 2194lm - 2700K - CRI> 90

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-My_Disc
Main specifications
EAN
8059607057032
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
42
Lumen Output (lm)
2194
Schematic light drawing
F1903009WMY-DISC_42W-LED
Photometric
Lighting type
Total
Light distribution
Roto symmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Main voltage (Vac)
48
Forward voltage (V)
48
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Electronic 48V
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Matte White
Length (mm)
600
Cord colour
White
Cord length (mm)
3000

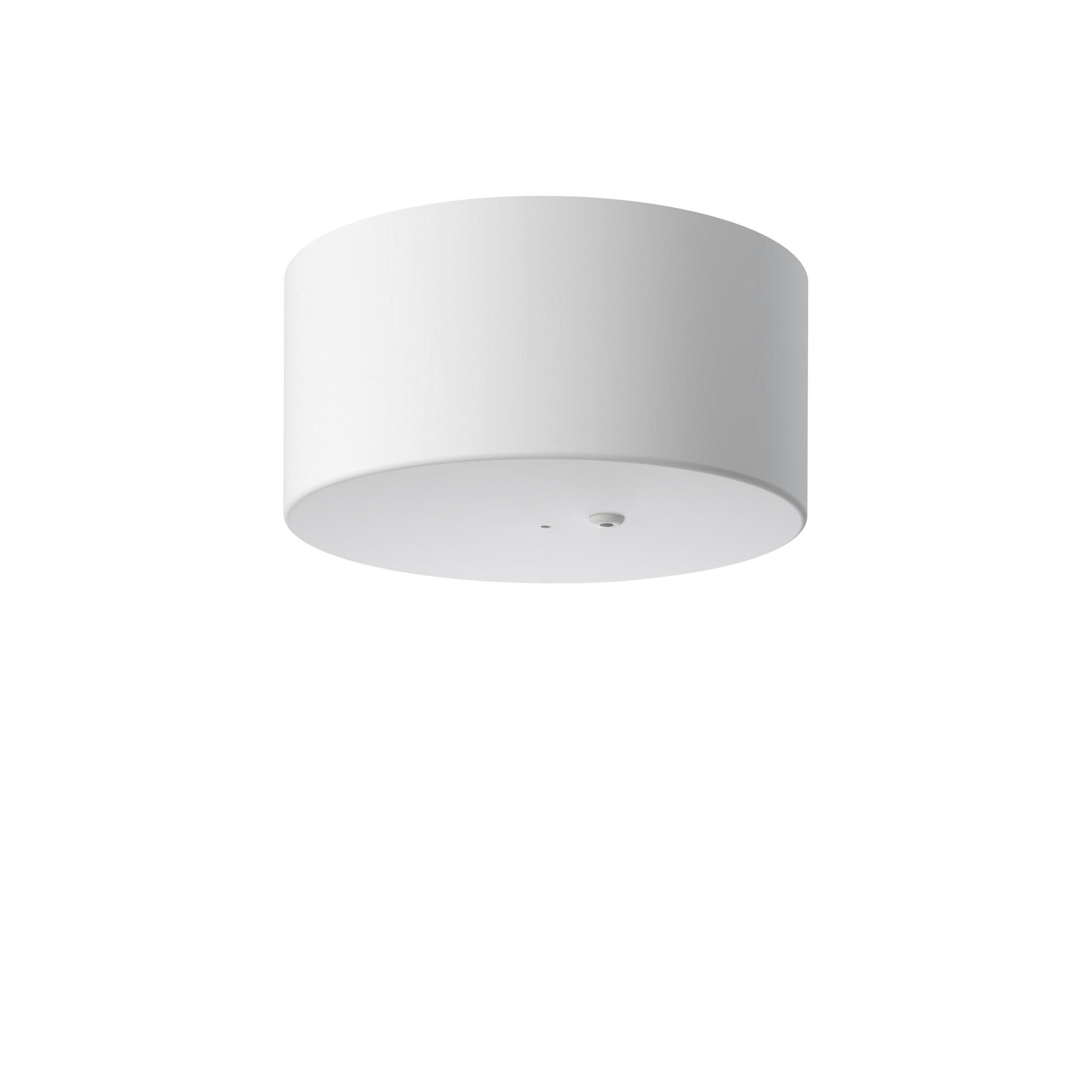

Canopy colour
White
Canopy length/diameter (mm)
149
Canopy height (mm)
71
Net weight (kg)
4.5
Package height (mm)
300
Package width (mm)
695
Package length (mm)
695
Package volume (m3)
0.14
IP internal
20
CE
RG
UL
EAC
CMIM
ENEC
UKCA
RETILAP
Flammable Surface
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

Required (1)
