My Dome

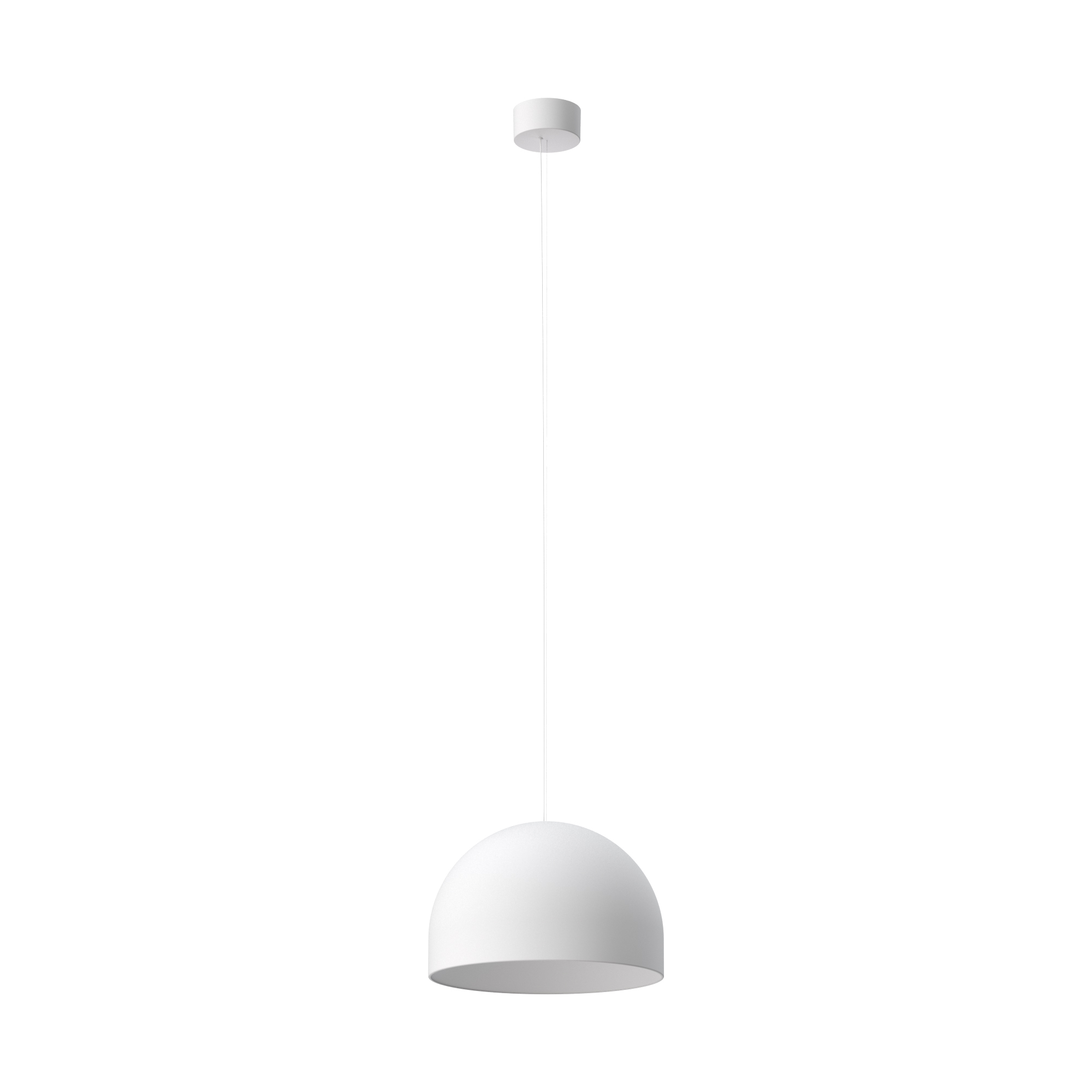

Suspension lamp emitting direct light. Composed of a half-sphere that evenly projects light downwards. Integrated white sandblasted diffuser shields the light source to ensure visual comfort and optimal light distribution. Brightness adjustable from 10–100%. Canopy with integrated electronics to support PUSH, 1–10 V and DALI dimming systems sold separately.

LED retrofit - 2 x 40W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-My_Dome
Main specifications
EAN
8059607063606
Mounting
Suspension
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
LED retrofit
Lamp holders
E27
Number of lamps
2
Power (W)
40
Schematic light drawing
F1915009WMY-DOME_2X18W-LED
Photometric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Power supply type
Electronic 48V, Dimmable
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
White
Cord colour
White
Cord length (mm)
2700
Canopy length/diameter (mm)
130
Canopy height (mm)
40
Net weight (kg)
4
Package height (mm)
530
Package width (mm)
630
Package length (mm)
630
Package volume (m3)
0.21
IP internal
20
CE
RG
UL
CCC
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Bulbs

Thumbnail
x2
NOT INCLUDEDLED Lamp E27 15W 2700K T38RF32288
Thumbnail
x2
NOT INCLUDEDLED Lamp E27 15W 3000K T38RF32289

Spare Parts

F1915009-my-dome-flos-boom
01. My Sphere/My Dome ceiling rose cover
RF1915109
02. My Sphere/My Dome PVC white cable
RF36155
03. Steel cable 3meters.
RF36246
04. My Circuit Dome Diffuser
RF36034
x1
My Sphere/My Dome ceiling rose coverRF1915109
x1
My Sphere/My Dome PVC white cableRF36155
x1
Steel cable 3meters.RF36246
x1
My Circuit Dome DiffuserRF36034
