F1906009 Matte White

My Lines

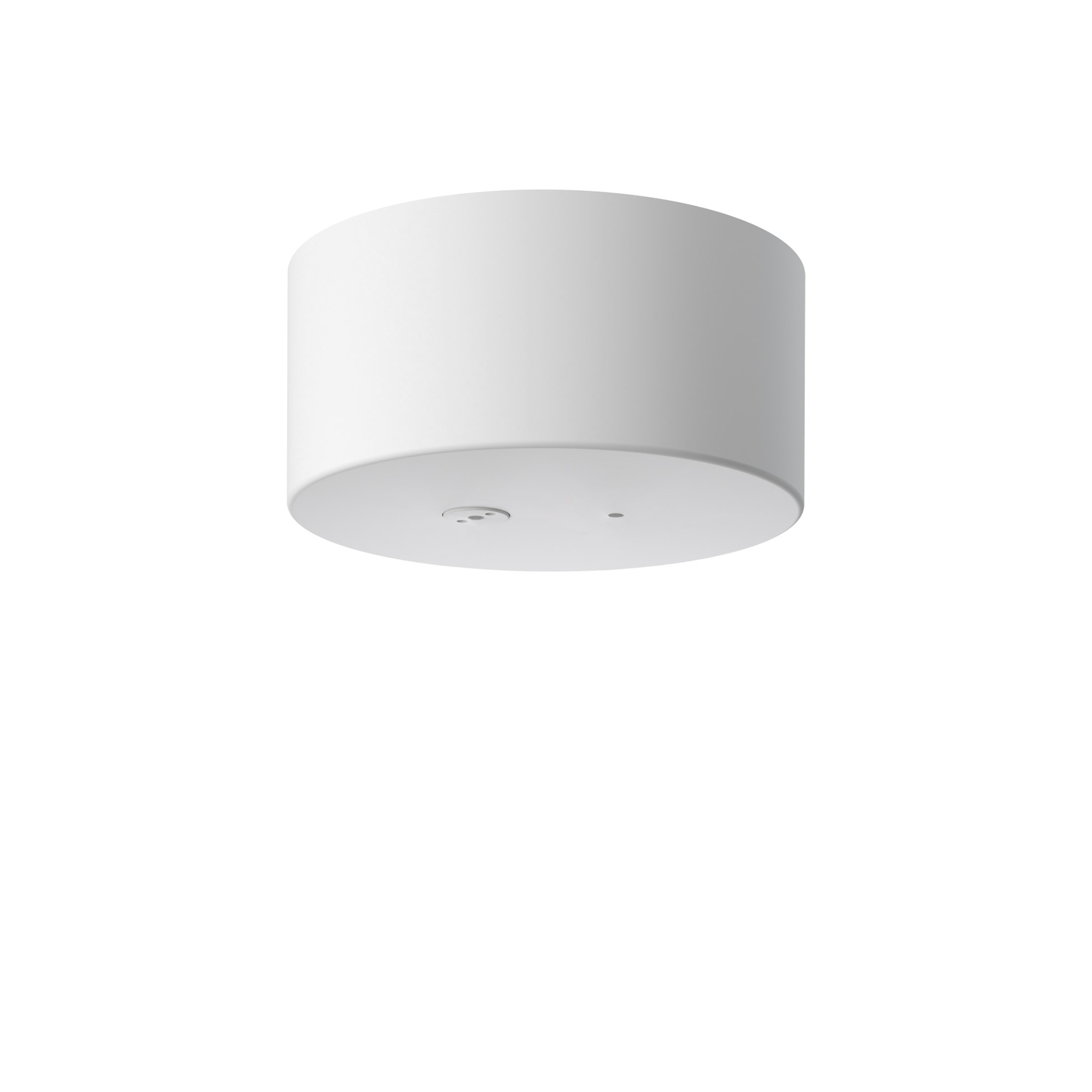

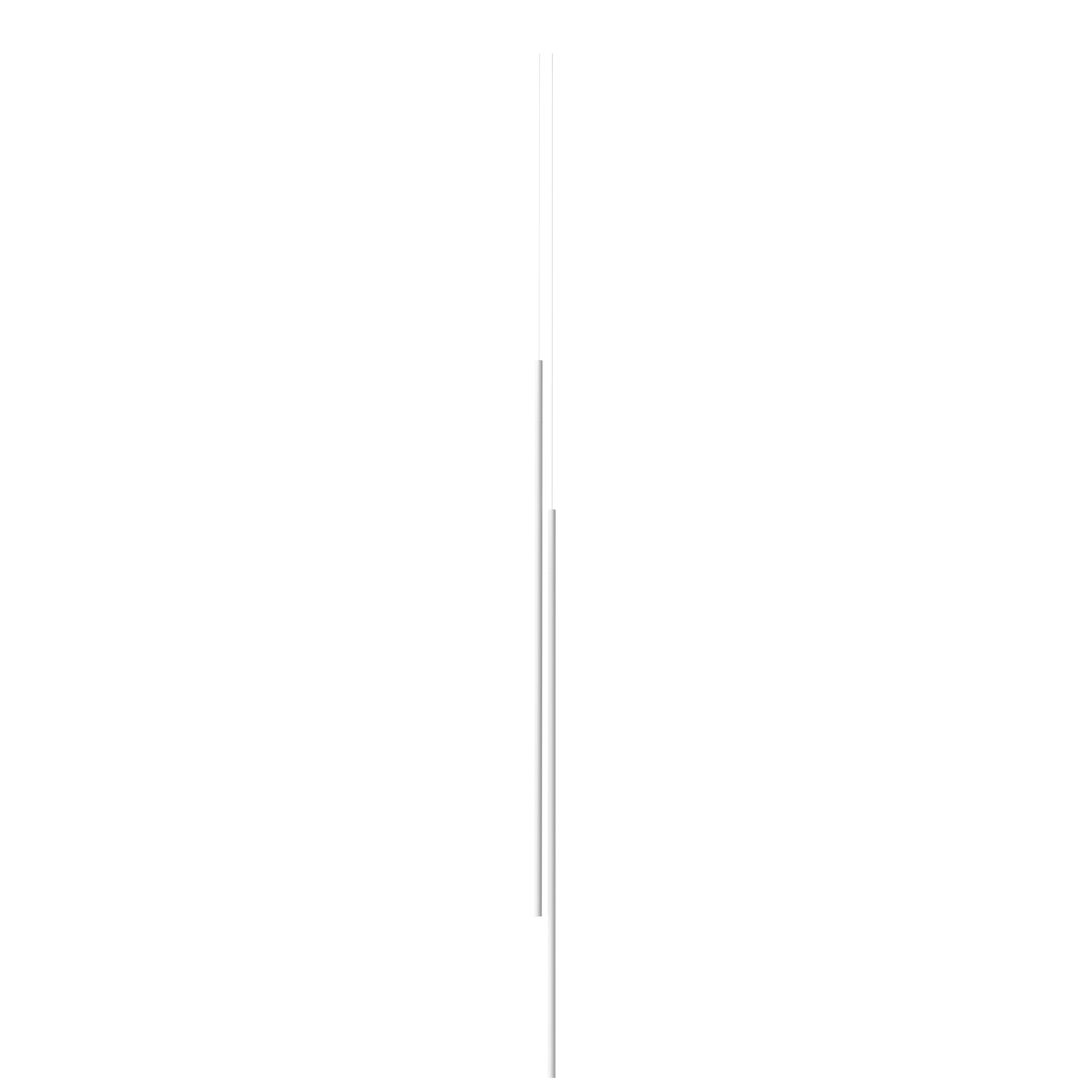

Suspension lamp emitting diffused light. Composed of two adjustable vertical bars in extruded anodised aluminium with diffuser in platinum optical silicone and integrated LED strip (CRI 90). Brightness adjustable from 10–100%. Canopy with integrated electronics to support PUSH, 1–10 V and DALI dimming systems sold separately.

Inspired by childhood memories of electric slot-car tracks, Michael Anastassiades conceived My Circuit as a flexible ceiling system where light follows imagination. Its patented rubber track, free to curve and bend, becomes part of the architecture, recalling the plaster friezes and stuccoes of 19th-century interiors. More than a track, it is a poetic lighting language: a backbone that adapts to space and intent, enabling endless possible layouts animated by minimalist luminous modules.

46W - 2786lm - 2700K - CRI> 90

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-My_Lines
Main specifications
EAN
8059607057087
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
46
Lumen Output (lm)
2786
Schematic light drawing
F1906009WMY-LINES_46W-LED
Photometric
Lighting type
Indirect
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
48
Forward voltage (V)
48
Power supply
Remote excluded
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Matte White
Length (mm)
63
Cord colour
White
Cord length (mm)
3000
Canopy colour
White
Canopy length/diameter (mm)
150
Canopy height (mm)
70
Net weight (kg)
1.8
Package height (mm)
60
Package width (mm)
1960
Package length (mm)
105
Package volume (m3)
0.01
IP internal
20
CE
RG
UL
EAC
CMIM
ENEC
UKCA
RETILAP
Flammable Surface
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

Required (1)

Spare Parts

F1906009-my-lines-flos-boom

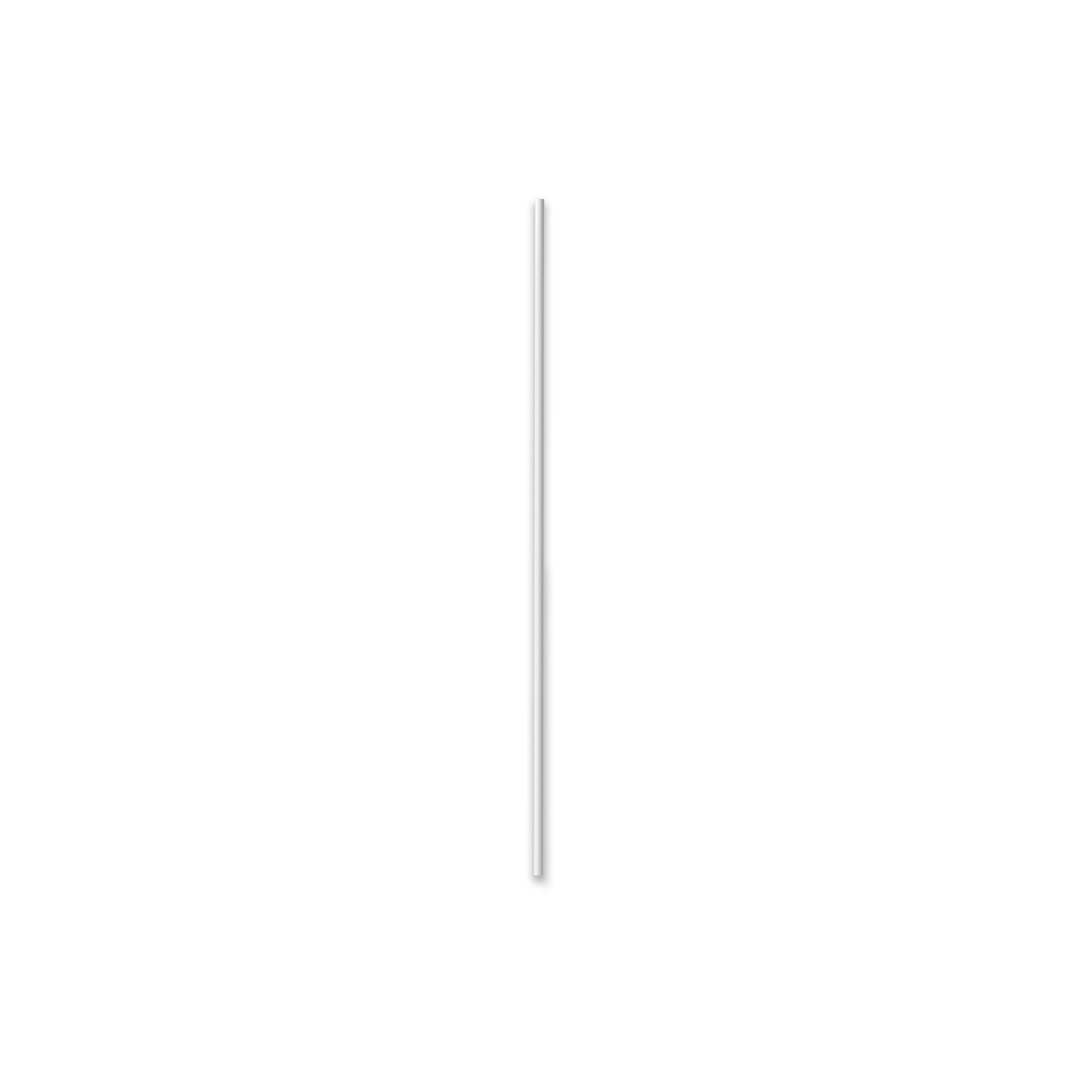

01. My Lines element
RF34981
