60.7677

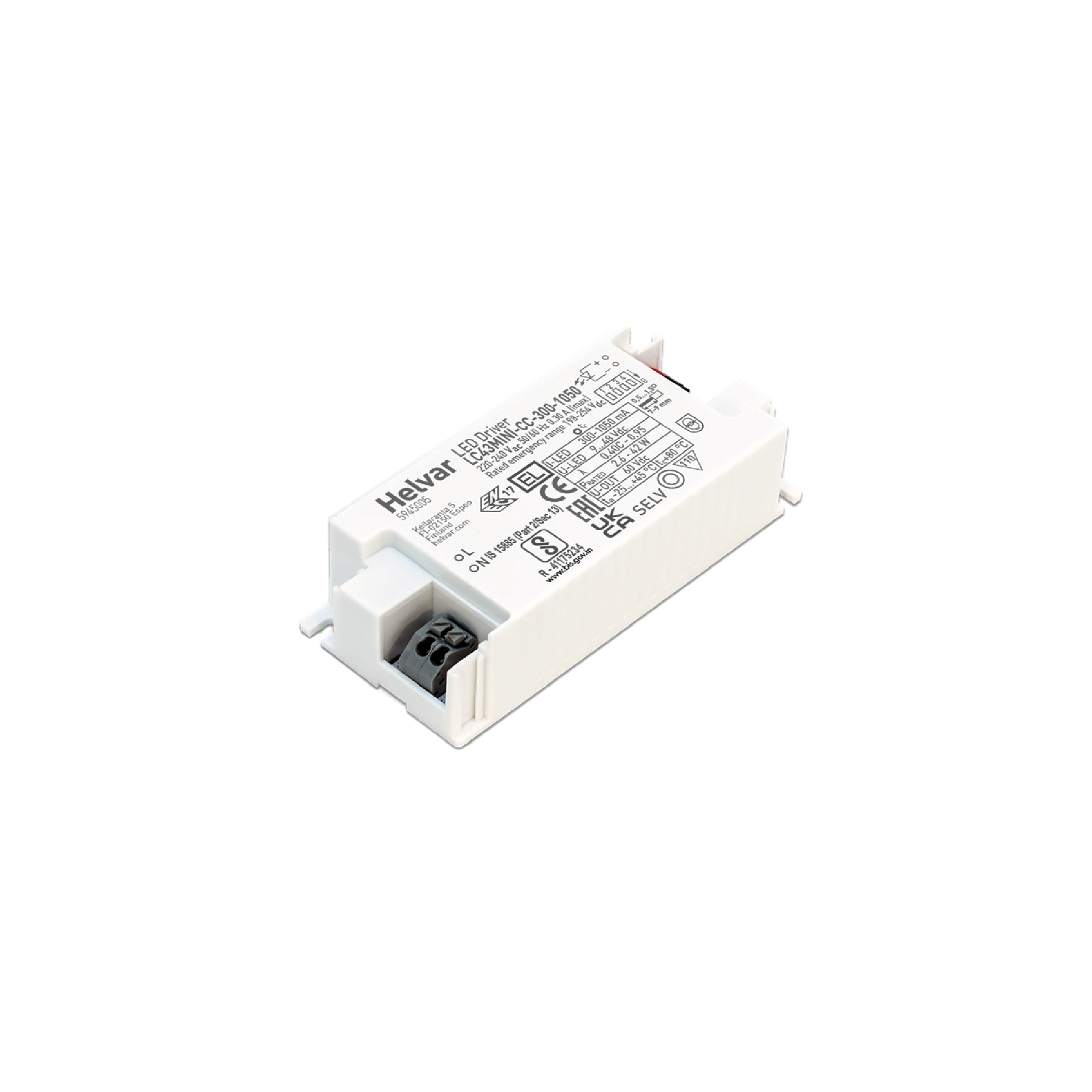

Non dimmable continuous current power supply of 220/240V - 50/60Hz with power current selected through adjustable with switch. 300mA - 14.4W / 350mA - 16.8W / 400mA - 19.2W / 450mA - 21.6W / 500mA - 24W / 550mA - 26.4W / 600mA - 31.2W / 650mA - 31.2W /...

Non dimmable continuous current power supply of 220/240V - 50/60Hz with power current selected through adjustable with switch. 300mA - 14.4W / 350mA - 16.8W / 400mA - 19.2W / 450mA - 21.6W / 500mA - 24W / 550mA - 26.4W / 600mA - 31.2W / 650mA - 31.2W / 700mA - 33.6W / 750mA - 36W / 800mA - 38.4W / 850mA - 35.7W / 900mA - 37.8W / 950mA - 39.9W / 1000mA - 42W / 1050mA - 42W.

Technical Drawing
DR_60.7677-DRIVER
Main specifications
Power (W)
42
Photometric
Extreme cut off
No
Electrical
Frequency (Hz)
50/60
LED current (mA)
300-1050
Dimmable
No
Power supply type
Non Dimmable
Precabled
No
Emergency
Yes
Batteries inside
No
Physical
Length (mm)
131
CE
EAC
ENEC
UKCA

Download

Tech spec pdf
