09.8310.DV Glossy Sage

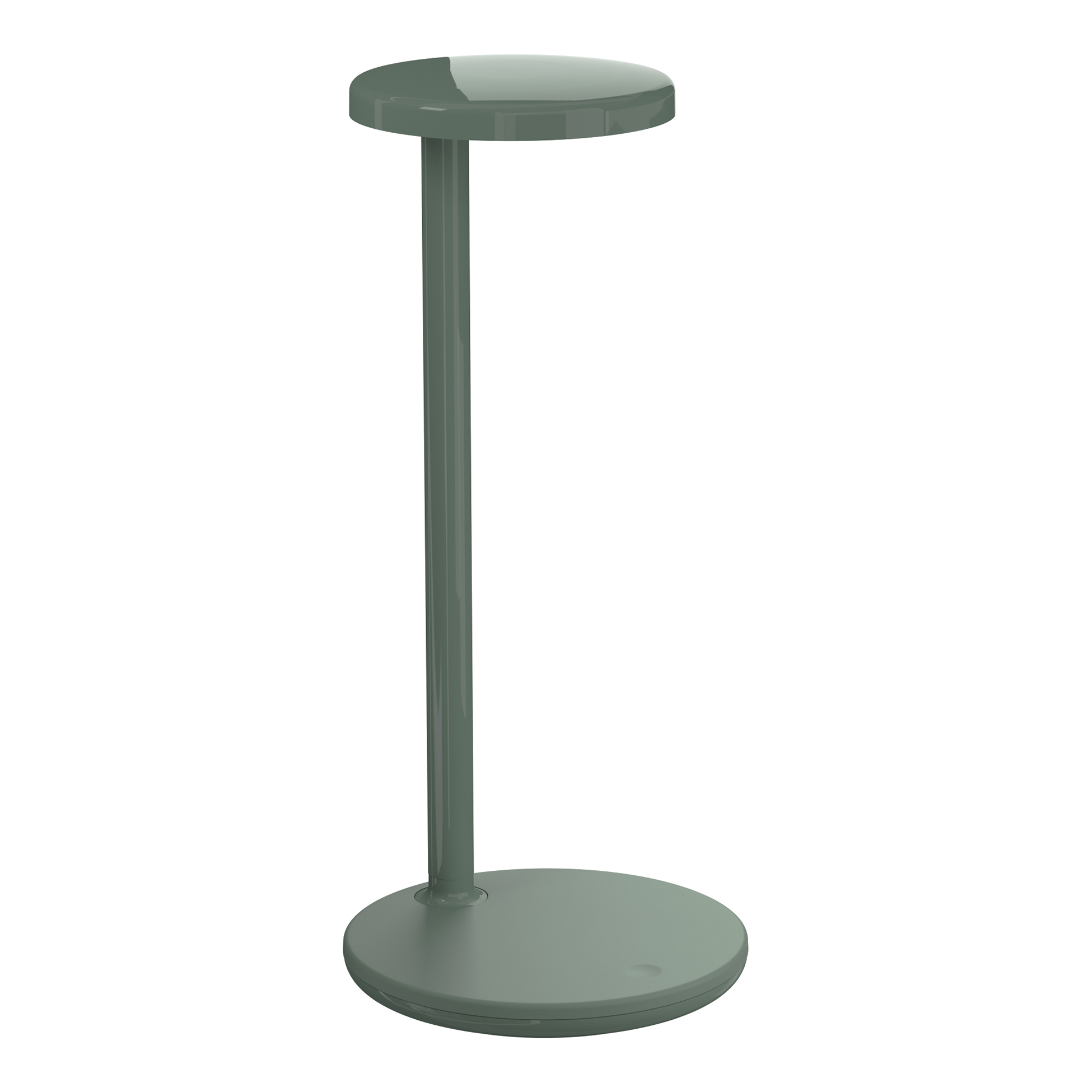

Oblique Qi
New
Designed by Vincent Van Duysen, 2020
Professional table lamp with patented asymmetric optics. External power supply included with 1500-mm cable. USB-C connection integrated into the base of the device to recharge compatible devices. Base with Qi compatible wireless recharging system for mobile devices and wireless recharging cases for compatible devices. Driver input: 12 V
LED - Top LED - 8W - 479lm - 2700K - CRI> 90 - Beam° 35
Also available in:
Technical Drawing
Main specifications
Mounting
Table
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Top LED
Lamp category
LED
Number of lamps
1
Power (W)
8
System power (W)
28
Source flux (lm)
754
Lumen Output (lm)
479
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
LED Life / Failure Ratio
L90B10 > 50.000h (Tc=85°C)
Beam angle C0-180 (º)
35
Beam angle C90-270 (º)
46
Electrical
Insulation class
III
Power supply
Remote included
Dimmable
Yes
Power supply type
Dimmable
Emergency
No
Induction recharge QI
Yes
Charging socket/connector
USB-C
Physical
Colour
Glossy Sage
Orientation
Fixed
Net weight (kg)
0.75
IP internal
20
IP external
20
