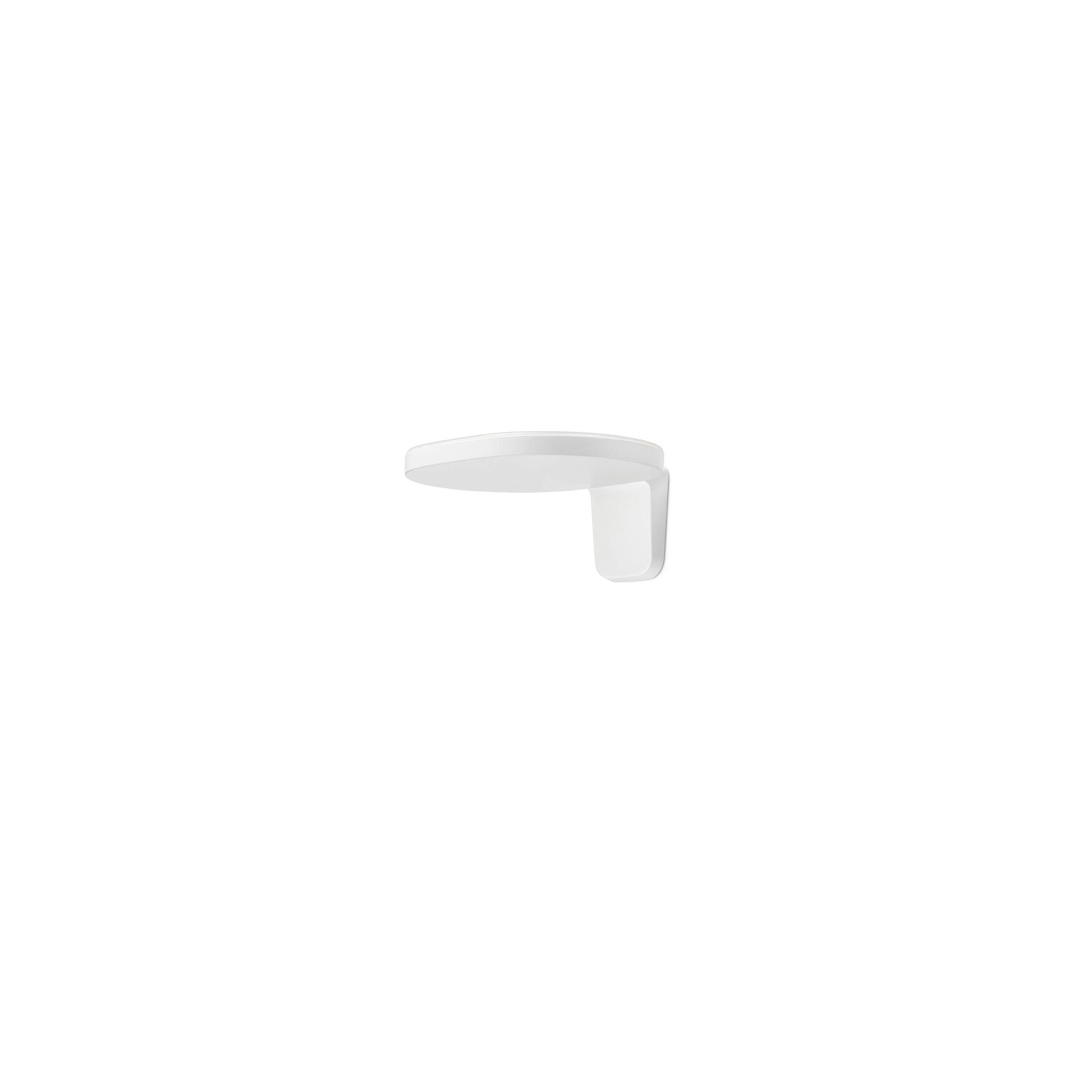

Oplight
F4681009 Textured WhiteOplight
Designed by Jasper Morrison, 2021
Indirect light wall lamp. Body in die-cast aluminium with powder coating. Diffusor made of injection-moulded polycarbonate semi-transparent. High efficiency LED source with a lifetime of more than 50.000 hours. The LED source can be easily replaced on site by a professional installer when it comes to the end of its lifecycle. Oplight is a future-proof lamp as no glue is used to assemble its different parts. The product can therefore be separated, replaced individually, and recycled separately.
16W - 1325lm - 2700K - CRI> 90
Also available in:
Technical Drawing
Main specifications
EAN
8059607040294
Mounting
Wall
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
16
Lumen Output (lm)
1325
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Mains Cut Dimming
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Textured White
Length (mm)
195
Net weight (kg)
0.9
Package height (mm)
160
Package width (mm)
280
Package length (mm)
320
Package volume (m3)
0.01
IP internal
20
Replaceable (LED only) light source by a professional
Spare Parts
02.
Oplight Wall 1 Led Board for Oplight W1
RF4681100
