F4634009 White

Overlap Suspension 2

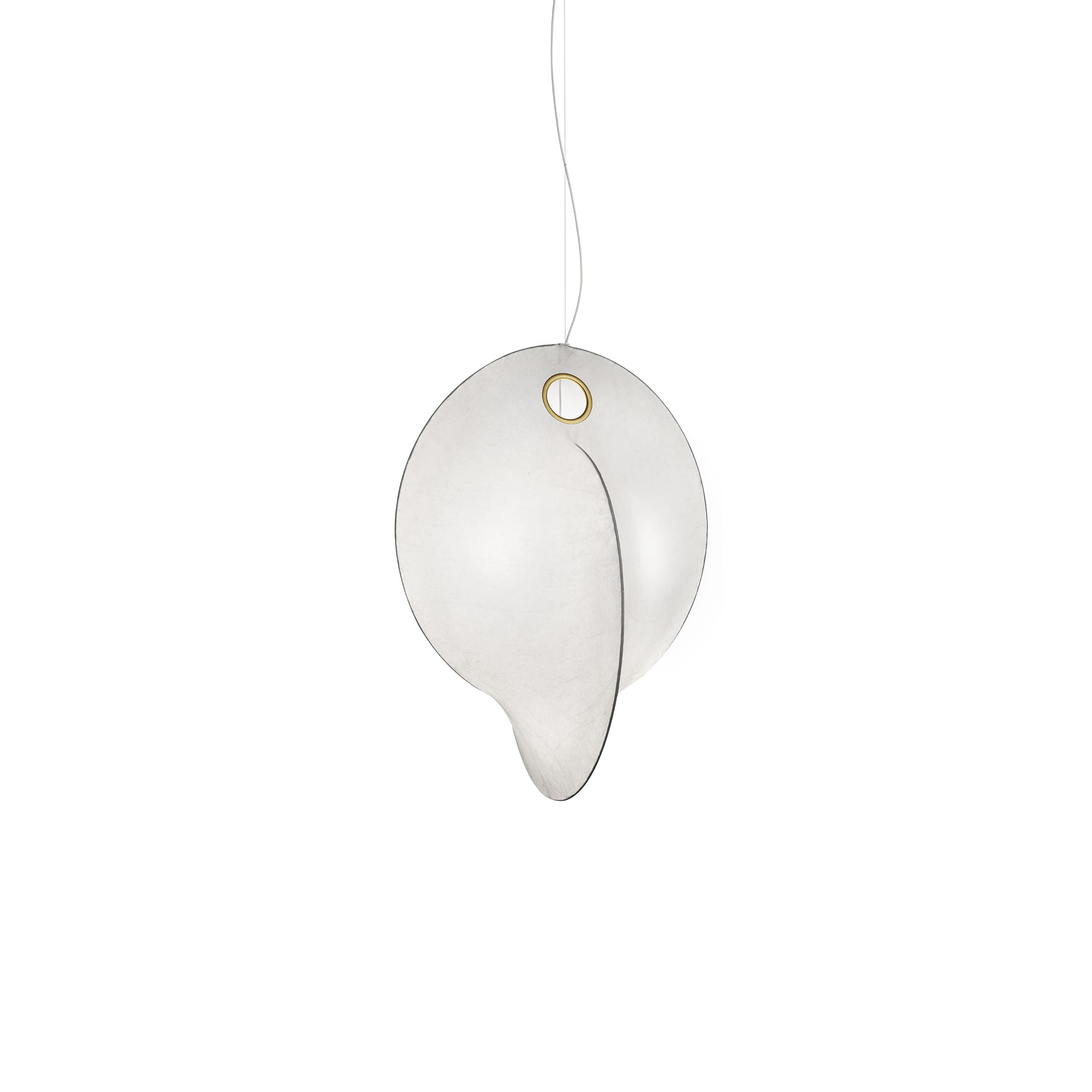

Suspension lamp emitting diffused light. Internal structure in white powder-coated steel. Diffuser in Cocoon resin with transparent protective spray finish. Interlocking ring in polished, gold-plated galvanic steel. Die-cast zamak ceiling rose in polished, gold-plated galvanic finish.

Designed by Michael Anastassiades, Overlap is a contemporary tribute to Flos’s iconic use of the Cocoon technique, a method originally borrowed from US industry and ingeniously applied to lighting. The two interlocking rings appear to press against the soft membrane, barely revealing the structure beneath. Inspired by both geometry and tension, the lamp invites curiosity by concealing the space where the forms intersect. Overlap is a study in contrast captured in a floating, luminous volume.

Halogen - 2 x 105W

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Overlap-S2
Main specifications
EAN
8059607020104
Mounting
Suspension
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
2
Power (W)
105
Photometric
Lighting type
Total
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
White
Length (mm)
1000
Cord colour
White
Cord length (mm)
2700
Canopy colour
Gold
Canopy length/diameter (mm)
113
Canopy height (mm)
32
Net weight (kg)
3.6
Package height (mm)
1400
Package width (mm)
900
Package length (mm)
900
Package volume (m3)
1.13
IP internal
20
CE
CCC
EAC
CMIM
ENEC
IRAM
UKCA
IECEC
RETILAP
Autoprotected Lamp
20

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Technical Drawings

2D
3D

Spare Parts

F4634009-overlap-s2-flos-boom
01. Complete rose
RF4630159
02. Kit with screws and allen key
RF3160100
03. 4mt steel wire Ø1,2 with 19 winded wires
RF01089
03. 3 mt steel cable ø1,2 with 19 winded wires
RF29665
