Platter

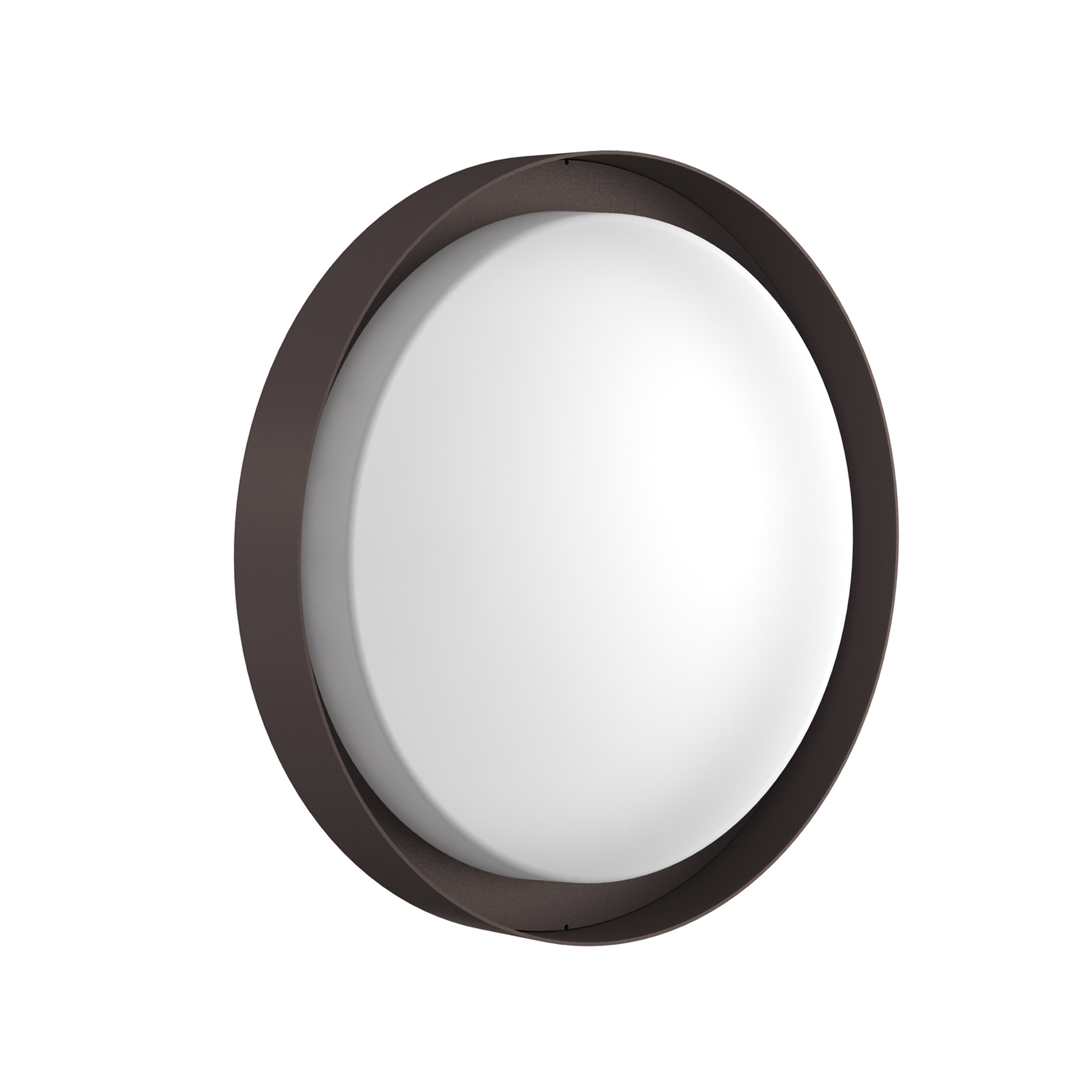

FA53301230 BlackPlatter 310
Designed by FLOS Outdoor, 2013
LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI. With IP65 cable guide for rubber cables 5mm<ø<10mm and a 2-pole connection box for a fast connection. To ensure the tightness of the cable guide it's recommended to use flexible electric cables suitable for exterior use.
14W - 1237lm - 3000K - CRI> 80 - Beam° 120
Technical Drawing
Main specifications
EAN
8054793664392
Mounting
Ceiling, Wall
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
14
System power (W)
18
Source flux (lm)
2015
Lumen Output (lm)
1237
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
120
Beam angle C90-270 (º)
120
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
Black
Orientation
Fixed
Net weight (kg)
2.12
Package height (mm)
160
Package width (mm)
420
Package length (mm)
430
Package volume (m3)
0.03
IP internal
66
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
