Platter
FA53302230-310 Black

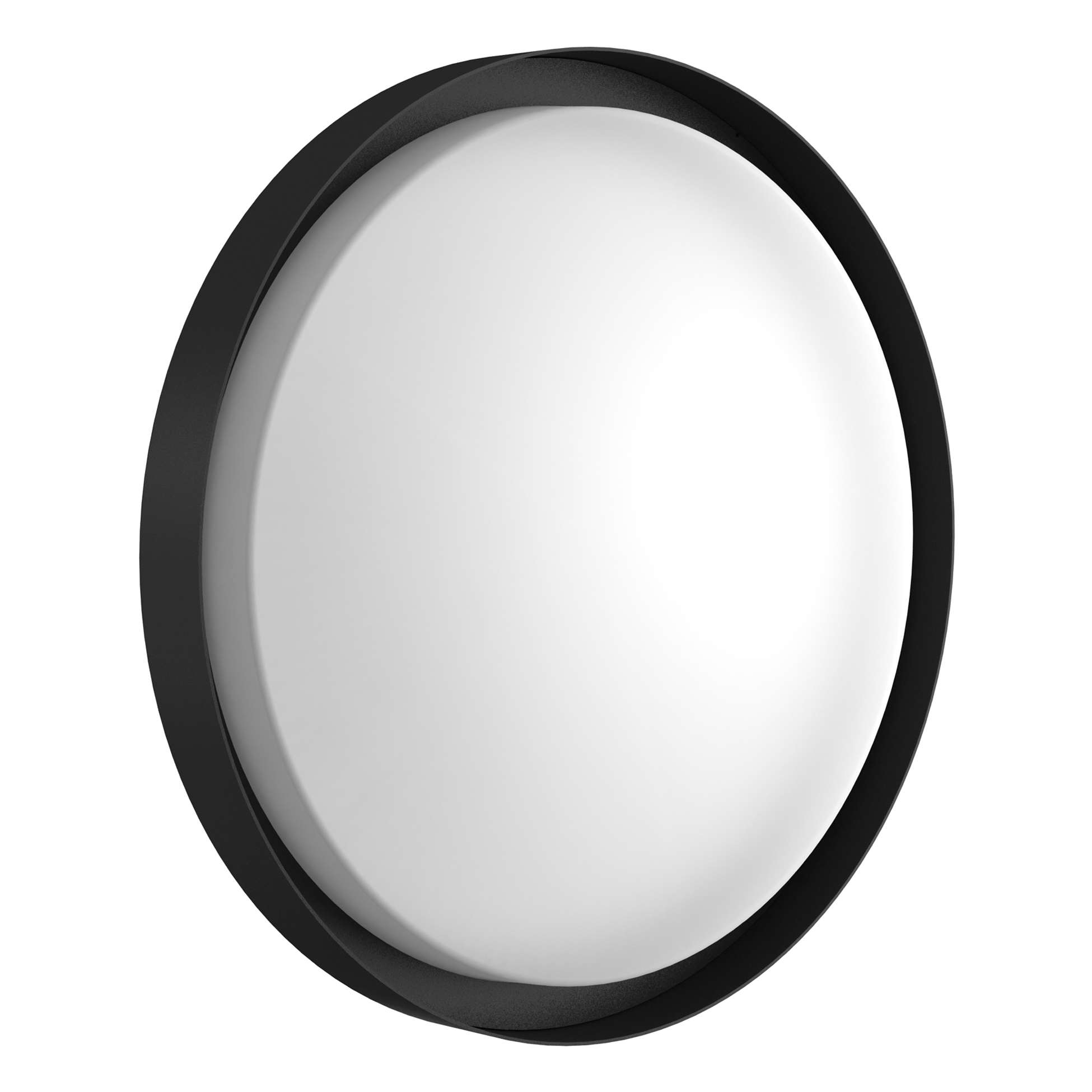

Platter 410 Dimmable 1-10V
New
Designed by FLOS Outdoor, 2013
LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI. With IP65 cable guide for rubber cables 5mm<ø<10mm and a 2-pole connection box for a fast connection. To ensure the tightness of the cable guide it's recommended to use flexible electric cables suitable for exterior use.
28W - 2521lm - 3000K - CRI> 80 - Beam° 120
Technical Drawing
Main specifications
EAN
8054793665115
Mounting
Ceiling, Wall
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
28
System power (W)
34
Source flux (lm)
3860
Lumen Output (lm)
2521
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
120
Beam angle C90-270 (º)
120
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable 1-10V
Dimming interface
Dimmer Integrated
Emergency
No
Physical
Colour
Black
Orientation
Fixed
Net weight (kg)
3.73
Package height (mm)
120
Package width (mm)
520
Package length (mm)
520
Package volume (m3)
0.03
IP internal
66
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
