Pointbreak

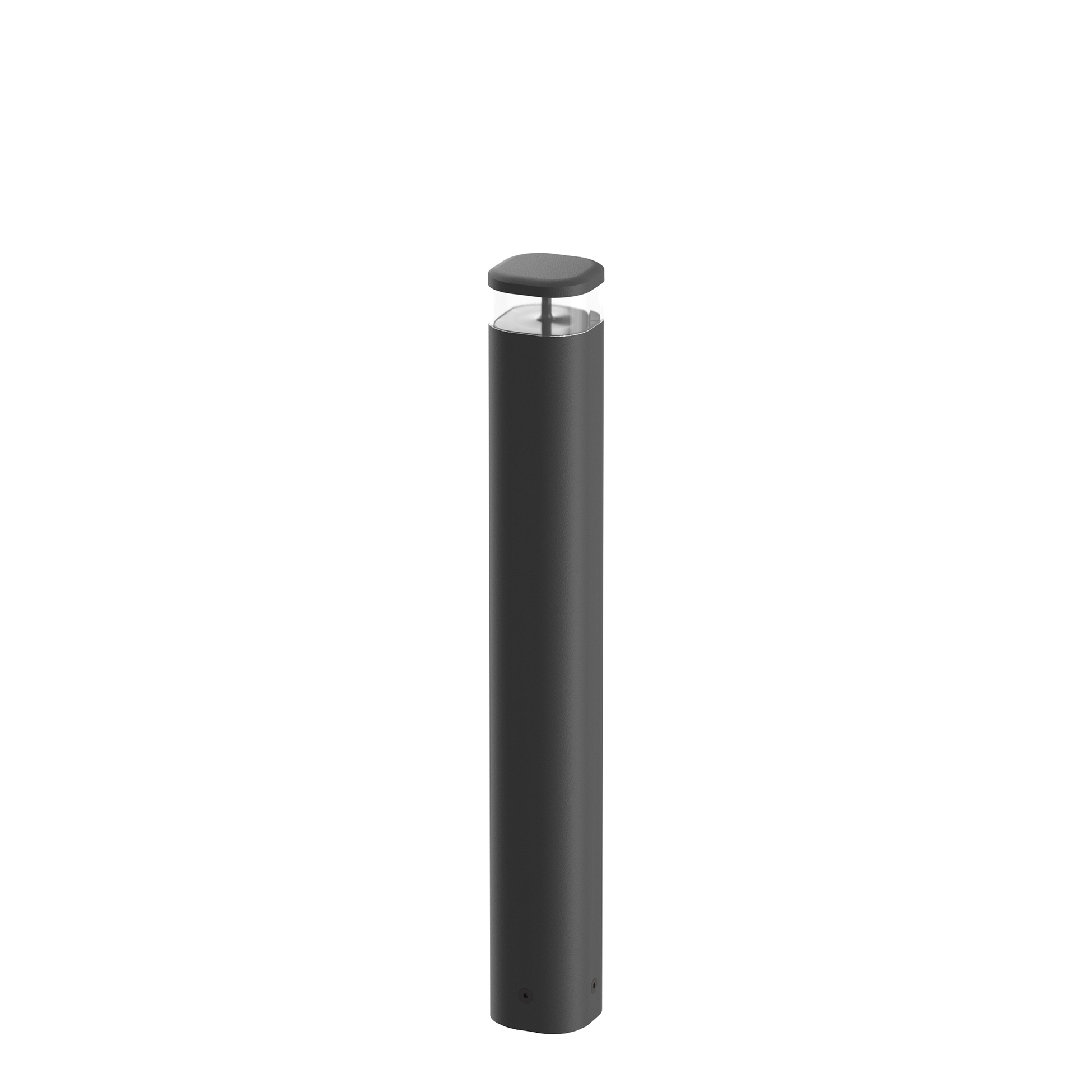

F023E3BD033 AnthracitePointbreak Bollard 1 - 600
Designed by Piero Lissoni, 2020
LED light source included. Integrated 220-240V ON/OFF and 1-10V/DALI dimmable electrical power. Equipped with one piece of neoprene output cable. IP68 junction system to be ordered separately. The luminaire may be easily installed on any type of floor with anchors. The anchoring plate for installation on flooring to be concreted must be ordered separately.
6W - 285lm - 3000K - CRI> 80
Technical Drawing
Main specifications
EAN
8054793374895
Mounting
Ground
Light source type
LED
Light sources included
Yes
LED type
Top LED
Number of lamps
1
Power (W)
6
System power (W)
5.6
Source flux (lm)
600
Lumen Output (lm)
285
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
3000
CRI>
80
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable DALI 2
Dimming interface
Dimmer Integrated
Emergency
No
Physical
Colour
Anthracite
Orientation
Fixed
Length (mm)
81
Net weight (kg)
2.79
Package height (mm)
170
Package width (mm)
670
Package length (mm)
185
Package volume (m3)
0.02
IP internal
65
H2O stop
Yes
Drive Over
No
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
