Pointbreak
F023K22A033 Anthracite

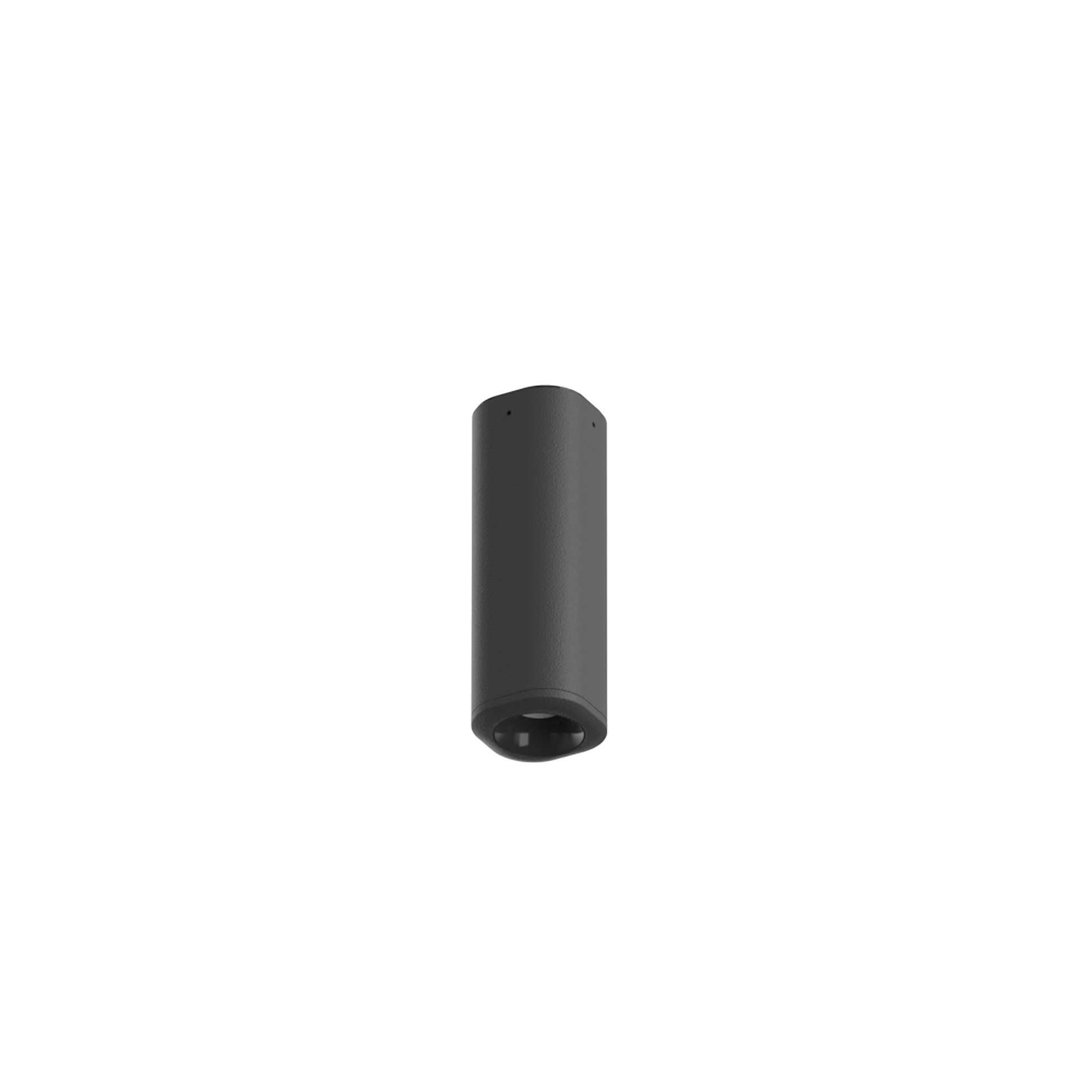

Pointbreak Ceiling 0 Optic Medium

LED light source included. Integrated 220-240V ON/OFF electrical power. Equipped with IP65 rubber grommet and 2-pole quick-connect terminals.

102lm - 2700K - CRI> 80 - Beam° 21

Find a Flos store
Also available in:
Technical Drawing
DR-POINTBREAK-CEILING-0
Main specifications
EAN
8054793404424
Mounting
Ceiling
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
System power (W)
2.1
Source flux (lm)
139
Lumen Output (lm)
102
Schematic light drawing
F023K22A0xx
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
21
Beam angle C90-270 (º)
21
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
Anthracite
Orientation
Fixed
Net weight (kg)
0.45
Package height (mm)
80
Package width (mm)
135
Package length (mm)
130
IP internal
65
H2O stop
No
EAC
CE
UKCA
Risk 1
65
IK06 - 1.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional
