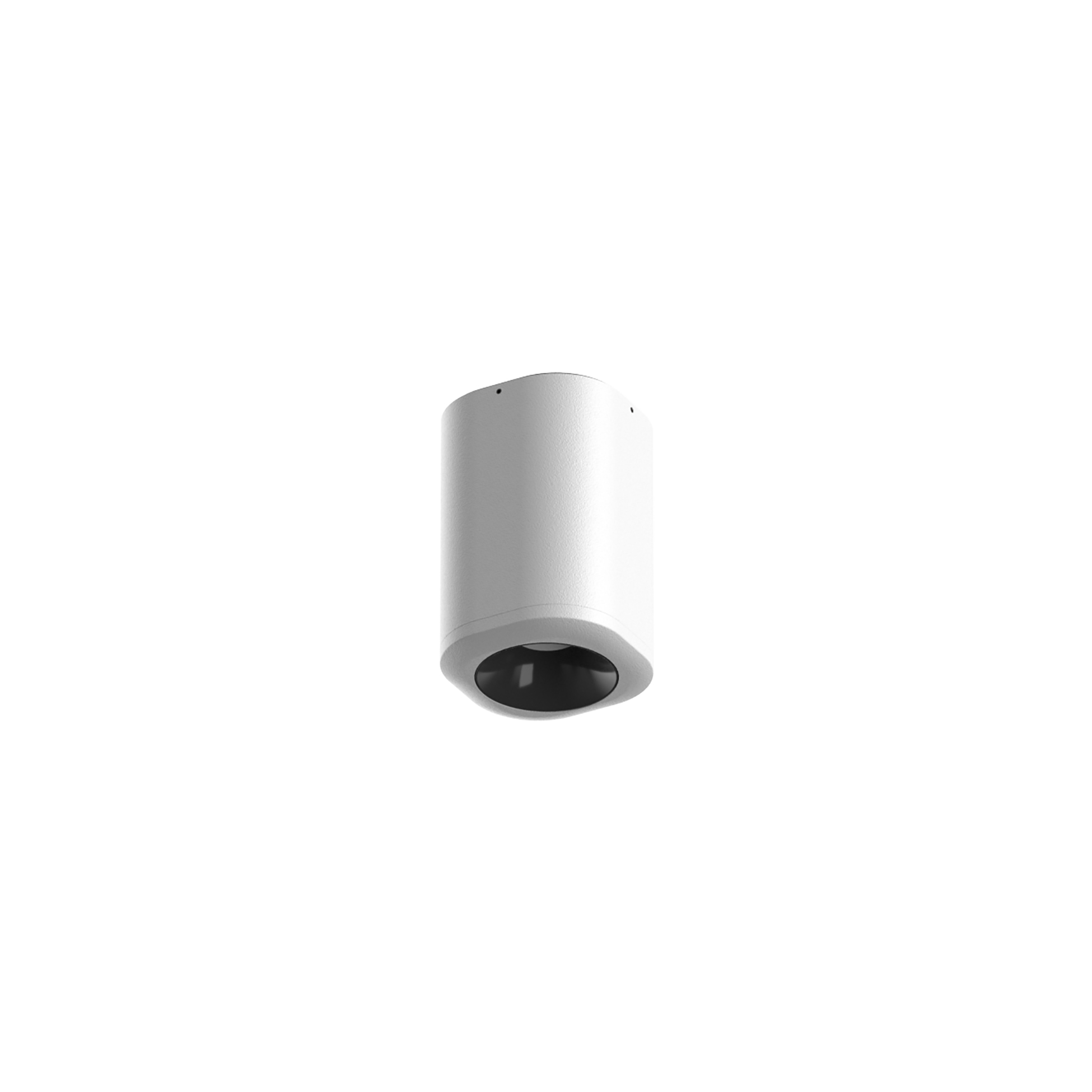

Thumbnail
Related to
Pointbreak
F023L23A001 White

Pointbreak Ceiling 1 Optic Flood

LED light source included. Integrated 220-240V ON/OFF electrical power. Equipped with double cable gland for inlet and outlet connection.

7W - 311lm - 2700K - CRI> 80 - Beam° 50

Find a Flos store
Technical Drawing
DR-POINTBREAK-CEILING-1
Main specifications
EAN
8054793405872
Mounting
Ceiling
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
7
System power (W)
6.5
Source flux (lm)
543
Lumen Output (lm)
311
Schematic light drawing
F023L23A0xx
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
50
Beam angle C90-270 (º)
50
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
White
Orientation
Fixed
Net weight (kg)
0.45
Package height (mm)
165
Package width (mm)
170
Package length (mm)
175
Package volume (m3)
0.01
IP internal
65
H2O stop
No
Drive Over
No
UKCA
RG
EAC
CE
65
IK06 - 1.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional
