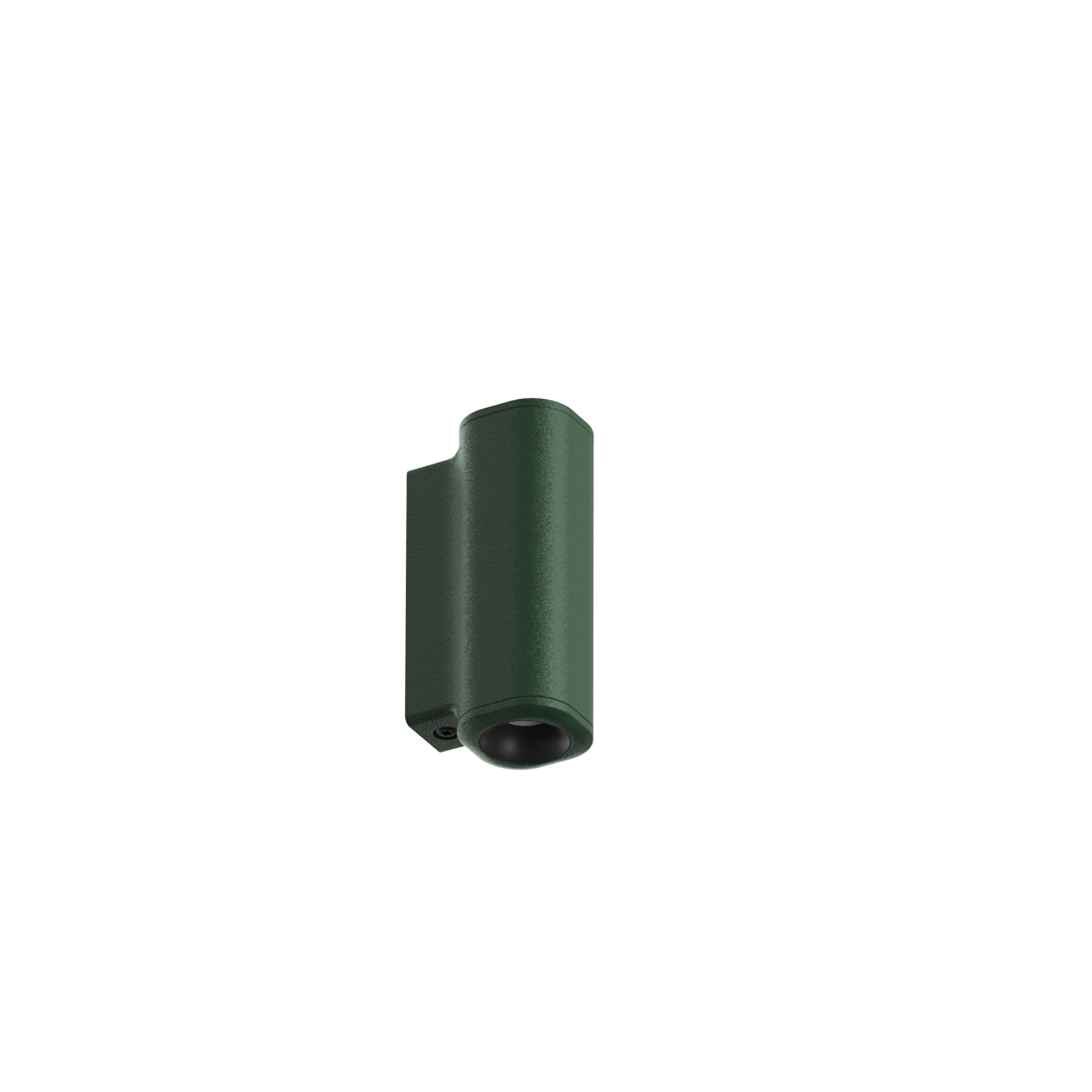

F023G35A012 Forest GreenPointbreak Wall 0 Up&Down Optic Spot
Designed by Piero Lissoni
LED light source included. Integrated 220-240V ON/OFF electrical power. Equipped with IP65 rubber grommet and 2-pole quick-connect terminals.
208lm - 3000K - CRI> 80 - Beam° 11
Also available in:
Technical Drawing
Main specifications
EAN
8054793383941
Mounting
Wall
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
System power (W)
3.1
Source flux (lm)
298
Lumen Output (lm)
208
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
11
Beam angle C90-270 (º)
11
Beam angle indirect C0-180 (º)
11
Beam angle indirect C90-270 (°)
11
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
Forest Green
Orientation
Fixed
Net weight (kg)
0.59
Package height (mm)
80
Package width (mm)
135
Package length (mm)
130
IP internal
65
H2O stop
No
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
