Pointbreak

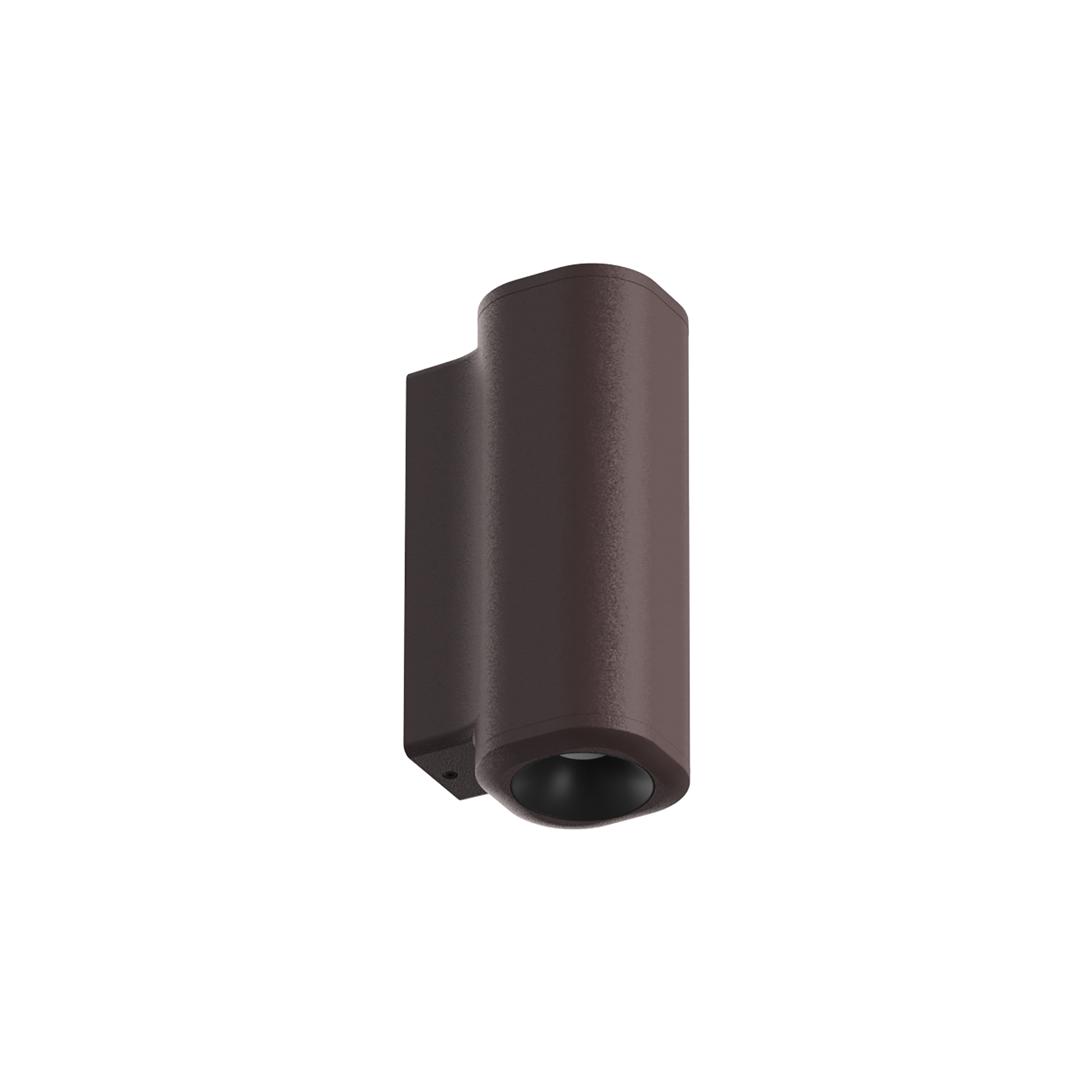

F023H36A018 Deep BrownPointbreak Wall 1 Up&Down Optic Medium
Designed by Piero Lissoni
LED light source included. Integrated 220-240V ON/OFF and 1-10V/DALI dimmable electrical power. Equipped with double cable gland for inlet and outlet connection. Upon request: Single upwards emission or single downwards emission.
734lm - 3000K - CRI> 80 - Beam° 24
Technical Drawing
Main specifications
EAN
8054793390086
Mounting
Wall
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
System power (W)
12
Source flux (lm)
1140
Lumen Output (lm)
734
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
24
Beam angle C90-270 (º)
24
Beam angle indirect C0-180 (º)
24
Beam angle indirect C90-270 (°)
24
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
Deep Brown
Orientation
Fixed
Net weight (kg)
1.92
Package height (mm)
165
Package width (mm)
270
Package length (mm)
230
Package volume (m3)
0.01
IP internal
65
H2O stop
No
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
