Seki-Han
D304F01ADEAD1 Wood

Seki-Han Floor

Floor lamp emitting direct and indirect light with symmetrical and asymmetrical distribution. Features two vertical ash wood blades joined by chromed metal fittings. Blades rotate around a central tubular light source to allow variable light emission. Raw black iron base separated from the vertical blades by a collar. Custom-developed dimmable linear LED light source. The lamp can also be fitted with standard T8 LED tubes. Designed by Tobia Scarpa in 1963 and reissued in 2025, Seki-Han is testament to his mastery of design and wood-working expertise. The intricate construction draws on naval techniques to shape two wooden blades that now rotate around the light source. Even when almost completely closed, a sliver of light remains visible, creating a highly poetic effect. Named after a traditional Japanese rice dish served on special occasions, Seki-Han is a living presence where the immateriality of light meets the tactility of wood.

LED retrofit - 22W - 2700K - CRI> 80

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Floor-Seki-Han
Main specifications
EAN
8059607076323
Mounting
Floor
Environments
Indoor dry location
Light source type
Bulb
Light sources included
Yes
Lamp category
LED retrofit
Lamp type
T8
Lamp holders
G13
Bulb finish
Opal
Number of lamps
1
Power (W)
22
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
CRI>
80
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Dimmer Integrated
Plug type
Type C
Physical
Colour
Wood
Length (mm)
290
Cord length (mm)
2100
Net weight (kg)
9.15
Package volume (m3)
0.09
IP internal
20
CE
CMIM

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class D

Spare Parts

D304F01ADEAD1-seki-han-floor-flos-boom

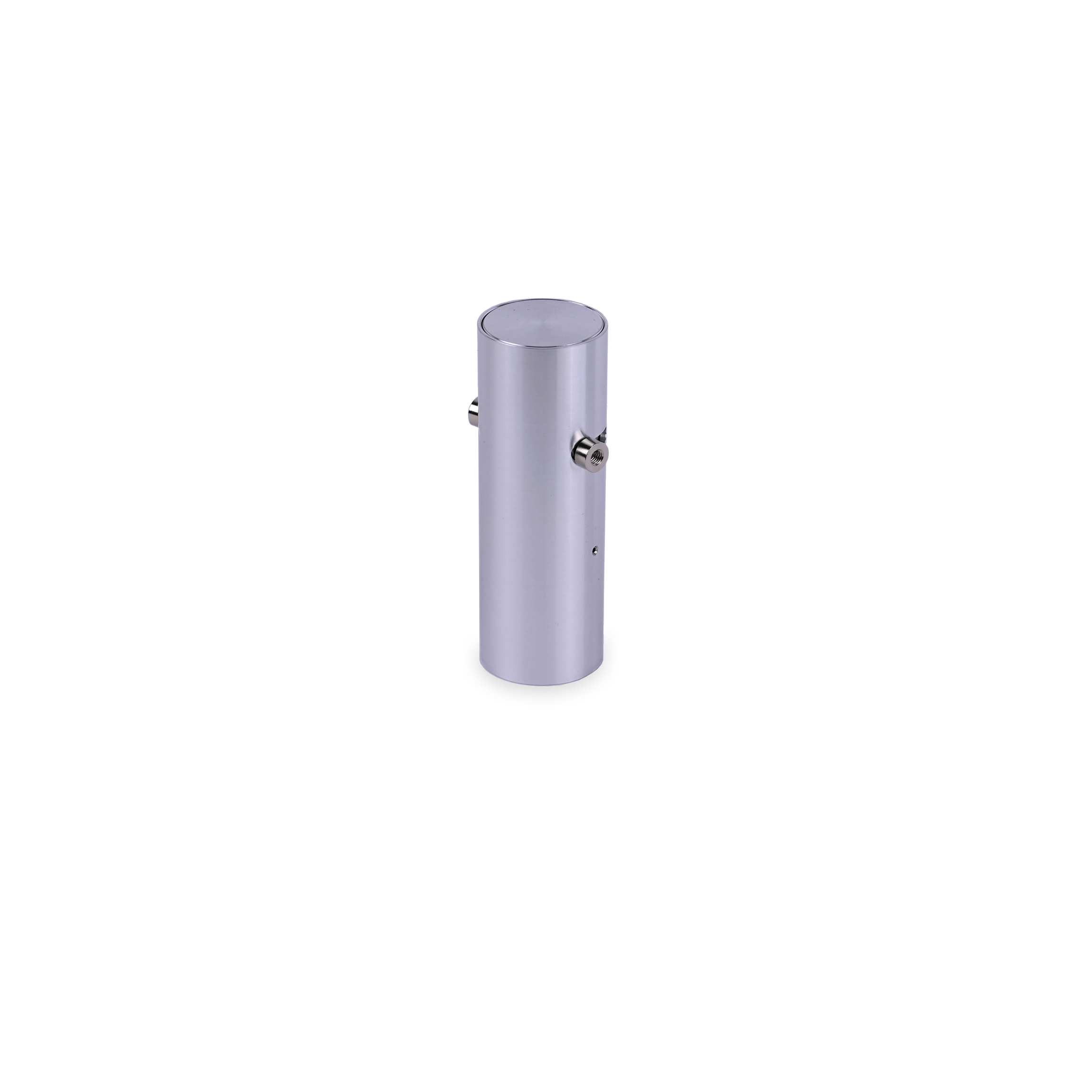

01. Seki-Han F Upper joint assembly
RF37760

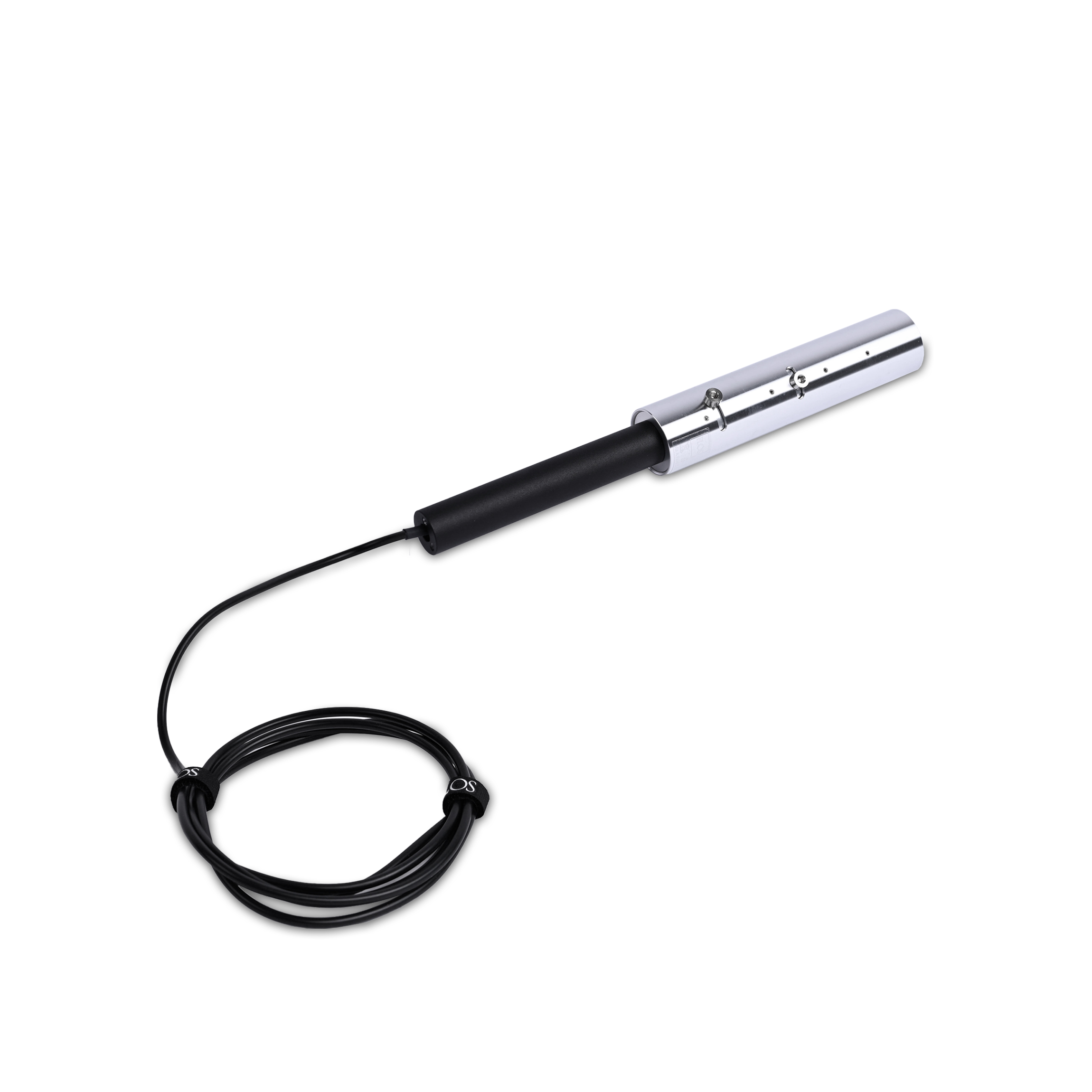

02. Seki-Han F Lower joint assembly
RF3040200

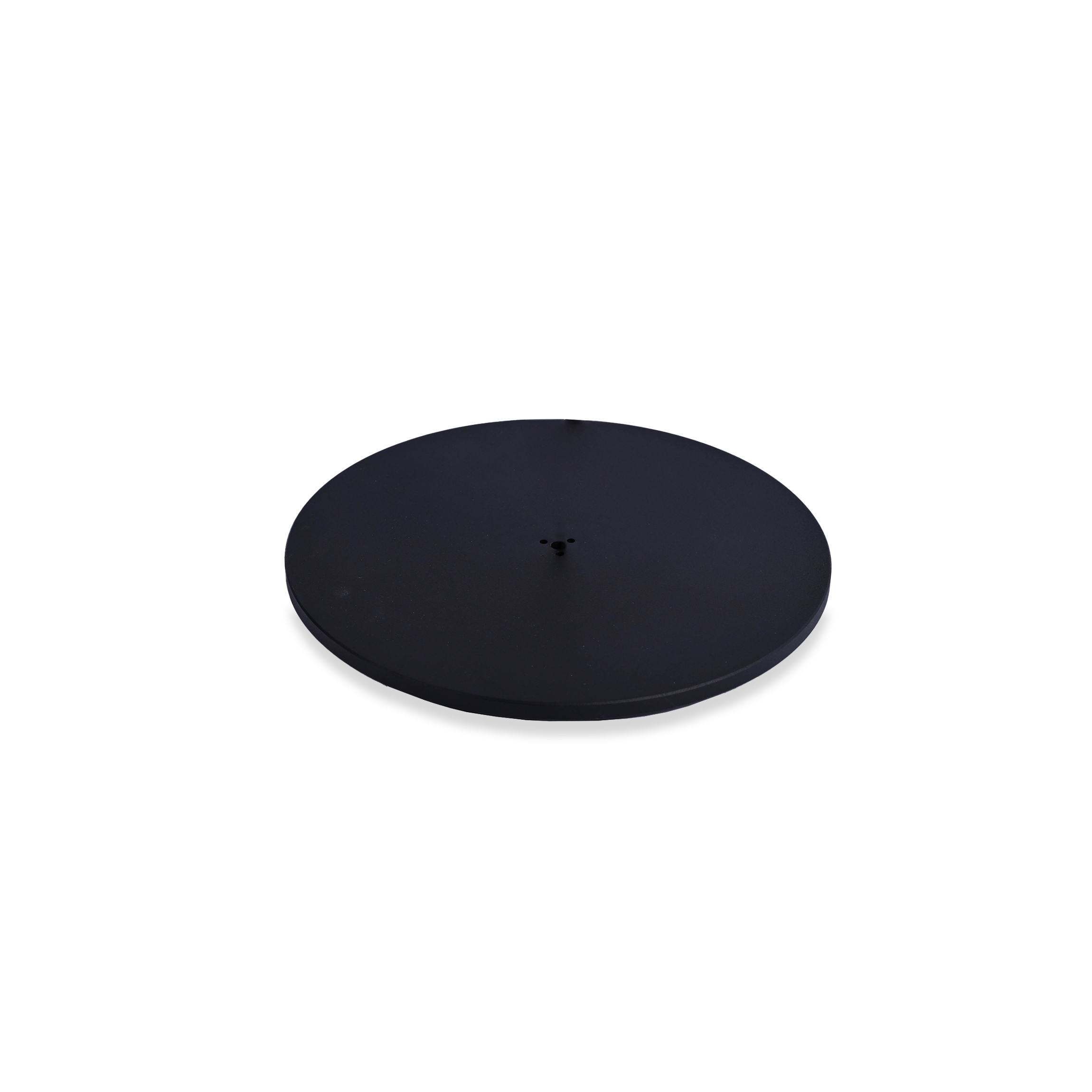

03. Seki-Han F Black base
RF37794
04. Fixing screws kit
RF0254100
05. Led rondo’ dimmer 220/240v 40-250w 4-100w
RF28045
06. Seki-Han body screws kit
RF3040100
07. Seki-Han glass diffuser assembly
RF37777
08. Seki-Han ash wood blades
RF37780
09. Seki-Han G13 Led light source
RF37818

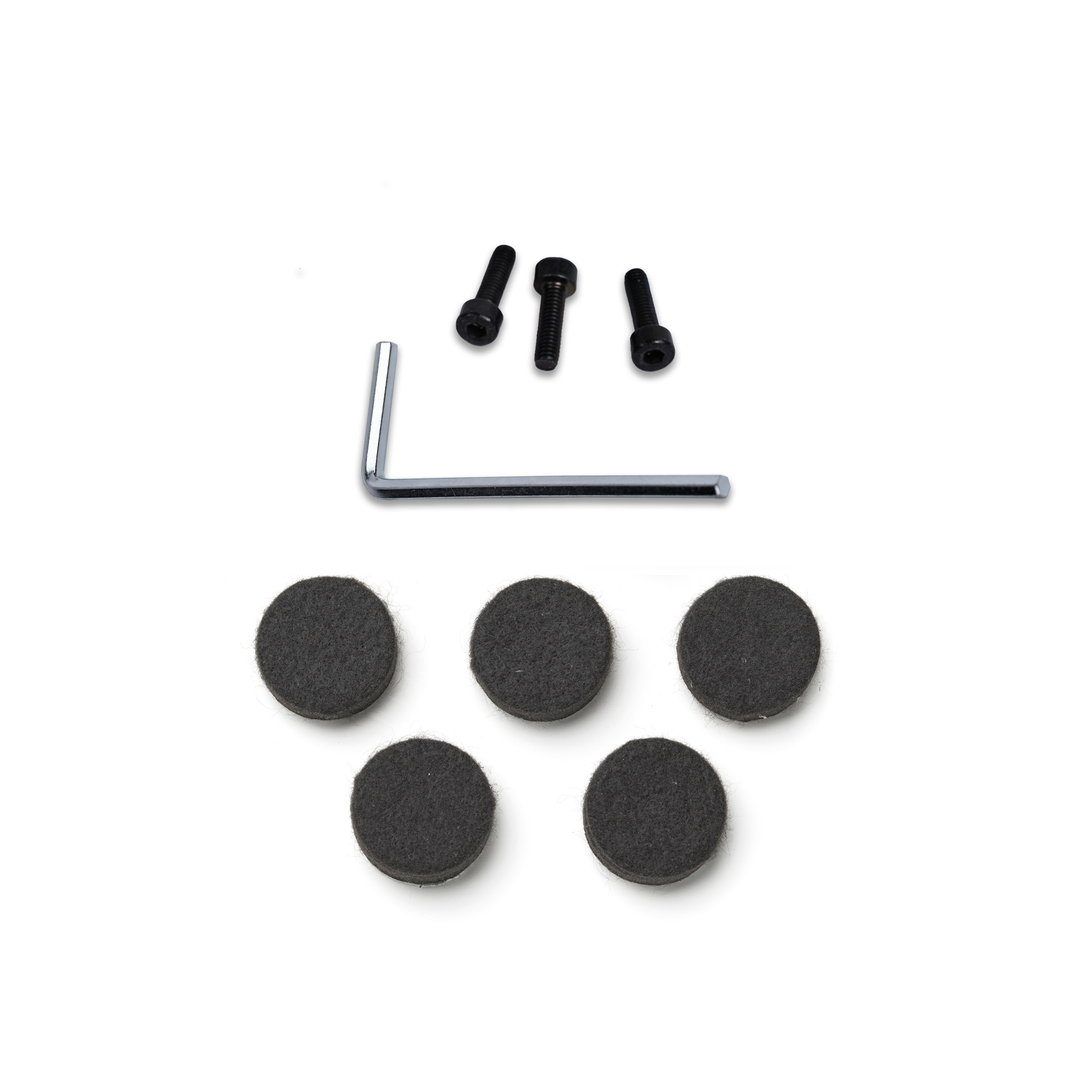

10. Kit Screws with allen key and feet pads
RF1530100
