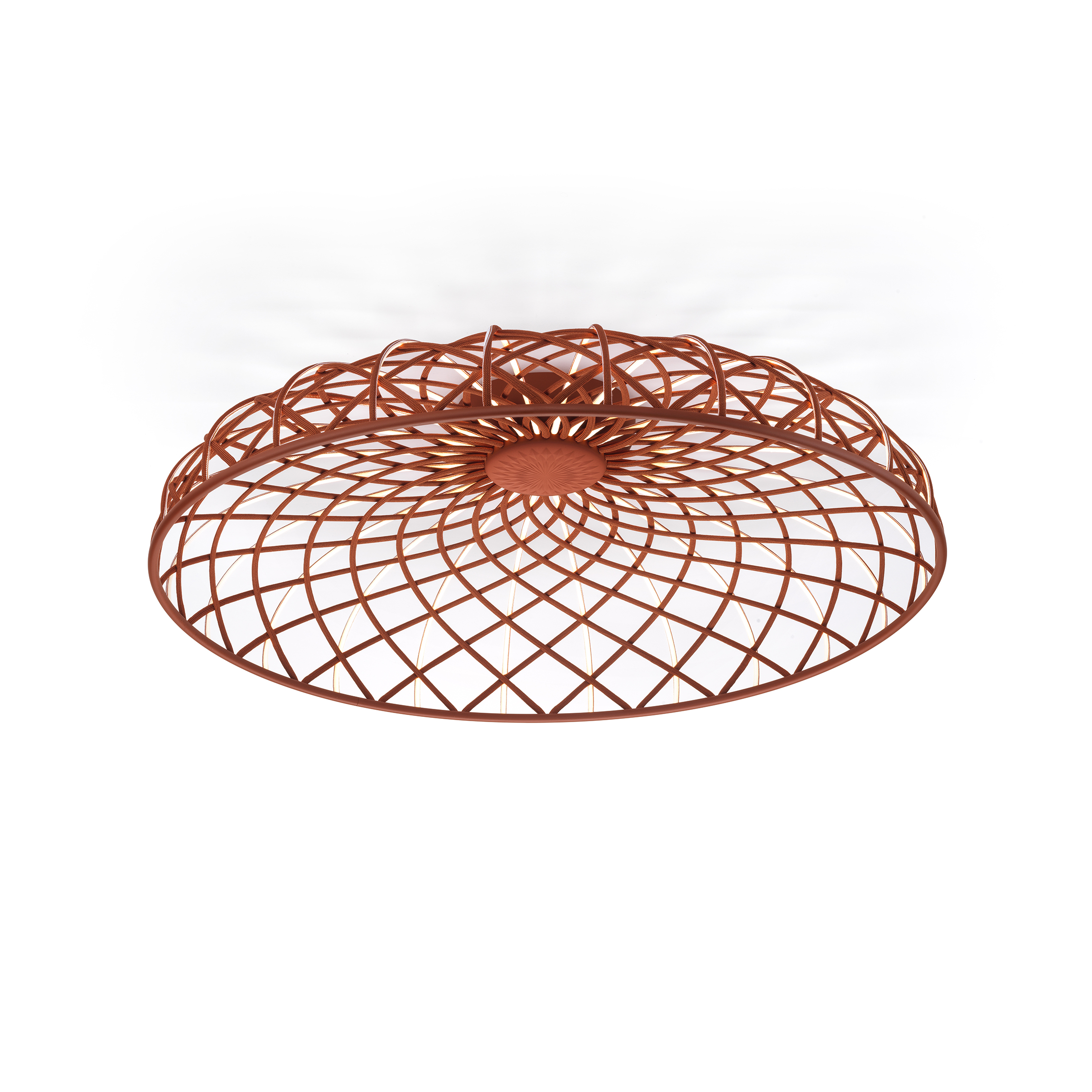

Skynest
F6393035Brick RedSkynest C
Designed by Marcel Wanders, 2022
Suspension lamp emitting diffused light. Dome structure in polyester mesh made from recycled and recyclable fabric with luminous and dark elements powered by micro-connectors. Equipped with integrated balancing system and aluminium ring for snap-fit assembly. Glue-free construction for disassembly and recycling. Integrated electronics support 0–10/1–10 V, DALI and PUSH dimming systems.
57W - 1515lm - 2700K - CRI> 90
Technical Drawing
Main specifications
EAN
8059607058015
Mounting
Ceiling
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
57
System power (W)
57
Lumen Output (lm)
1515
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmer on board
Dimming interface
Dimmer Integrated
Physical
Colour
Brick Red
Length (mm)
904
Canopy colour
Red
Canopy length/diameter (mm)
216
Canopy height (mm)
58
Net weight (kg)
3.8
Package height (mm)
320
Package width (mm)
1000
Package length (mm)
1000
Package volume (m3)
0.32
IP internal
20
Spare Parts
00. Push button and cables assembly for dimmer
RF27318
01. Skynest Brick red led arm assembly
RF34721
02. Led dimmer kit
RF34197
03. Skynest Power Supply 100W 100-277V
RF33061
04. Skynest Brick red ceiling rose cover
RF35175

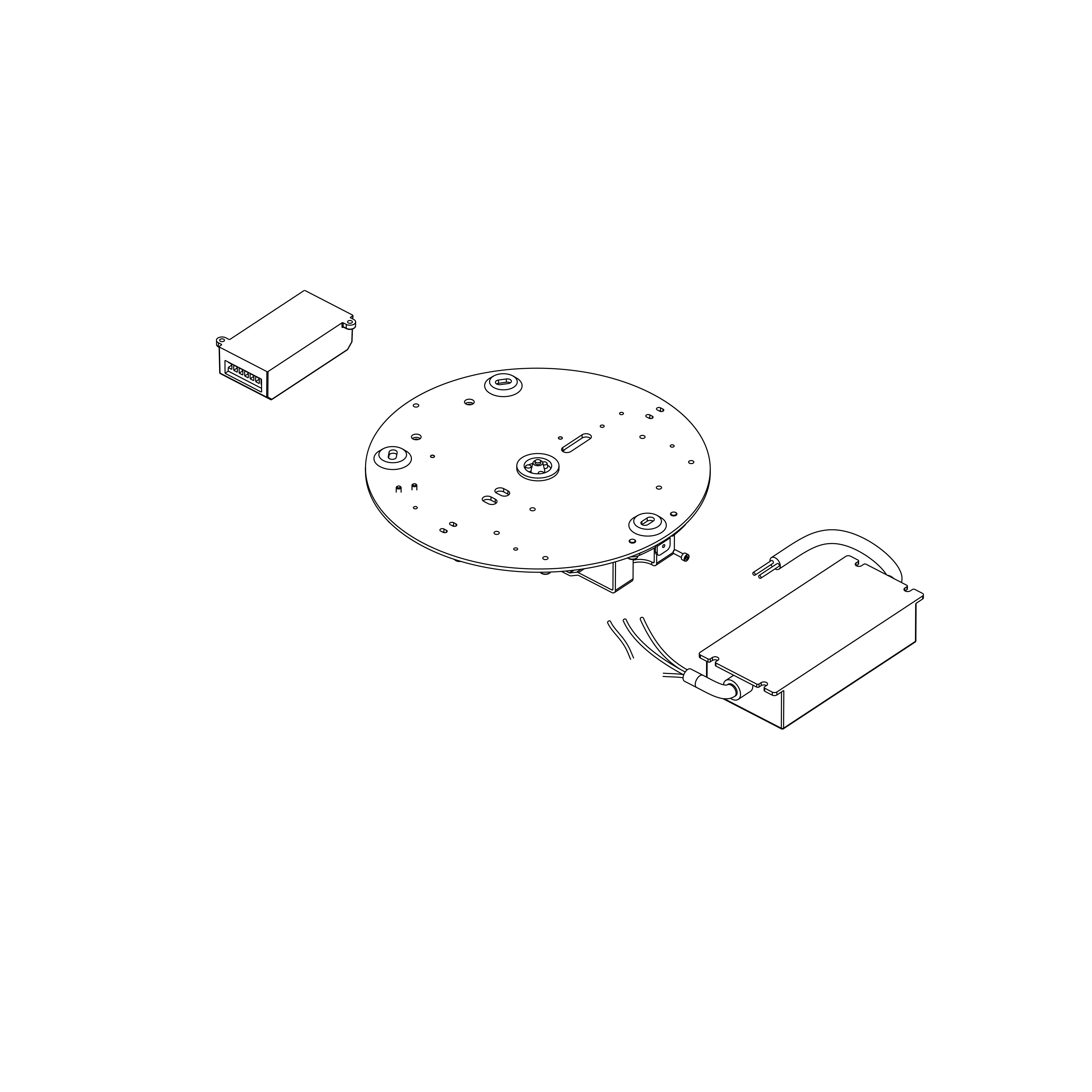

05. Skynest C - Ceiling rose assembly with ceiling attachment, power supply and dimmer
RF35162
