Skynest
F6392017 Almond

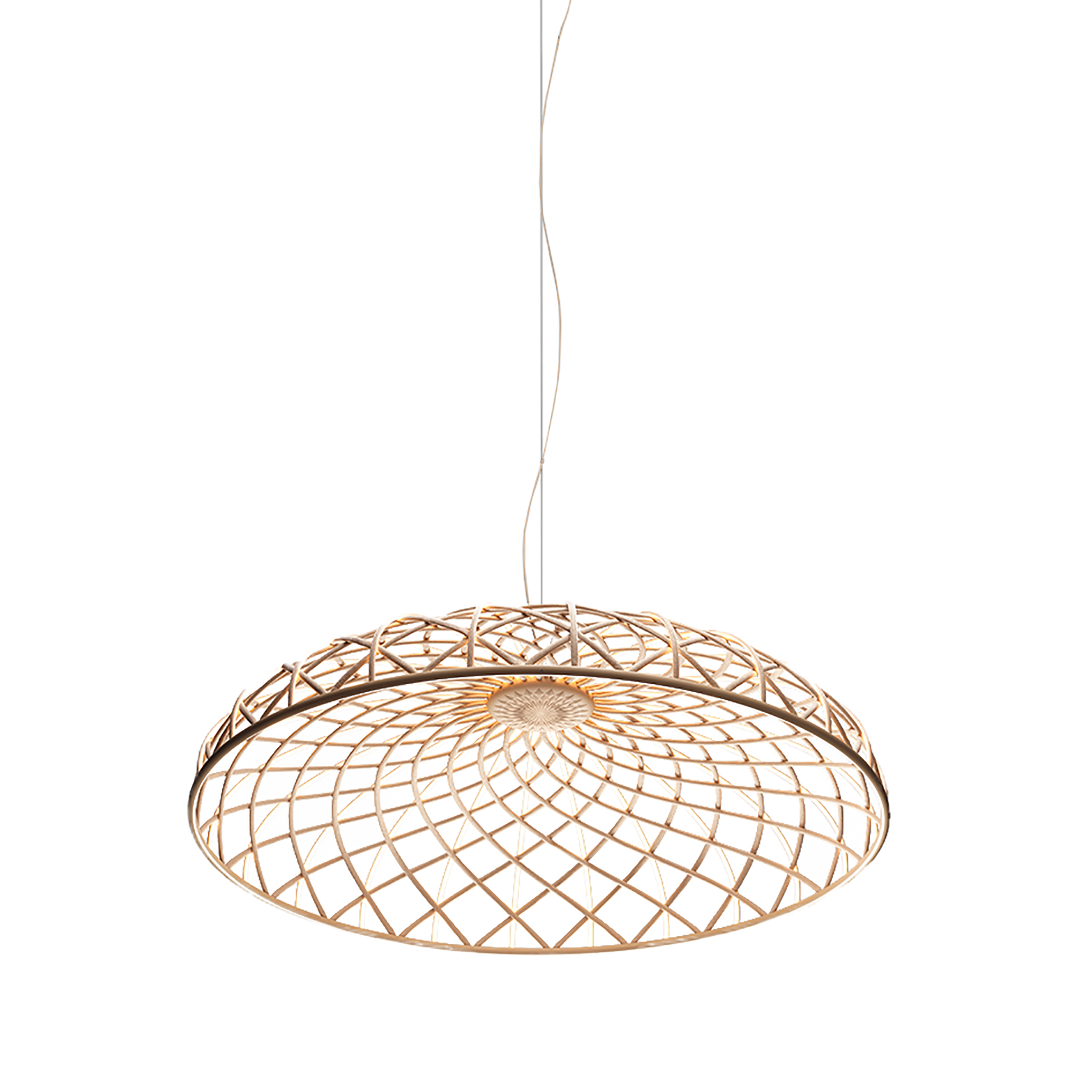

Skynest Suspension

Diffuse lighting hanging appliance. The dome is a combination of luminous and dark elements arranged into a network and formed of core structures covered with a thin interwoven colourful tubular mesh made from recycled and recyclable fabric produced from polyester. Every single luminous element is powered by special micro-connectors located at the top of the dome and is covered with a two-tone mesh, while the side facing the inside of the dome is always white in order to allow for optimal light emission from the LED module. The appliance is fitted with a built-in balancing system at the top of the dome which helps adjust its balance, making it perfectly stable. The bottom of the dome is completed by an aluminium ring that keeps the dome’s entire network structure in place through a simple snap-fit system. The product is assembled with absolutely no glue so it can be fully separated to be recycled in the future and in case of any repairs or replacements. Available lamp finishes: Blue Tourmaline, Almond, Anthracite or Brick Red. Plastic ceiling rose painted with the same finish as the lamp, fitted with built-in electronics that allow for the use of different dimmer systems: 0-10V / 1-10V / DALI / PUSH."

78W - 2655lm - 2700K - CRI> 90

Technical Drawing
Skynest-suspension-marcel_wanders-flos-spech-tech-300x263
Main specifications
EAN
8059607052143
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
78
System power (W)
78
Lumen Output (lm)
2655
Schematic light drawing
F6392017WSKYNEST-S-BEI_78W-LED
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable 0-10V, Dimmable Push, Dimmable 1-10V, Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Almond
Length (mm)
904
Cord colour
Beige
Cord length (mm)
2700
Canopy colour
Almond
Canopy length/diameter (mm)
216
Canopy height (mm)
51
Net weight (kg)
4.1
Package height (mm)
250
Package width (mm)
1000
Package length (mm)
1000
Package volume (m3)
0.25
IP internal
20
IECEE-CB
CMIM Morocco
EAC
CE
RETILAP
UKCA
CCC
Risk 0
03 - Italy
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE4 Replaceable (LED only) light source by an end-user

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F6392003-skynest-s-flos-boom
01. Assembly Led Arm for Skynest Suspension Almond
RF34719
02. Led dimmer kit
RF34197
03. Skynest Suspension Driver 100W 100-277V
RF33061
04. Skynest Suspension Rose with Riveted Magnets Almond
RF34382
