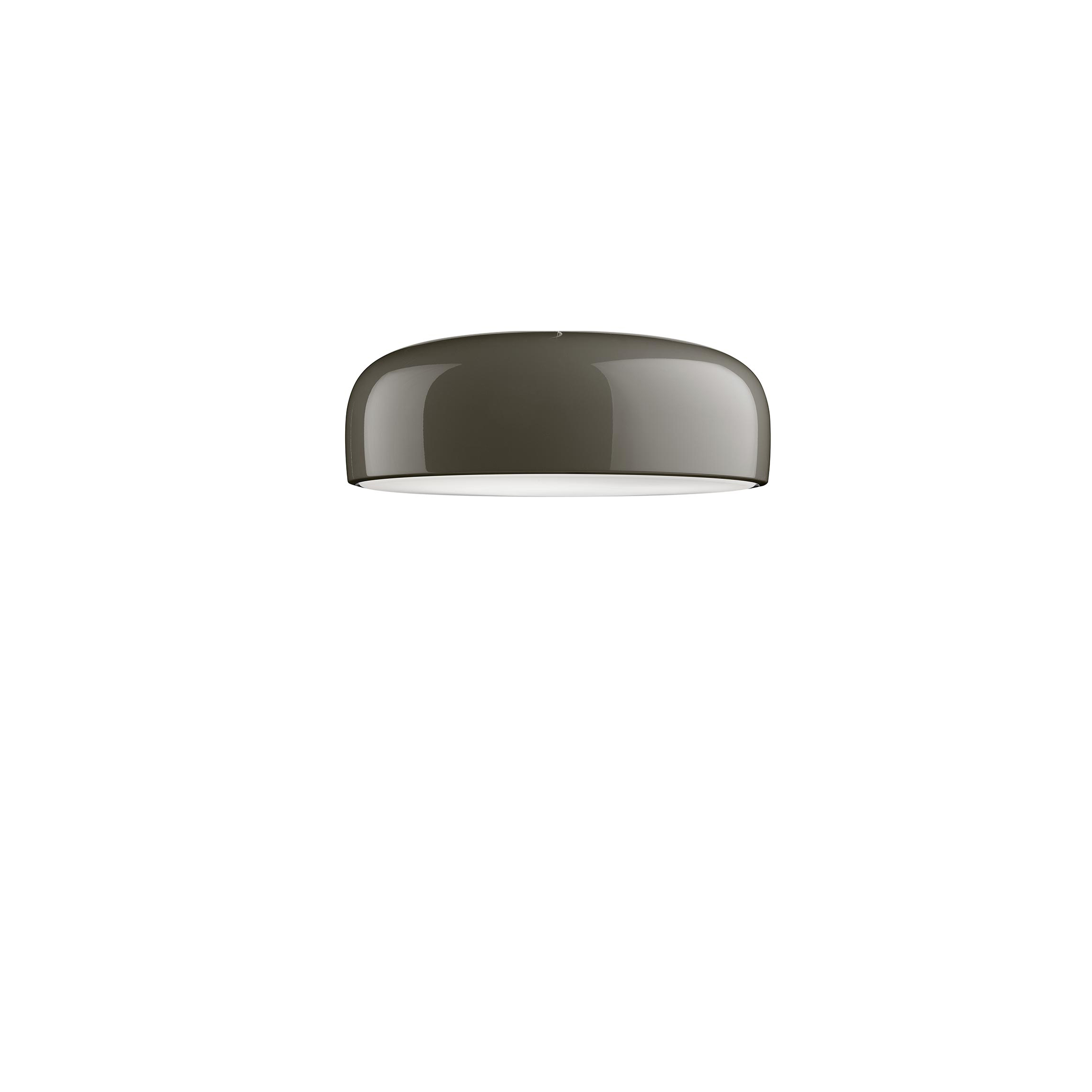

F1368021 MudSmithfield Ceiling Pro dimmable DALI
Designed by Jasper Morrison, 2009
Ceiling-mounted lamp providing direct light. Aluminium body. Available in gloss black, white, matt black, green, red or MUD. Injection-moulded opalescent methacrylate diffuser. Steel wall and ceiling attachment. Control DALI dimmable.
45W - 2791lm - 2700K - CRI> 95
Technical Drawing
Main specifications
EAN
8059607015063
Mounting
Ceiling
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
45
Lumen Output (lm)
2791
Schematic light drawing
Photometric
Light distribution
Roto symmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
200-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Mud
Length (mm)
600
Net weight (kg)
5.8
Package height (mm)
310
Package width (mm)
710
Package length (mm)
710
Package volume (m3)
0.16
IP internal
20
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
Spare Parts
01.
Smithfield Ceiling Driver 45W 450-1050mA
RF31980
02.
Methacrylate diffuser
RF19022
