Smithfield
F1366035Red

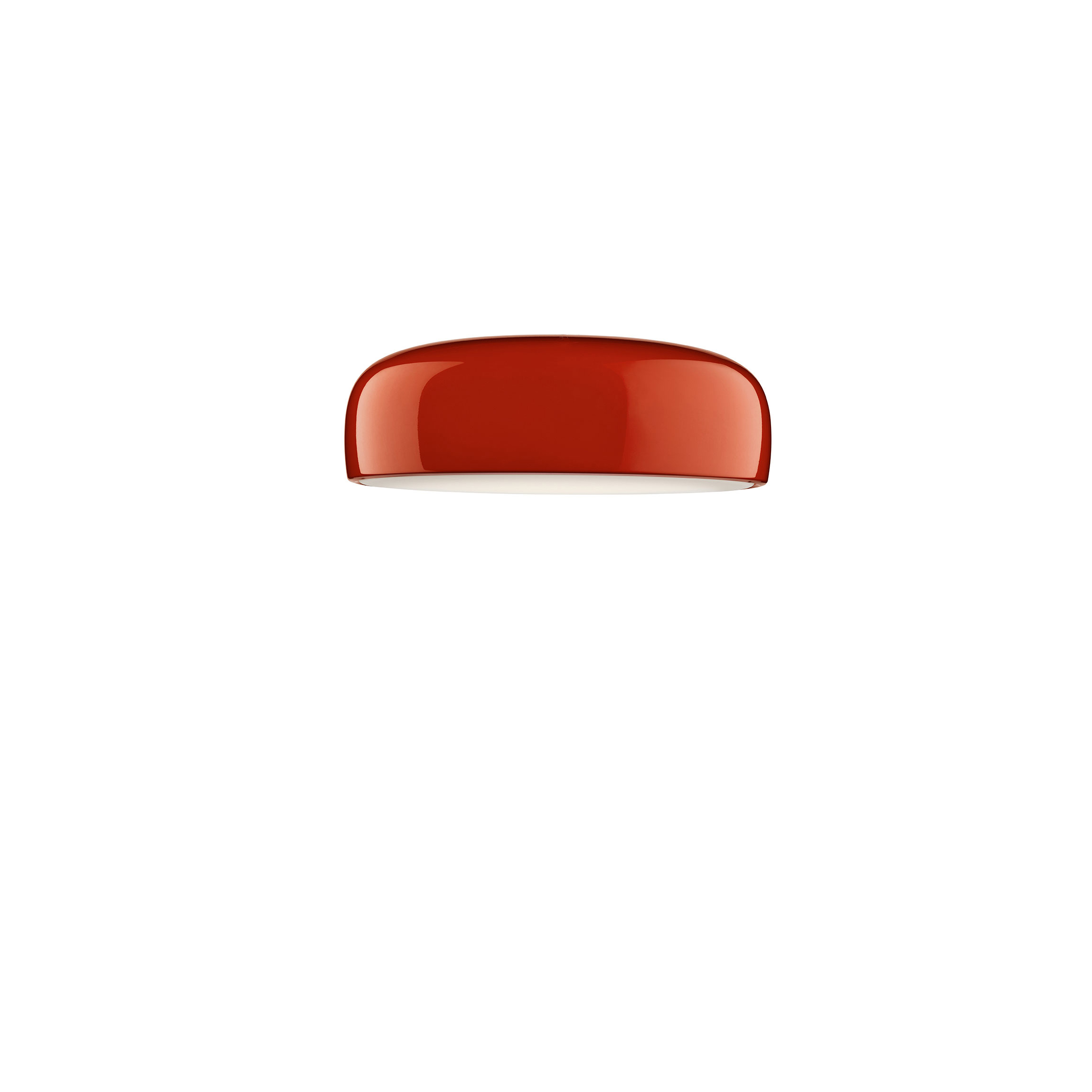

Smithfield Ceiling Pro

Ceiling-mounted lamp emitting direct light. Features an aluminium body with an injection-moulded opalescent methacrylate diffuser. Steel ceiling and wall attachment. LED module integrated available in 2700K and 3000K colour temperatures; 3500K available upon request. Dimmable through Dali or Push control options.

45W - 2791lm - 2700K - CRI> 95

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Ceiling-Smithfield
Main specifications
EAN
8059607014912
Mounting
Ceiling
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
45
System power (W)
45
Lumen Output (lm)
2791
Schematic light drawing
F13660XXWSMITHFIELD-C-PRO_45W-LED
Photometric
Lighting type
Direct
Light distribution
Roto symmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
200-240
Power supply
Integrated
Power supply type
Dimmable Push
Batteries inside
No
Physical
Colour
Red
Length (mm)
600
Net weight (kg)
5.8
Package height (mm)
310
Package width (mm)
710
Package length (mm)
710
Package volume (m3)
0.16
IP internal
20
CE
RG
BIS
CCC
EAC
CMIM
ENEC
IRAM
UKCA
IECEC
RETILAP
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2

PWRSUPRPL2

Spare Parts

F1366035-smithfield-c-pro-flos-boom
01. Smithfield C/S Power supply 45W 450-1050mA
RF31980
02. Smithfield Methacrylate diffuser
RF19022
x1
Smithfield C/S Power supply 45W 450-1050mARF31980
Thumbnail
x1
Smithfield Methacrylate diffuserRF19022
