Smithfield

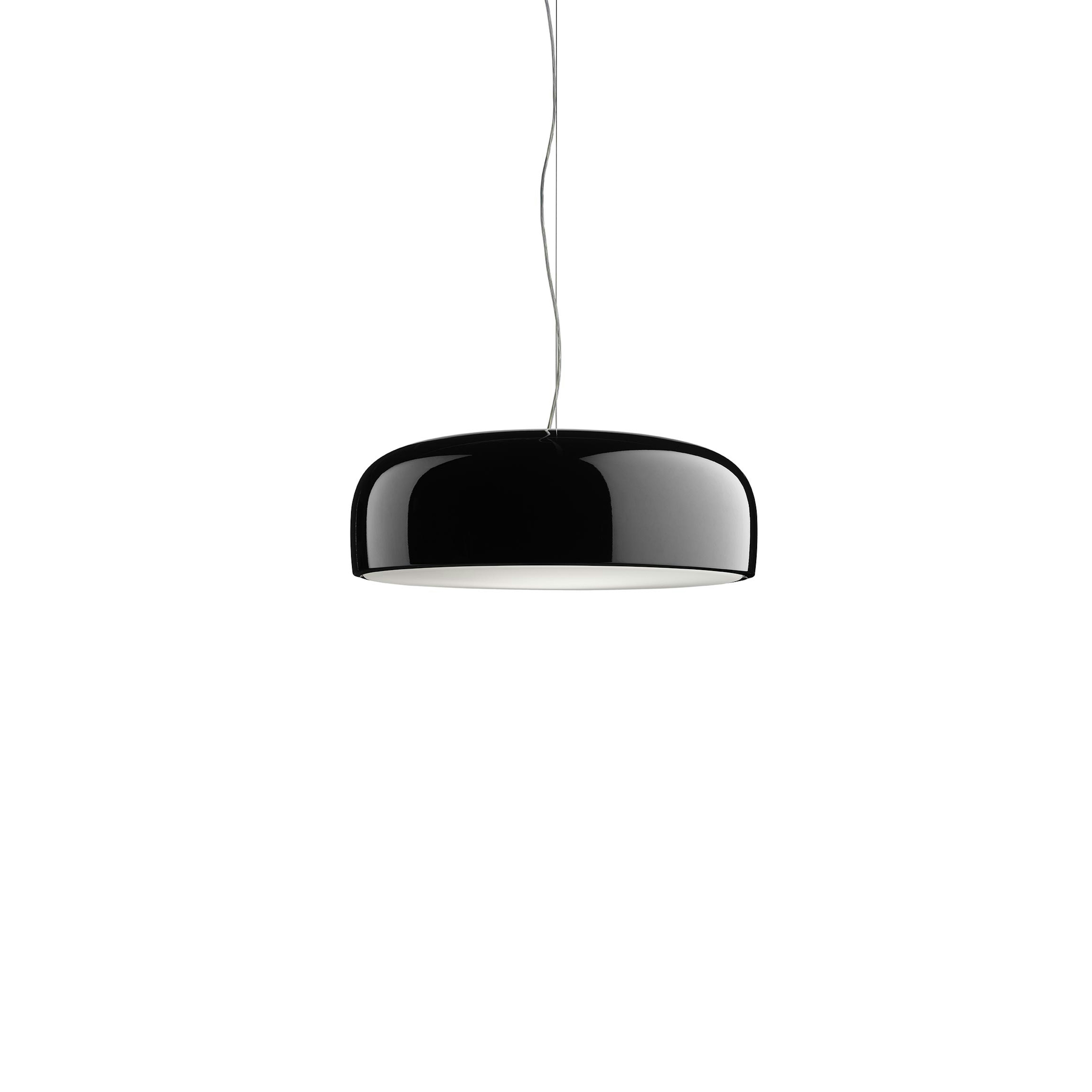

F1371030Glossy BlackSmithfield Suspension
Designed by Jasper Morrison, 2009
Suspension lamp emitting direct light. Features an aluminium body with an injection-moulded opalescent methacrylate diffuser. Steel ceiling attachment and suspension cable. Equipped with a five-pole power cable in PTFE with double insulation.
Halogen - 4 x 105W
Technical Drawing
Main specifications
EAN
8059607031346
Mounting
Suspension
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp type
A70
Lamp holders
E27
Ilcos
HSGSA
Number of lamps
4
Power (W)
105
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Roto symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Glossy Black
Length (mm)
600
Cord colour
Clear
Cord length (mm)
2700
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
4.75
Package height (mm)
310
Package width (mm)
710
Package length (mm)
710
Package volume (m3)
0.16
IP internal
20
Bulbs
Spare Parts
01. Black rose assembly
RA3690230
02. Kit of 5 or rings
RF05382
03. Smithfiled Suspension Wiring 2,7m FEP/PVC 3x0,75 Transparent
RF29907
04. 3 mt steel cable ø1,2 with 19 winded wires
RF29665
05. Smithfield Methacrylate diffuser
RF19022
